CM51-TLQDS3 (1989)

Toyota Lite/Townace Truck

Production Oct 1989 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

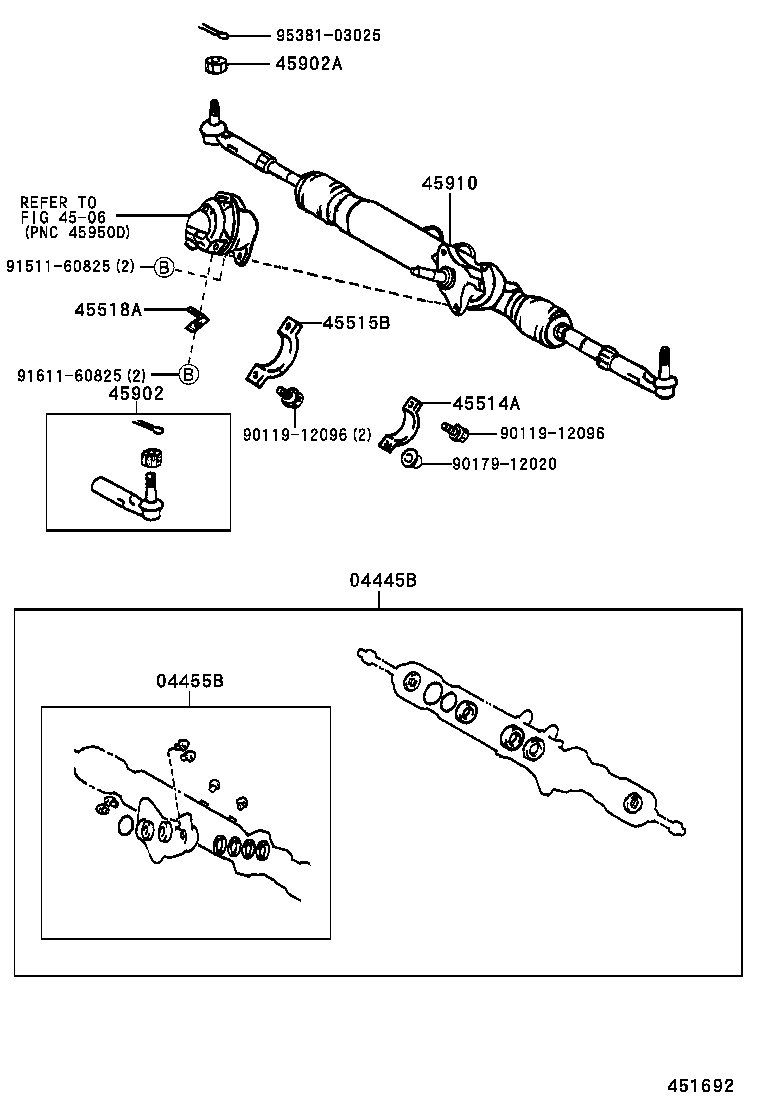

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

diagram 04445B 04455B 4506 45514A 45515B 45518A 45902 45902A 45910 9011912096 9011912096 9017912020 9151160825 9161160825 9538103025
Part # Description Qty Price
Common parts
90119-12096
90179-12020
91511-60825
91611-60825
95381-03025
Linked diagrams
4506

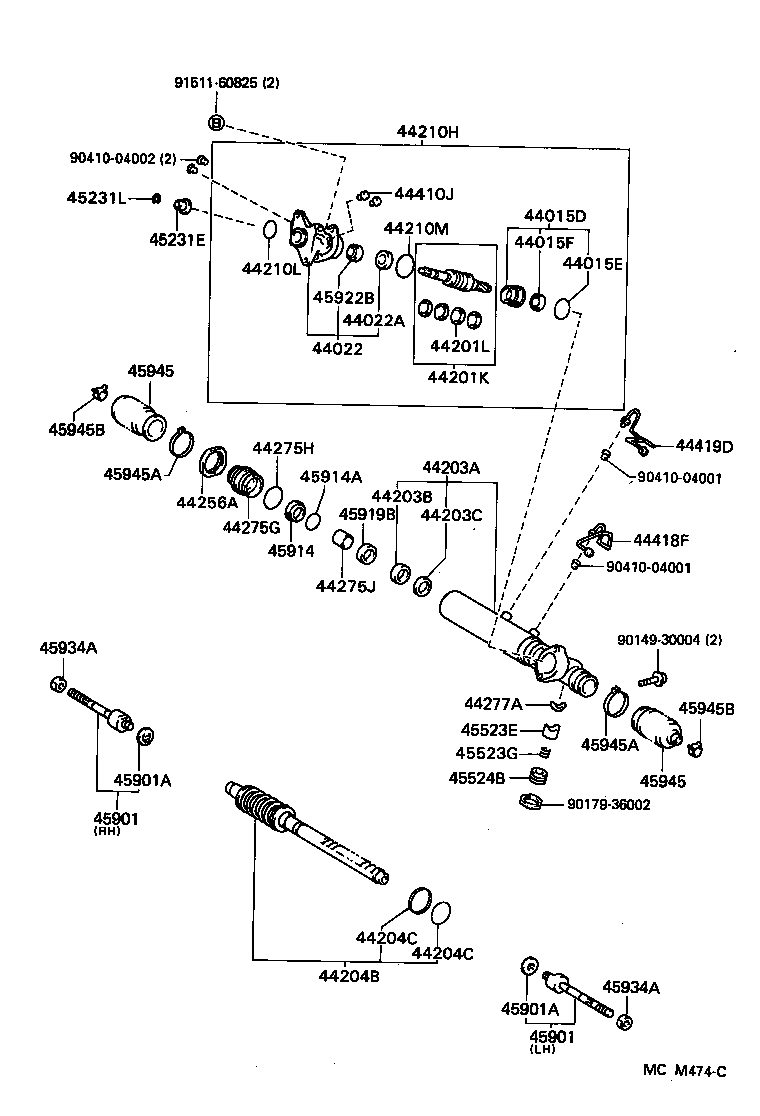

ILLUST NO. 2 OF 2(9110- )

Click highlighted areas on diagram

diagram 44015D 44015E 44015F 44022 44022A 44201K 44201L 44203A 44203B 44203C 44204B 44204C 44204C 44210H 44210L 44210M 44256A 44275G 44275H 44275J 44277A 44410J 44418F 44419D 45231E 45231L 45523E 45523G 45524B 45901 45901 45901A 45901A 45914 45914A 45919B 45922B 45934A 45934A 45945 45945 45945A 45945A 45945B 45945B 9014930004 9017936002 9041004001 9041004001 9041004002 9151160825
Part # Description Qty Price
Common parts
90149-30004
90179-36002
90410-04001
90410-04002
91511-60825
