CM51-TLQDS (1989)
Toyota Lite/Townace Truck
Production
Oct 1989
-
Jun 1999
Engine
2C
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)

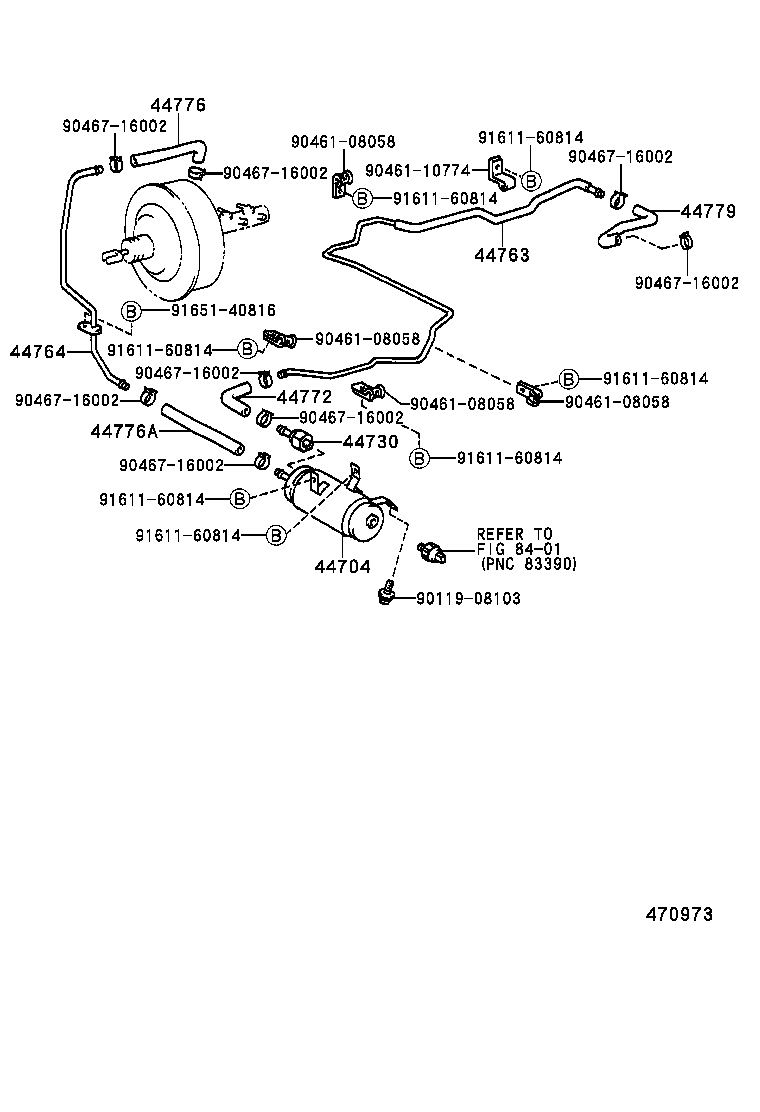

ILLUST NO. 2 OF 2(9310- )CM5#,6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-27050 |
CM5#,6# |
1 | ||
| 44704-27070 |
CM5#,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CM5#,6# |
1 | ||
| 44730-60050 |
CM5#,6# |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-27010 |
CM5#,6# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-27070 |
CM5#,6# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-27120 |
CM5#,6# |
1 | ||
| 44772-27050 |
CM5#,6# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 95446-09280 |
CM5#,6# |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-27010 |
CM5#,6# |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90461-08058 | ||||
| 90461-10774 | ||||
| 90467-16002 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

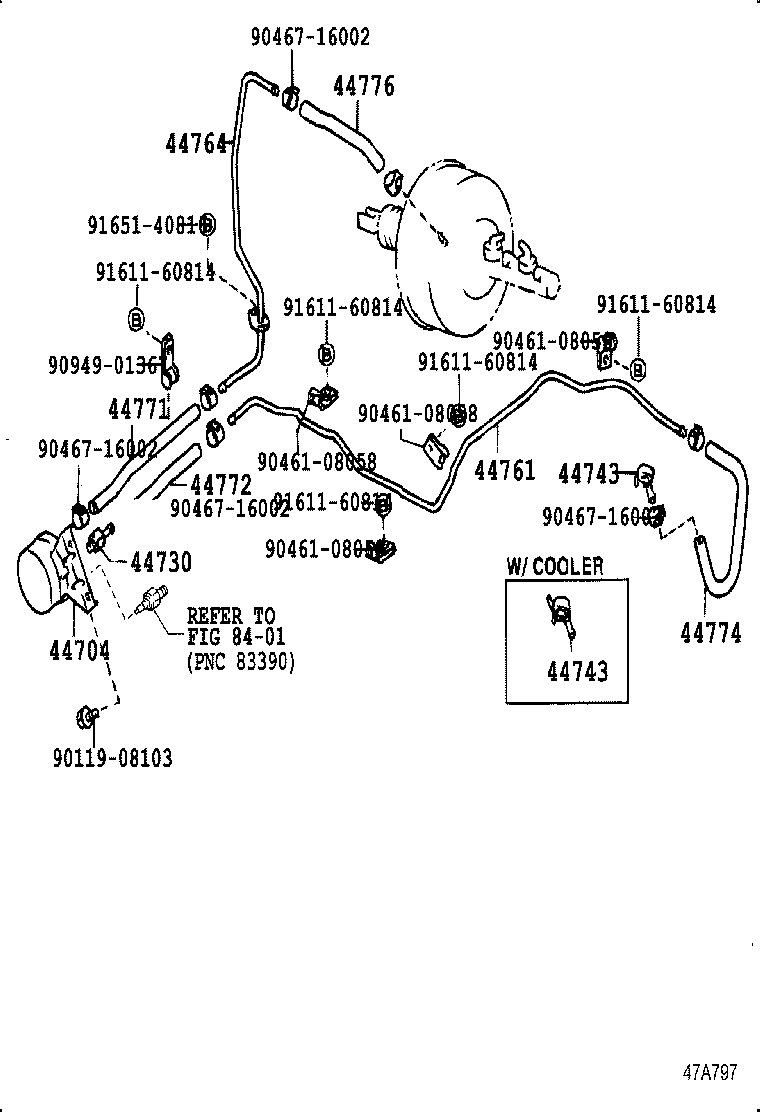

ILLUST NO. 2 OF 2(8610-9310)CM5#,6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-27050 |
CM5#,6# |
1 | ||
| 44704-27070 |
CM5#,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CM5#,6# |
1 | ||
| 44730-60050 |
CM5#,6# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09113 |
CM5#,6# ｱﾘ(ｸ-ﾗ) |
1 | ||
| 90405-09064 |
CM5#..5H |
1 | ||
| 90405-09166 |
CM5#..5H |
1 | ||
| 90405-09113 |
CM5#,6# ｱﾘ(ｸ-ﾗ) |
1 | ||
| 90405-09165 |
CM5#,6# ｱﾘ(ｸ-ﾗ) |
1 | ||
| 90405-09064 |
CM5#..5H |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09113 |
CM5#,6# ｱﾘ(ｸ-ﾗ) |
1 | ||
| 90405-09064 |
CM5#..5H |
1 | ||
| 90405-09166 |
CM5#..5H |
1 | ||
| 90405-09113 |
CM5#,6# ｱﾘ(ｸ-ﾗ) |
1 | ||
| 90405-09165 |
CM5#,6# ｱﾘ(ｸ-ﾗ) |
1 | ||
| 90405-09064 |
CM5#..5H |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-27130 |
CM5#,6# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-27070 |
CM5#,6# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27080 |
CM5#,6# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-27120 |
CM5#,6# |
1 | ||
| 44772-27050 |
CM5#,6# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-27150 |
CM5#,6# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90461-08058 | ||||
| 90467-16002 | ||||
| 90949-01367 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
