CM51-TLQDS (1989)
Toyota Lite/Townace Truck

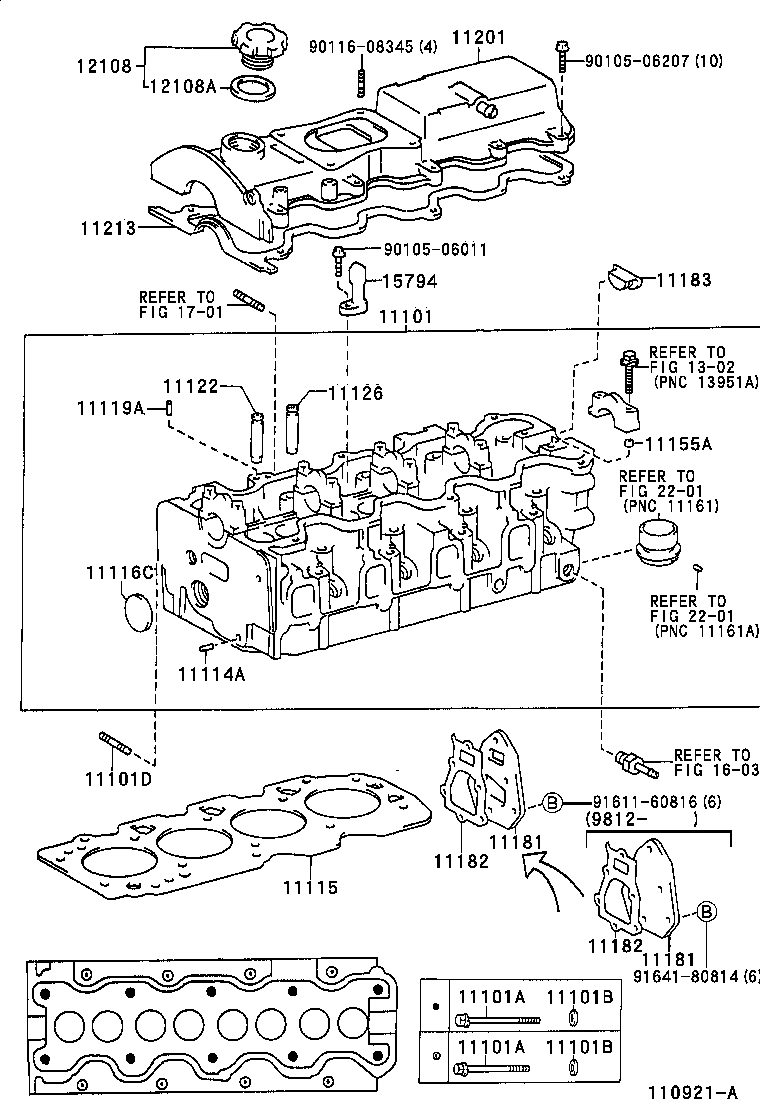

(9705- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64180 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11101-64181 |
2C..CM5#,6# |
1 | ||
| 11101-64080 |
2C..CM51,55,6# |
1 | ||
| 11101-64183 |
2C..CM5#,6# |
1 | ||
| 11101-64181 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11101-64182 |
2C..CM5#,6# |
1 | ||
| 11101-64184 |
2C..CM5#,6# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX145−53 |
10 | ||
| 90105-11019 |
1C,2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX123−53 |
8 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90105-11018 |
1C,2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX145−53 |
10 | ||
| 90105-11019 |
1C,2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX123−53 |
8 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90105-11018 |
1C,2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
1C,2C..CM5#,6# |
18 | ||
| 90201-12222 |
2C..CM65..TS;2C..CM5#,60,61 |
18 | ||
| 90201-12222 |
2C..CM5#,6# |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
1C,2C..CM5#,6# |
18 | ||
| 90201-12222 |
2C..CM65..TS;2C..CM5#,60,61 |
18 | ||
| 90201-12222 |
2C..CM5#,6# |
18 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 92122-60820 |
1C,2C..CM5#,6# |
3 | ||
| 92122-60820 |
2C..CM65..TS;2C..CM5#,60,61 |
3 | ||
| 92122-60820 |
2C..CM5#,6# |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2C..CM65..TS;2C..CM5#,60,61 長さ=11,外径=6 |
1 | ||
| 90250-06068 |
1C,2C..CM5#,6# 長さ=11,外径=6 |
1 | ||
| 90250-06068 |
2C..CM5#,6# 長さ=11,外径=6 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64122 |
2C..CM5#,6# |
1 | ||
| 11115-64170B0 |
2C..CM5#,6# MARK B |
1 | ||
| 11115-64170A0 |
2C..CM5#,6# MARK A |
1 | ||
| 11115-64121 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11115-64100 |
2C..CM51,55,6# |
1 | ||
| 11115-64121 |
2C..CM5#,6# |
1 | ||
| 11115-6419001 |
2C..CM5#,6# MARK 1 |
1 | ||
| 11115-64122 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11115-64120 |
2C..CM5#,6# |
1 | ||
| 11115-6419003 |
2C..CM5#,6# MARK 3 |
1 | ||
| 11115-64170C0 |
2C..CM5#,6# MARK C |
1 | ||
| 11115-6419005 |
2C..CM5#,6# MARK 5 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
2C..CM5#,6# |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2C..CM5#,6# 長さ=16,外径=6 |
2 | ||
| 90250-06068 |
2C..CM65..TS;2C..CM5#,60,61 長さ=11,外径=6 |
2 | ||
| 90250-06068 |
1C,2C..CM5#,6# 長さ=11,外径=6 |
2 | ||
| 90250-06013 |
2C..CM65..TS;2C..CM5#,60,61 長さ=16,外径=6 |
2 | ||
| 90250-06068 |
2C..CM5#,6# 長さ=11,外径=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
1C,2C..CM5#,6# O/S 0.05 |
4 | ||
| 11123-64010 |
2C..CM65..TS;2C..CM5#,60,61 O/S 0.05 |
4 | ||
| 11123-64010 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11122-64010 |
2C..CM5#,6# STD |
4 | ||
| 11122-64010 |
1C,2C..CM5#,6# STD |
4 | ||
| 11122-64010 |
2C..CM65..TS;2C..CM5#,60,61 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-64010 |
1C,2C..CM5#,6# STD |
4 | ||
| 11126-64010 |
2C..CM65..TS;2C..CM5#,60,61 STD |
4 | ||
| 11126-64010 |
2C..CM5#,6# STD |
4 | ||
| 11127-64010 |
1C,2C..CM5#,6# O/S 0.05 |
4 | ||
| 11127-64010 |
2C..CM65..TS;2C..CM5#,60,61 O/S 0.05 |
4 | ||
| 11127-64010 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11127-64030 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11126-64030 |
2C..CM5#,6# STD |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2C..CM65..TS;2C..CM5#,60,61 |
10 | ||
| 90253-11021 |
1C,2C..CM5#,6# |
10 | ||
| 90253-11021 |
2C..CM5#,6# |
10 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11181-64011 |
2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM5#,6# |
1 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11181-64011 |
2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM5#,6# |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2C..CM5#,6# |
1 | ||
| 11182-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11182-64020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11182-64021 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2C..CM5#,6# |
1 | ||
| 11182-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11182-64020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11182-64021 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11183-64010 |
2C..CM5#,6# |
1 | ||
| 11183-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64060 |
1C,2C..CM5#,6# |
1 | ||
| 11201-64120 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201-64121 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201-64121 |
2C..CM5#,6# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64040 |
2C..CM5#,6# |
1 | ||
| 11213-64020 |
1C,2C..CM5#,6# |
1 | ||
| 11213-64060 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11213-64061 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11213-64061 |
2C..CM5#,6# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 12180-13030 |
1C,2C..CM5#,6# |
1 | ||
| 12180-13030 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 12180-55010 |
2C..CM5#,6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90430-37140 |
1C,2C..CM5#,6# |
1 | ||
| 90430-37140 |
2C..CM5#,6# |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 15794-64011 |
2C..CM5#,6# |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| 91611-60816 | ||||
| 91641-80814 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 1701 | ||||
| 2201 | ||||

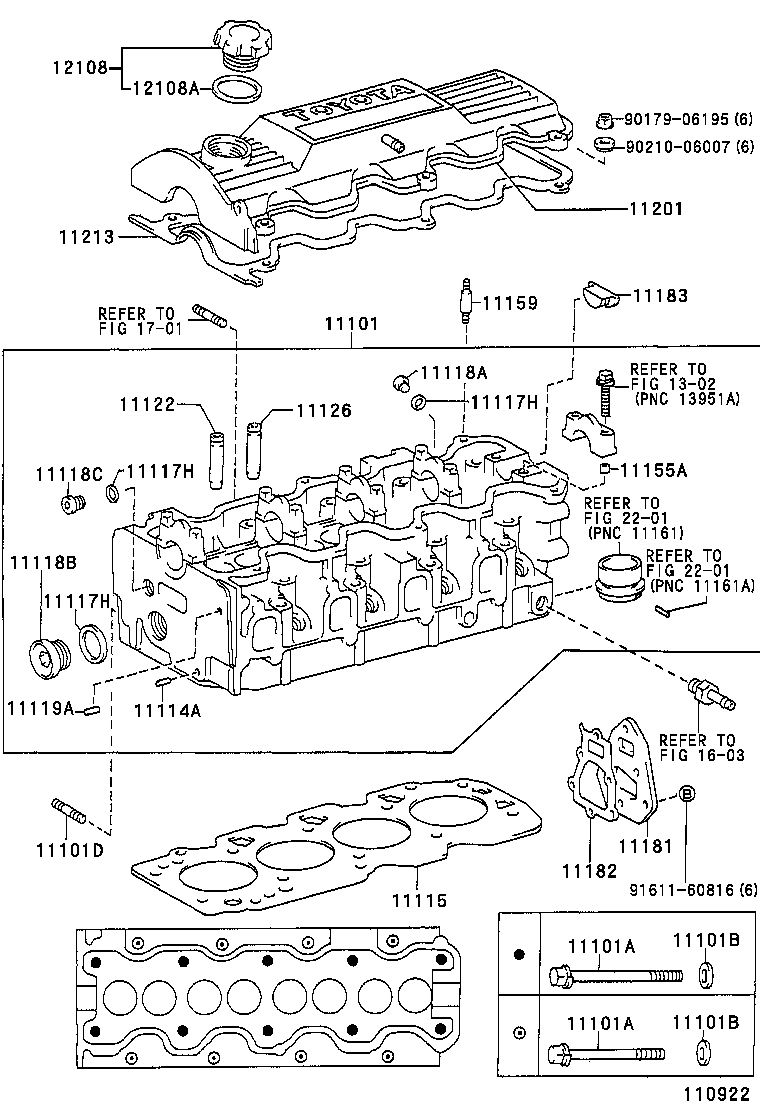

(8610-9310)1C,2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64180 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11101-64181 |
2C..CM5#,6# |
1 | ||
| 11101-64080 |
2C..CM51,55,6# |
1 | ||
| 11101-64183 |
2C..CM5#,6# |
1 | ||
| 11101-64181 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11101-64182 |
2C..CM5#,6# |
1 | ||
| 11101-64184 |
2C..CM5#,6# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX145−53 |
10 | ||
| 90105-11019 |
1C,2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX123−53 |
8 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90105-11018 |
1C,2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX145−53 |
10 | ||
| 90105-11019 |
1C,2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX123−53 |
8 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90105-11018 |
1C,2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
1C,2C..CM5#,6# |
18 | ||
| 90201-12222 |
2C..CM65..TS;2C..CM5#,60,61 |
18 | ||
| 90201-12222 |
2C..CM5#,6# |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
1C,2C..CM5#,6# |
18 | ||
| 90201-12222 |
2C..CM65..TS;2C..CM5#,60,61 |
18 | ||
| 90201-12222 |
2C..CM5#,6# |
18 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 92122-60820 |
1C,2C..CM5#,6# |
3 | ||
| 92122-60820 |
2C..CM65..TS;2C..CM5#,60,61 |
3 | ||
| 92122-60820 |
2C..CM5#,6# |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2C..CM65..TS;2C..CM5#,60,61 長さ=11,外径=6 |
1 | ||
| 90250-06068 |
1C,2C..CM5#,6# 長さ=11,外径=6 |
1 | ||
| 90250-06068 |
2C..CM5#,6# 長さ=11,外径=6 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64122 |
2C..CM5#,6# |
1 | ||
| 11115-64170B0 |
2C..CM5#,6# MARK B |
1 | ||
| 11115-64170A0 |
2C..CM5#,6# MARK A |
1 | ||
| 11115-64121 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11115-64100 |
2C..CM51,55,6# |
1 | ||
| 11115-64121 |
2C..CM5#,6# |
1 | ||
| 11115-6419001 |
2C..CM5#,6# MARK 1 |
1 | ||
| 11115-64122 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11115-64120 |
2C..CM5#,6# |
1 | ||
| 11115-6419003 |
2C..CM5#,6# MARK 3 |
1 | ||
| 11115-64170C0 |
2C..CM5#,6# MARK C |
1 | ||
| 11115-6419005 |
2C..CM5#,6# MARK 5 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
1C,2C..CM5#,6# PNC 11118B |
1 | ||
| 90430-12010 |
1C,2C..CM5#,6# PNC 11118C |
2 | ||
| 90430-10204 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# PNC 11118A |
4 | ||
| 90430-12010 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-12010 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-33133 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118C |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
1C,2C..CM5#,6# PNC 11118B |
1 | ||
| 90430-12010 |
1C,2C..CM5#,6# PNC 11118C |
2 | ||
| 90430-10204 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# PNC 11118A |
4 | ||
| 90430-12010 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-12010 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-33133 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118C |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
1C,2C..CM5#,6# PNC 11118B |
1 | ||
| 90430-12010 |
1C,2C..CM5#,6# PNC 11118C |
2 | ||
| 90430-10204 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# PNC 11118A |
4 | ||
| 90430-12010 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-12010 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-33133 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118C |
2 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-10005 |
1C,2C..CM5#,6# |
4 | ||
| 90341-10005 |
2C..CM65..TS;2C..CM5#,60,61 |
4 | ||
| 90341-10005 |
2C..CM5#,6# |
4 | ||
| 11118B - PLUG, STRAIGHT, NO.2 | ||||
| 90341-32070 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90341-32070 |
2C..CM5#,6# |
1 | ||
| 90341-32070 |
1C,2C..CM5#,6# |
1 | ||
| 11118C - PLUG, STRAIGHT, NO.3 | ||||
| 90341-12013 |
2C..CM5#,6# |
2 | ||
| 90341-12013 |
1C,2C..CM5#,6# |
2 | ||
| 90341-12013 |
2C..CM65..TS;2C..CM5#,60,61 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2C..CM5#,6# 長さ=16,外径=6 |
2 | ||
| 90250-06068 |
2C..CM65..TS;2C..CM5#,60,61 長さ=11,外径=6 |
2 | ||
| 90250-06068 |
1C,2C..CM5#,6# 長さ=11,外径=6 |
2 | ||
| 90250-06013 |
2C..CM65..TS;2C..CM5#,60,61 長さ=16,外径=6 |
2 | ||
| 90250-06068 |
2C..CM5#,6# 長さ=11,外径=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
1C,2C..CM5#,6# O/S 0.05 |
4 | ||
| 11123-64010 |
2C..CM65..TS;2C..CM5#,60,61 O/S 0.05 |
4 | ||
| 11123-64010 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11122-64010 |
2C..CM5#,6# STD |
4 | ||
| 11122-64010 |
1C,2C..CM5#,6# STD |
4 | ||
| 11122-64010 |
2C..CM65..TS;2C..CM5#,60,61 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-64010 |
1C,2C..CM5#,6# STD |
4 | ||
| 11126-64010 |
2C..CM65..TS;2C..CM5#,60,61 STD |
4 | ||
| 11126-64010 |
2C..CM5#,6# STD |
4 | ||
| 11127-64010 |
1C,2C..CM5#,6# O/S 0.05 |
4 | ||
| 11127-64010 |
2C..CM65..TS;2C..CM5#,60,61 O/S 0.05 |
4 | ||
| 11127-64010 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11127-64030 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11126-64030 |
2C..CM5#,6# STD |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2C..CM65..TS;2C..CM5#,60,61 |
10 | ||
| 90253-11021 |
1C,2C..CM5#,6# |
10 | ||
| 90253-11021 |
2C..CM5#,6# |
10 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-06023 |
1C,2C..CM5#,6# |
6 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11181-64011 |
2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM5#,6# |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2C..CM5#,6# |
1 | ||
| 11182-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11182-64020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11182-64021 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11183-64010 |
2C..CM5#,6# |
1 | ||
| 11183-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64060 |
1C,2C..CM5#,6# |
1 | ||
| 11201-64120 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201-64121 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201-64121 |
2C..CM5#,6# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64040 |
2C..CM5#,6# |
1 | ||
| 11213-64020 |
1C,2C..CM5#,6# |
1 | ||
| 11213-64060 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11213-64061 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11213-64061 |
2C..CM5#,6# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 12180-13030 |
1C,2C..CM5#,6# |
1 | ||
| 12180-13030 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 12180-55010 |
2C..CM5#,6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90430-37140 |
1C,2C..CM5#,6# |
1 | ||
| 90430-37140 |
2C..CM5#,6# |
1 | ||
| Common parts | ||||
| 90179-06195 | ||||
| 90210-06007 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 1701 | ||||
| 2201 | ||||
(9310-9705)2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-64180 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11101-64181 |
2C..CM5#,6# |
1 | ||
| 11101-64080 |
2C..CM51,55,6# |
1 | ||
| 11101-64183 |
2C..CM5#,6# |
1 | ||
| 11101-64181 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11101-64182 |
2C..CM5#,6# |
1 | ||
| 11101-64184 |
2C..CM5#,6# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX145−53 |
10 | ||
| 90105-11019 |
1C,2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX123−53 |
8 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90105-11018 |
1C,2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX145−53 |
10 | ||
| 90105-11019 |
1C,2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 90910-02097 |
2C..CM65..TS;2C..CM5#,60,61 *11−1.25PX123−53 |
8 | ||
| 90910-02097 |
2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90105-11018 |
1C,2C..CM5#,6# *11−1.25PX123−53 |
8 | ||
| 90910-02099 |
2C..CM5#,6# *11−1.25PX145−53 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
1C,2C..CM5#,6# |
18 | ||
| 90201-12222 |
2C..CM65..TS;2C..CM5#,60,61 |
18 | ||
| 90201-12222 |
2C..CM5#,6# |
18 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12222 |
1C,2C..CM5#,6# |
18 | ||
| 90201-12222 |
2C..CM65..TS;2C..CM5#,60,61 |
18 | ||
| 90201-12222 |
2C..CM5#,6# |
18 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 92122-60820 |
1C,2C..CM5#,6# |
3 | ||
| 92122-60820 |
2C..CM65..TS;2C..CM5#,60,61 |
3 | ||
| 92122-60820 |
2C..CM5#,6# |
3 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06068 |
2C..CM65..TS;2C..CM5#,60,61 長さ=11,外径=6 |
1 | ||
| 90250-06068 |
1C,2C..CM5#,6# 長さ=11,外径=6 |
1 | ||
| 90250-06068 |
2C..CM5#,6# 長さ=11,外径=6 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-64122 |
2C..CM5#,6# |
1 | ||
| 11115-64170B0 |
2C..CM5#,6# MARK B |
1 | ||
| 11115-64170A0 |
2C..CM5#,6# MARK A |
1 | ||
| 11115-64121 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11115-64100 |
2C..CM51,55,6# |
1 | ||
| 11115-64121 |
2C..CM5#,6# |
1 | ||
| 11115-6419001 |
2C..CM5#,6# MARK 1 |
1 | ||
| 11115-64122 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11115-64120 |
2C..CM5#,6# |
1 | ||
| 11115-6419003 |
2C..CM5#,6# MARK 3 |
1 | ||
| 11115-64170C0 |
2C..CM5#,6# MARK C |
1 | ||
| 11115-6419005 |
2C..CM5#,6# MARK 5 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
1C,2C..CM5#,6# PNC 11118B |
1 | ||
| 90430-12010 |
1C,2C..CM5#,6# PNC 11118C |
2 | ||
| 90430-10204 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# PNC 11118A |
4 | ||
| 90430-12010 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-12010 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-33133 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118C |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
1C,2C..CM5#,6# PNC 11118B |
1 | ||
| 90430-12010 |
1C,2C..CM5#,6# PNC 11118C |
2 | ||
| 90430-10204 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# PNC 11118A |
4 | ||
| 90430-12010 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-12010 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-33133 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118C |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-33133 |
1C,2C..CM5#,6# PNC 11118B |
1 | ||
| 90430-12010 |
1C,2C..CM5#,6# PNC 11118C |
2 | ||
| 90430-10204 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-10204 |
1C,2C..CM5#,6# PNC 11118A |
4 | ||
| 90430-12010 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-12010 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118C |
2 | ||
| 90430-10204 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118A |
4 | ||
| 90430-33133 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-33133 |
1C,2C..CM5#,6# 品名ｺｰﾄﾞ 11118B |
1 | ||
| 90430-12010 |
2C..CM65..TS;2C..CM5#,60,61 品名ｺｰﾄﾞ 11118C |
2 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-10005 |
1C,2C..CM5#,6# |
4 | ||
| 90341-10005 |
2C..CM65..TS;2C..CM5#,60,61 |
4 | ||
| 90341-10005 |
2C..CM5#,6# |
4 | ||
| 11118B - PLUG, STRAIGHT, NO.2 | ||||
| 90341-32070 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90341-32070 |
2C..CM5#,6# |
1 | ||
| 90341-32070 |
1C,2C..CM5#,6# |
1 | ||
| 11118C - PLUG, STRAIGHT, NO.3 | ||||
| 90341-12013 |
2C..CM5#,6# |
2 | ||
| 90341-12013 |
1C,2C..CM5#,6# |
2 | ||
| 90341-12013 |
2C..CM65..TS;2C..CM5#,60,61 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06013 |
2C..CM5#,6# 長さ=16,外径=6 |
2 | ||
| 90250-06068 |
2C..CM65..TS;2C..CM5#,60,61 長さ=11,外径=6 |
2 | ||
| 90250-06068 |
1C,2C..CM5#,6# 長さ=11,外径=6 |
2 | ||
| 90250-06013 |
2C..CM65..TS;2C..CM5#,60,61 長さ=16,外径=6 |
2 | ||
| 90250-06068 |
2C..CM5#,6# 長さ=11,外径=6 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-64010 |
1C,2C..CM5#,6# O/S 0.05 |
4 | ||
| 11123-64010 |
2C..CM65..TS;2C..CM5#,60,61 O/S 0.05 |
4 | ||
| 11123-64010 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11122-64010 |
2C..CM5#,6# STD |
4 | ||
| 11122-64010 |
1C,2C..CM5#,6# STD |
4 | ||
| 11122-64010 |
2C..CM65..TS;2C..CM5#,60,61 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-64010 |
1C,2C..CM5#,6# STD |
4 | ||
| 11126-64010 |
2C..CM65..TS;2C..CM5#,60,61 STD |
4 | ||
| 11126-64010 |
2C..CM5#,6# STD |
4 | ||
| 11127-64010 |
1C,2C..CM5#,6# O/S 0.05 |
4 | ||
| 11127-64010 |
2C..CM65..TS;2C..CM5#,60,61 O/S 0.05 |
4 | ||
| 11127-64010 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11127-64030 |
2C..CM5#,6# O/S 0.05 |
4 | ||
| 11126-64030 |
2C..CM5#,6# STD |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2C..CM65..TS;2C..CM5#,60,61 |
10 | ||
| 90253-11021 |
1C,2C..CM5#,6# |
10 | ||
| 90253-11021 |
2C..CM5#,6# |
10 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11181-64011 |
2C..CM5#,6# |
1 | ||
| 11181-64010 |
2C..CM5#,6# |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2C..CM5#,6# |
1 | ||
| 11182-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11182-64020 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11182-64021 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-64010 |
1C,2C..CM5#,6# |
1 | ||
| 11183-64010 |
2C..CM5#,6# |
1 | ||
| 11183-64010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-64060 |
1C,2C..CM5#,6# |
1 | ||
| 11201-64120 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201-64121 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11201-64121 |
2C..CM5#,6# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-64040 |
2C..CM5#,6# |
1 | ||
| 11213-64020 |
1C,2C..CM5#,6# |
1 | ||
| 11213-64060 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11213-64061 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 11213-64061 |
2C..CM5#,6# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 12180-13030 |
1C,2C..CM5#,6# |
1 | ||
| 12180-13030 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 12180-55010 |
2C..CM5#,6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 90430-37140 |
1C,2C..CM5#,6# |
1 | ||
| 90430-37140 |
2C..CM5#,6# |
1 | ||
| 15794 - NOZZLE, CYLINDER HEAD OIL | ||||
| 15794-64011 |
2C..CM65..TS;2C..CM5#,60,61 |
1 | ||
| 15794-64011 |
2C..CM5#,6# |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06207 | ||||
| 90116-08345 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 1701 | ||||
| 2201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
