CM51-TBSDS3 (1986)
Toyota Lite/Townace Truck

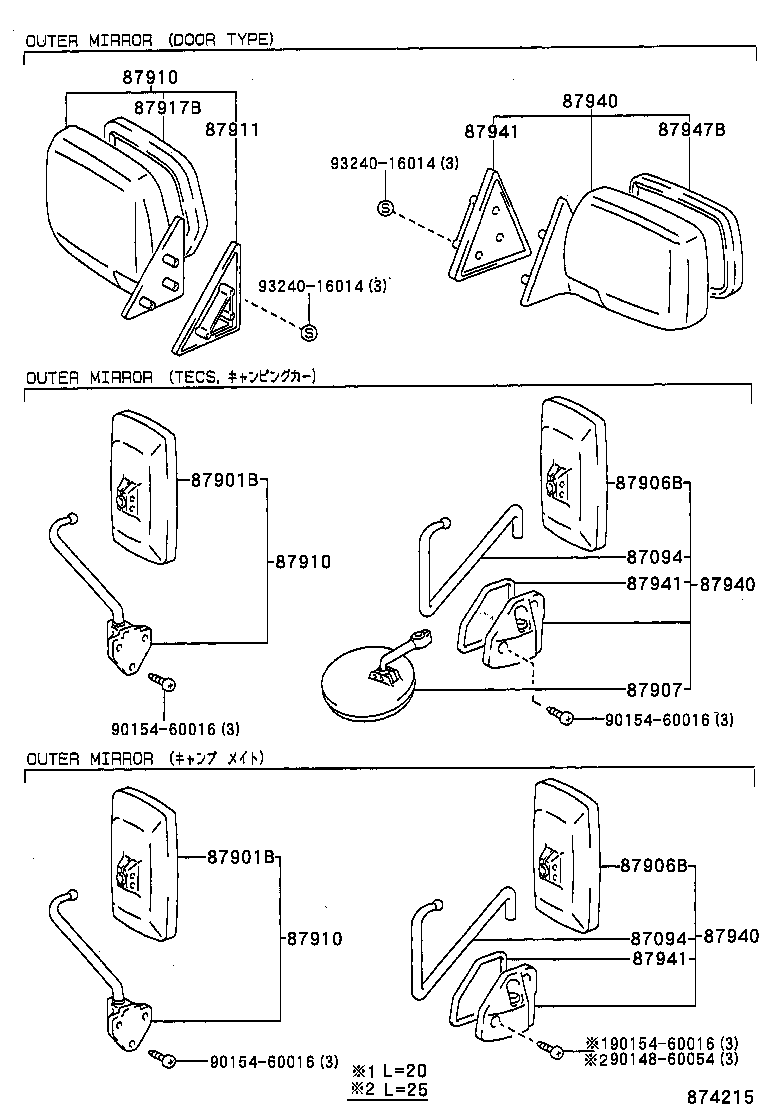

ILLUST NO. 2 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95707 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-95707 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95A00 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95A00 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87094-95703 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87094-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87094-95703 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87901-95A00 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87094-95703 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87094-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87094-95703 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87901-95A00 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J06 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95712 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87910-95712 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87910-95724 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87910-95712 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95712 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87910-95712 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87910-95724 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87910-95712 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95712 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87910-95712 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87910-95724 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87910-95712 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87959-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87959-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87959-95701 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 87959-95701 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95723 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87940-95731 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87940-95723 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87940-95723 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95723 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87940-95731 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87940-95723 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87940-95723 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95723 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87940-95731 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87940-95723 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87940-95723 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| Common parts | ||||
| 90148-60054 | ||||
| 90154-60016 | ||||
| 93240-16014 | ||||

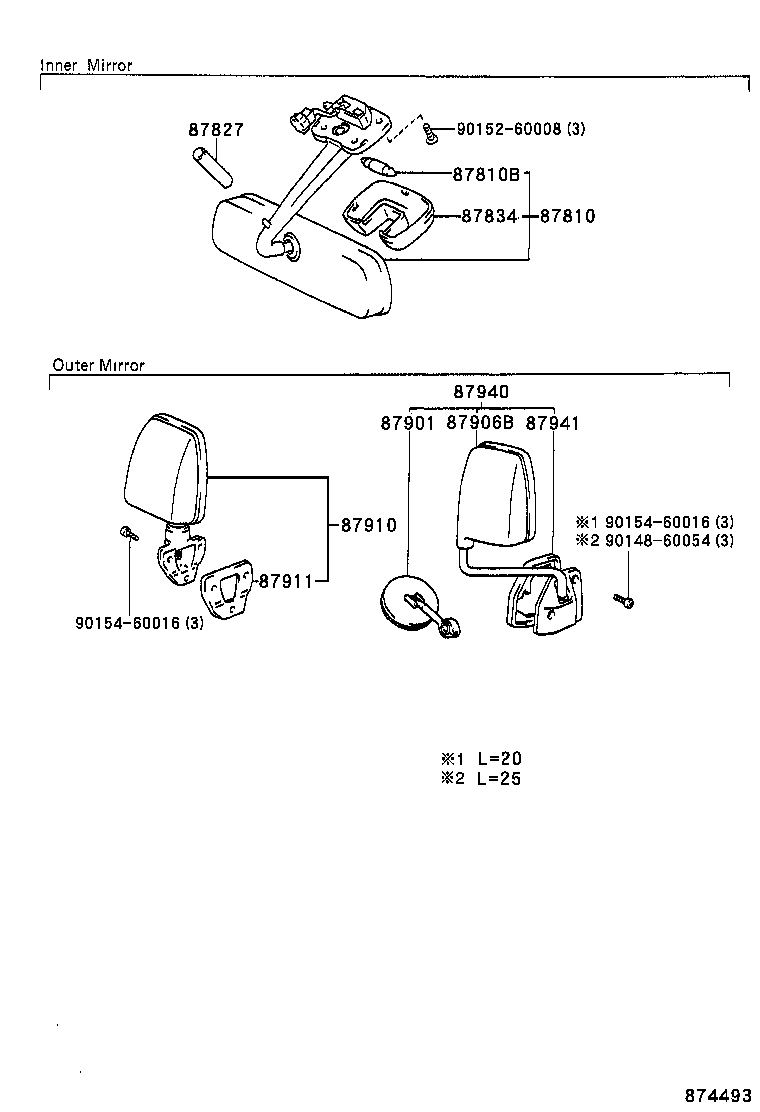

ILLUST NO. 1 OF 2(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-9570701 |
CM5#,6#,KM5#,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 87810-9570801 |
CM5#,6#,KM5#,YM55,60..DX ﾎﾞｳｹﾞﾝ ﾐﾗ-;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM8# |
1 | ||
| 87810-9570701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 87810-9570701 |
CM5#,6#,KM5#,YM55,60..DX BLACK,TRIM8# |
1 | ||
| 87810-9570801 |
CM65..CBU;CM5#,60,61,KM5#,YM55,6#..DX ﾎﾞｳｹﾞﾝ ﾐﾗ-;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM1# |
1 | ||
| 87810-9570801 |
CM65..TS..CBU;CM5#,60,61,KM51,YM55,6#..DX ﾎﾞｳｹﾞﾝ ﾐﾗ-;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM1# |
1 | ||
| 87810-9570801 |
CM65..CBU;CM5#,60,61,KM51,YM55,6#..DX ﾎﾞｳｹﾞﾝ ﾐﾗ-;ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM1# |
1 | ||
| 87810-9570701 |
CM5#,6#,KM51,YM55,6#..DX BLACK,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
CM5#,6#,KM5#,YM55,6# 12V 10W |
1 | ||
| 90981-11027 |
CM5#,6#,KM51,YM55,6# 12V 10W |
1 | ||
| 90981-11027 |
CM5#,6#,KM5#,YM55,60 12V 10W,12V 10W |
1 | ||
| 90981-11027 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-87002 |
CM5#,6#,KM5#,YM55,60 L=35 |
1 | ||
| 87828-23010 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 長さ=38.5 |
1 | ||
| 87828-23010 |
CM5#,6#,KM5#,YM55,60 L=38.5 |
1 | ||
| 87828-22020 |
CM5#,6#,KM5#,YM55,6# 長さ=35 |
1 | ||
| 87828-22020 |
CM5#,6#,KM5#,YM55,60 L=35 |
1 | ||
| 87828-22020 |
CM5#,6#,KM51,YM55,6# 長さ=35 |
1 | ||
| 87828-23010 |
CM5#,6#,KM5#,YM55,6# 長さ=38.5 |
1 | ||
| 87828-22020 |
CM65..TS;CM5#,60,61,KM51,YM55,6# 長さ=35 |
1 | ||
| 87828-23010 |
CM5#,6#,KM51,YM55,6# 長さ=38.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95701 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 81243-95701 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 81243-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95700 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87907-95700 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87907-95700 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87094-95703 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87094-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87094-95703 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87901-95A00 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95712 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87910-95712 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87910-95724 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87910-95712 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87959-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87959-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87959-95701 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 87959-95701 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95723 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87940-95731 |
KM51..JL..4H..CBU;CM51,55..SJL..5H..CBU;CM5#,65,KM5#,YM55..IV;YM55..SJL..TS..MTM..CBU;KM51..SJL..TS..3SO..5H..CBU TECS |
1 | ||
| 87940-95723 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87940-95723 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM65..TS;CM5#,60,61,KM51,YM55,6#..DX |
1 | ||
| 87941-95701 |
CM5#,6#,KM51,YM55,6#..DX |
1 | ||
| Common parts | ||||
| 90148-60054 | ||||
| 90152-60008 | ||||
| 90154-60016 | ||||
