CM51-TBSDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Jun 1999
Engine
2C
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )

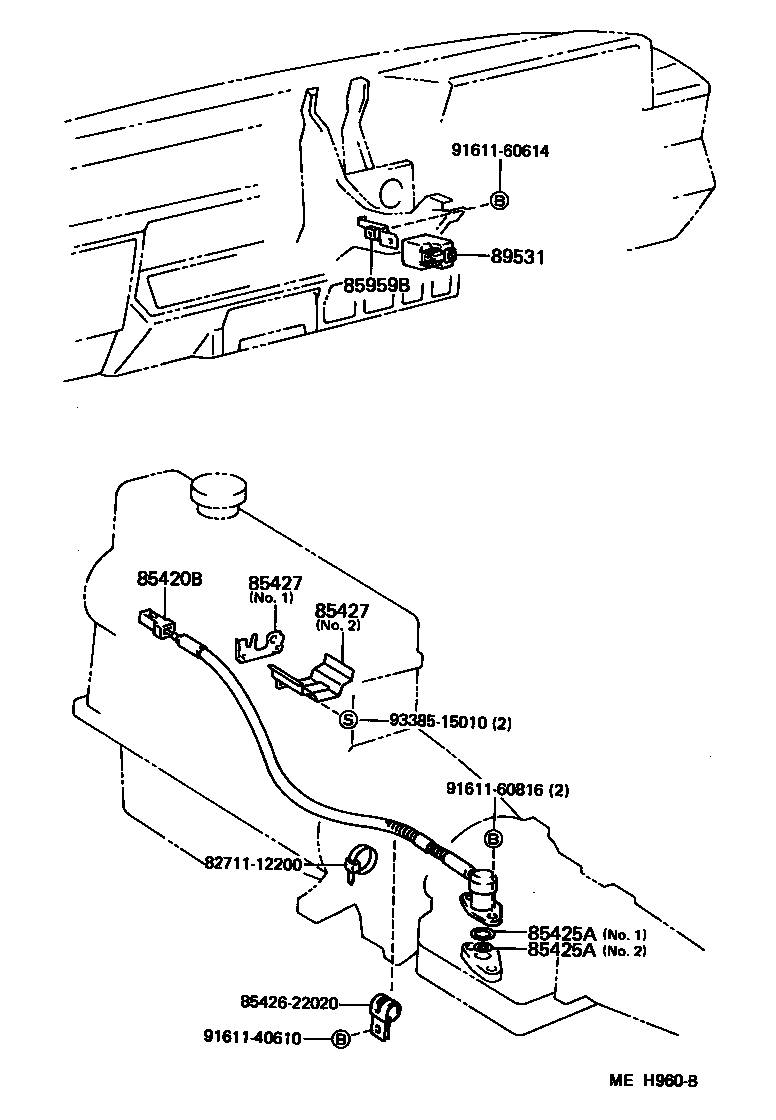

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-27020 |
CM51,55..4HC |
1 | ||
| 85420-30160 |
CM51,55,YM55..4HC |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-23001 |
CM51,55..4HC NO.1 |
1 | ||
| 90301-11001 |
CM51,55,YM55..4HC NO.2 |
1 | ||
| 90301-11001 |
CM51,55..4HC NO.2 |
1 | ||
| 90301-23001 |
CM51,55,YM55..4HC NO.1 |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-23001 |
CM51,55..4HC NO.1 |
1 | ||
| 90301-11001 |
CM51,55,YM55..4HC NO.2 |
1 | ||
| 90301-11001 |
CM51,55..4HC NO.2 |
1 | ||
| 90301-23001 |
CM51,55,YM55..4HC NO.1 |
1 | ||
| 85427 - INSULATOR, OVERDRIVE SOLENOID | ||||
| 85427-28030 |
CM51,55..4HC NO.2 |
1 | ||
| 85427-28030 |
CM51,55..4HC NO.2 |
1 | ||
| 85427-28020 |
CM51,55,YM55..4HC NO.1 |
1 | ||
| 85427-28060 |
CM51,55,YM55..4HC NO.2 |
1 | ||
| 85427-28020 |
CM51,55..4HC NO.1 |
1 | ||
| 85427-28020 |
CM51,55..4HC NO.1 |
1 | ||
| 85427 - INSULATOR, OVERDRIVE SOLENOID | ||||
| 85427-28030 |
CM51,55..4HC NO.2 |
1 | ||
| 85427-28030 |
CM51,55..4HC NO.2 |
1 | ||
| 85427-28020 |
CM51,55,YM55..4HC NO.1 |
1 | ||
| 85427-28060 |
CM51,55,YM55..4HC NO.2 |
1 | ||
| 85427-28020 |
CM51,55..4HC NO.1 |
1 | ||
| 85427-28020 |
CM51,55..4HC NO.1 |
1 | ||
| 85959B - HOLDER, RELAY | ||||
| 85959-27030 |
CM51,55..4HC |
1 | ||
| 89531 - RELAY, TRANSMISSION CONTROL | ||||
| 89531-14050 |
CM51,55..4HC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 85426-22020 | ||||
| 91611-40610 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 93385-15010 | ||||
