CM51-TBSDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Jun 1999
Engine
2C
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )

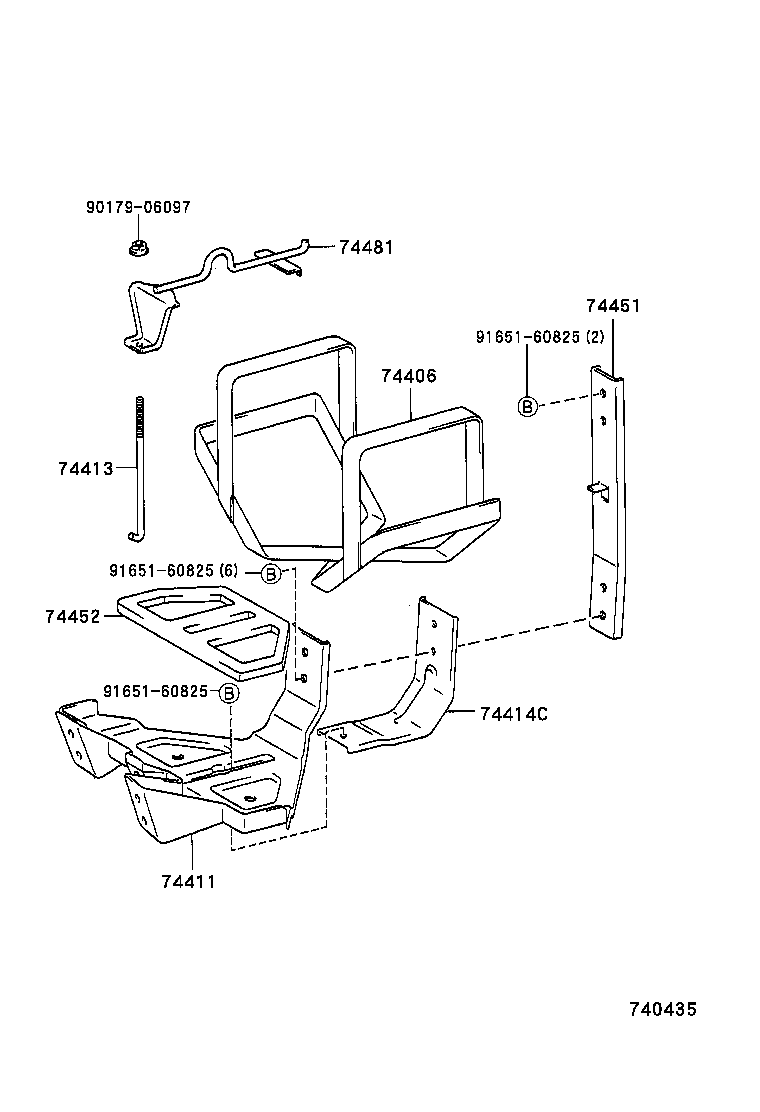

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74406 - BELT SUB-ASSY, BATTERY | ||||
| 74446-95702 |
CM65..TS;YM55..IV;CM5#,60,61 |
1 | ||
| 74446-95702 |
CM5#,6#;YM55..IV |
1 | ||
| 74446-95702 |
CM5#,6# |
1 | ||
| 74446-95702 |
CM65..TS;CM5#,60,61 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74411-95714 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 74411-95714 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 74411-95714 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95J00 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 74451-95J00 |
CM65..TS;CM5#,60,61 |
1 | ||
| 74451-95J00 |
CM5#,6# |
1 | ||
| 74451-95J00 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 74414C - SUPPORT, BATTERY CLAMP | ||||
| 74414-95703 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 74414-95703 |
CM5#,6# |
1 | ||
| 74414-95703 |
CM65..TS;YM55..IV;CM5#,60,61 |
1 | ||
| 74414-95703 |
CM65..TS;CM5#,60,61 |
1 | ||
| 74414-95703 |
CM5#,6#;YM55..IV |
1 | ||
| 74451 - PLATE, BATTERY CARRIER SUPPORT | ||||
| 74485-95703 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 74485-95703 |
CM65..TS;CM5#,60,61,KM51,YM55,6# |
1 | ||
| 74485-95703 |
CM5#,6#,KM51,YM55,6# |
1 | ||
| 74452 - PLATE, BATTERY SET | ||||
| 74452-95700 |
CM65..TS;CM5#,60,61 |
1 | ||
| 74452-95700 |
CM5#,6# |
1 | ||
| 74452-95700 |
CM65..TS;YM55..IV;CM5#,60,61 |
1 | ||
| 74452-95700 |
CM5#,6#;YM55..IV |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-95707 |
CM5#,6# |
1 | ||
| 74404-95707 |
CM65..TS;CM5#,60,61 |
1 | ||
| 74404-95707 |
CM5#,6# |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91651-60825 | ||||
