CM51-TBSDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9611)

Click highlighted areas on diagram

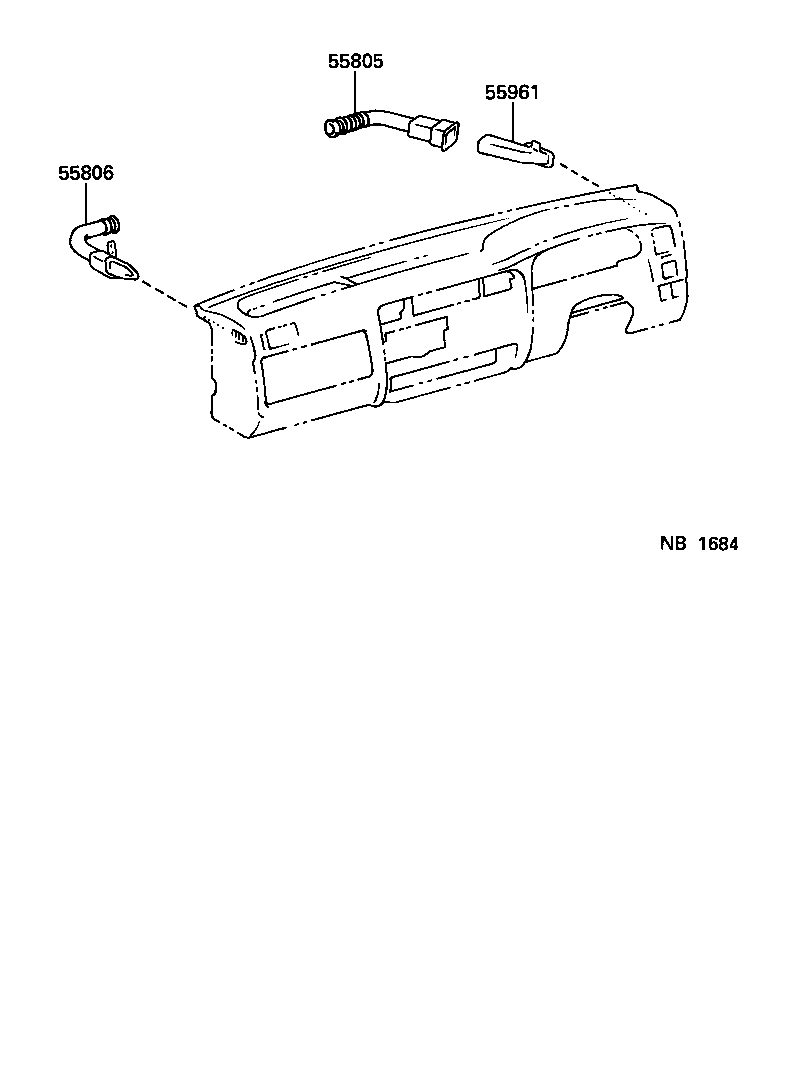

diagram 55805 55806 55961 55962
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55971-95700

CM5#,6#,KM5#,YM55,6#

 1
55971-95700

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
55971-27010

CM5#,6#,KM51,YM55,6#

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55972-95700

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
55972-95700

CM5#,6#,KM5#,YM55,6#

 1
55972-27010

CM5#,6#,KM51,YM55,6#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-9570104

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

BLUE,BLUE

 1
55961-27010B0

CM5#,6#,KM51,YM55,6#

LIGHT GRAY,TRIM1#

 1
55961-9570113

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
55961-9570104

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
55961-9570113

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-9570104

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
55962-9570113

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
55962-9570113

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
55962-9570104

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

BLUE,BLUE

 1

(9611- )

Click highlighted areas on diagram

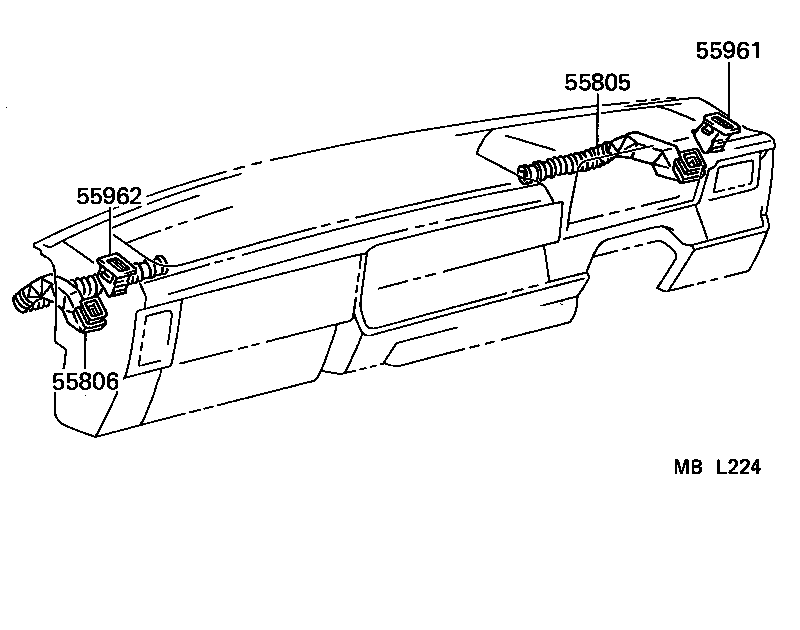

diagram 55805 55806 55961
Part # Description Qty Price
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55971-95700

CM5#,6#,KM5#,YM55,6#

 1
55971-95700

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
55971-27010

CM5#,6#,KM51,YM55,6#

 1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55972-95700

CM65..TS;CM5#,60,61,KM51,YM55,6#

 1
55972-95700

CM5#,6#,KM5#,YM55,6#

 1
55972-27010

CM5#,6#,KM51,YM55,6#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-9570104

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

BLUE,BLUE

 1
55961-27010B0

CM5#,6#,KM51,YM55,6#

LIGHT GRAY,TRIM1#

 1
55961-9570113

CM5#,6#,KM5#,YM55,6#

GRAY,TRIM1#

 1
55961-9570104

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 1
55961-9570113

CM65..TS;CM5#,60,61,KM51,YM55,6#

GRAY,TRIM1#

 1
