CM51-TBSDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )1C,2C

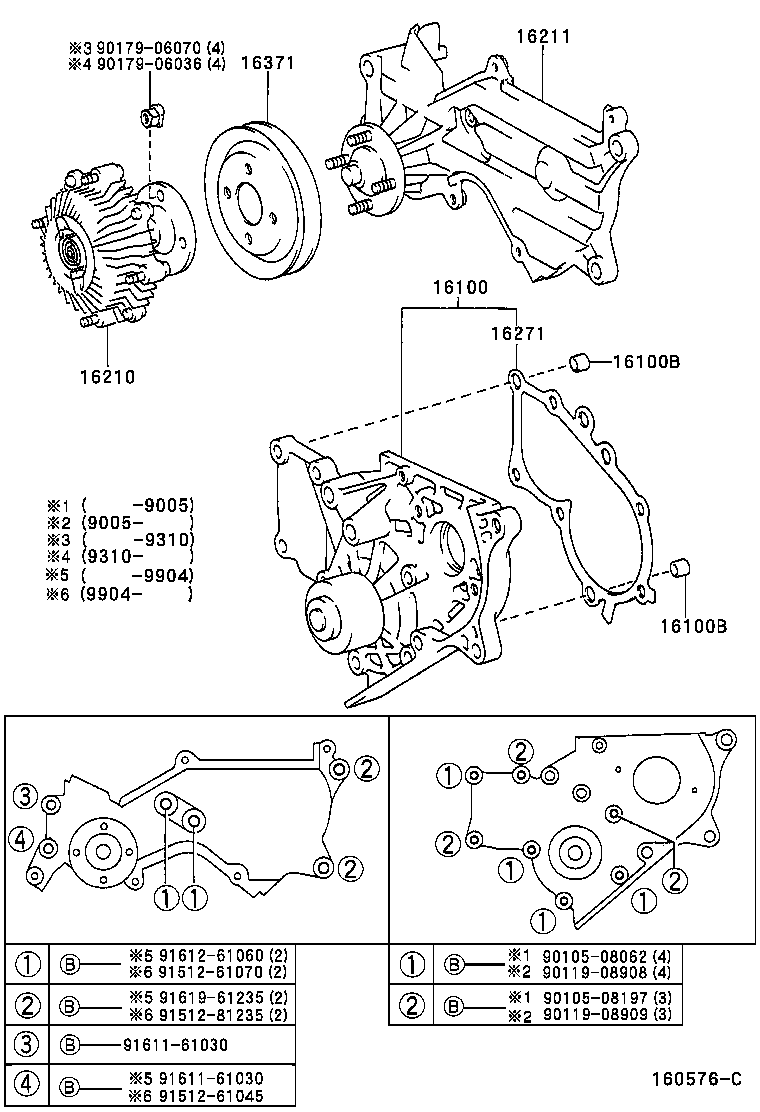

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16210 16211 16271 16371 9010508062 9010508197 9011908908 9011908909 9017906036 9017906070 9151261045 9151261070 9151281235 9161161030 9161161030 9161261060 9161961235
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69275

2C..CM5#,6#

 1
16100-69295

2C..CM5#,6#

 1
16100-69295

2C..CM5#,6#

 1
16100-69085

1C,2C..CM5#,6#

 1
16100-69298

2C..CM5#,6#

 1
16100-69296

2C..CM5#,6#

 1
16100-69295

2C..CM65..TS;2C..CM5#,60,61

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C,2C..CM5#,6#

 2
90253-11021

2C..CM5#,6#

 2
90253-11021

2C..CM65..TS;2C..CM5#,60,61

 2
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1C,2C..CM5#,6#

 2
90253-11021

2C..CM5#,6#

 2
90253-11021

2C..CM65..TS;2C..CM5#,60,61

 2
16210 - COUPLING ASSY, FLUID
16210-64020

2C..CM51,55..4HC

 1
16211 - BRACKET, FLUID COUPLING
16307-64020

2C..CM5#,6#

 1
16307-64032

2C..CM55..IV;2C..CM55..4HC;2C..CM51..JL..IV

ﾚｲﾄｳｼﾔ

 1
16307-64012

1C,2C..CM5#,6#

 1
16307-64032

2C..CM51..IV;2C..CM55..4HC

ﾚｲﾄｳｼﾔ

 1
16307-64021

2C..CM5#,6#

 1
16307-64022

2C..CM5#,6#

 1
16307-64032

2C..CM51..IV;2C..CM55..4HC..IV

ﾚｲﾄｳｼﾔ

 1
16307-64021

2C..CM65..TS;2C..CM5#,60,61

 1
16307-64021

2C..CM5#,6#

 1
16271 - GASKET, WATER PUMP
16271-64020

2C..CM5#,6#

 1
16271-64030

2C..CM5#,6#

 1
16271-64031

2C..CM5#,6#

 1
16271-64030

2C..CM65..TS;2C..CM5#,60,61

 1
16271-64030

2C..CM5#,6#

 1
16271-64010

1C,2C..CM5#,6#

 1
16371 - PULLEY, FAN
16371-64040

2C..CM5#,6#

 1
16371-64050

2C..CM65..TS;2C..CM5#,60,61

 1
16371-64050

2C..CM5#,6#

 1
16371-64030

1C,2C..CM5#,6#

 1
Common parts
90105-08062
90105-08197
90119-08908
90119-08909
90179-06036
90179-06070
91512-61045
91512-61070
91512-81235
91611-61030
91612-61060
91619-61235
