CM51-TBSDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Jun 1999
Engine 2C
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )1C,2C

Click highlighted areas on diagram

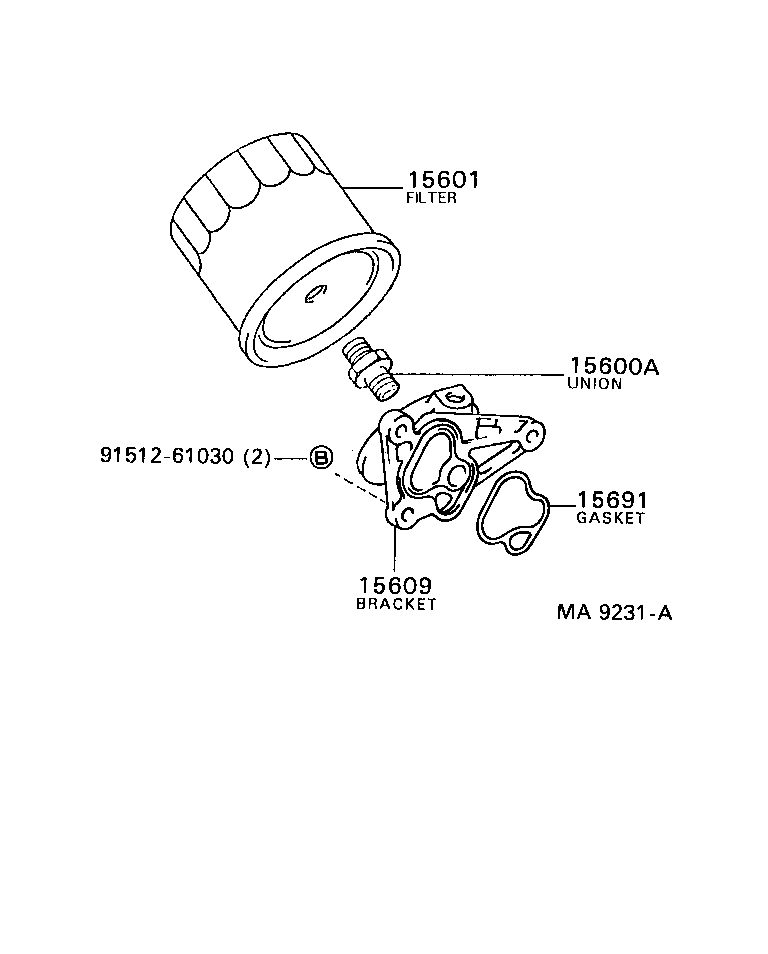

diagram 15600A 15601 15609 15691 9151261030
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-27001

1C,2C..CM5#,6#

 1
90404-19004

1C,2C..CM5#,6#

 1
15116-54021

2C..CM65..TS;2C..CM5#,60,61

 1
15116-54021

2C..CM5#,6#

 1
15116-54021

2C..CM5#,6#

 1
15601 - FILTER SUB-ASSY, OIL
90915-30003

2C..CM65..TS;2C..CM5#,60,61

 1
15600-25010

1C,2C..CM5#,6#

 1
90915-03003

1C,2C..CM5#,6#

 1
90915-30003

2C..CM5#,6#

 1
90915-30001

2C..CM65..TS;2C..CM5#,60,61

 1
90915-30001

2C..CM5#,6#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15677-64031

1C,2C..CM5#,6#

 1
15677-64080

2C..CM65..TS;2C..CM5#,60,61

 1
15677-64080

1C,2C..CM5#,6#

 1
15677-64081

2C..CM65..TS;2C..CM5#,60,61

 1
15677-64081

2C..CM5#,6#

 1
15691 - GASKET, OIL FILTER
15691-64040

2C..CM5#,6#

 1
15691-64040

2C..CM65..TS;2C..CM5#,60,61

 1
15691-64040

2C..CM5#,6#

 1
15691-64030

1C,2C..CM5#,6#

 1
15691-64041

2C..CM5#,6#

 1
Common parts
91512-61030
