CM51-TBSDS (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Jun 1999
Engine
2C
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )ATM

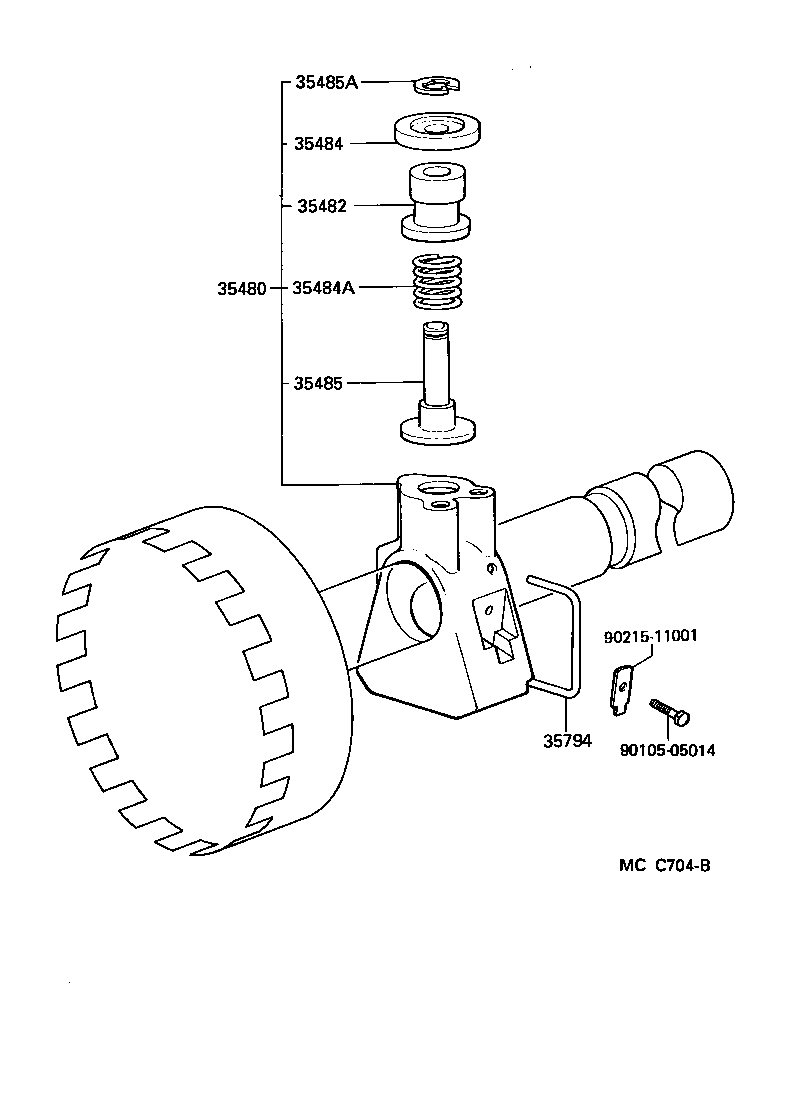

Click highlighted areas on diagram
A41,A42D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35480 - GOVERNOR | ||||
| 35480-30080 |
CM51,55..4HC |
1 | ||
| 35482 - VALVE, GOVERNOR | ||||
| 35482-20010 |
CM51,55..4HC |
1 | ||
| 35484 - WEIGHT, GOVERNOR, OUTER | ||||
| 35484-20020 |
CM51,55..4HC |
1 | ||
| 35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT) | ||||
| 90501-09030 |
CM51,55..4HC |
1 | ||
| 35485 - SHAFT, GOVERNOR VALVE | ||||
| 35485-22010 |
CM51,55,KM51,YM55..ATM |
1 | ||
| 35485A - RING, E (FOR GOVERNOR VALVE SHAFT) | ||||
| 90523-05020 |
CM51,55,KM51,YM55..ATM |
1 | ||
| 35794 - RING, GOVERNOR RETAINING | ||||
| 35794-22010 |
CM51,55,KM51,YM55..ATM |
1 | ||
| Common parts | ||||
| 90105-05014 | ||||
| 90215-11001 | ||||
