CM51-TBQDS3 (1989)

Toyota Lite/Townace Truck

Production Oct 1989 - Jun 1999
Engine 2C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9906)CM5#,KM51,YM55..5F,5H

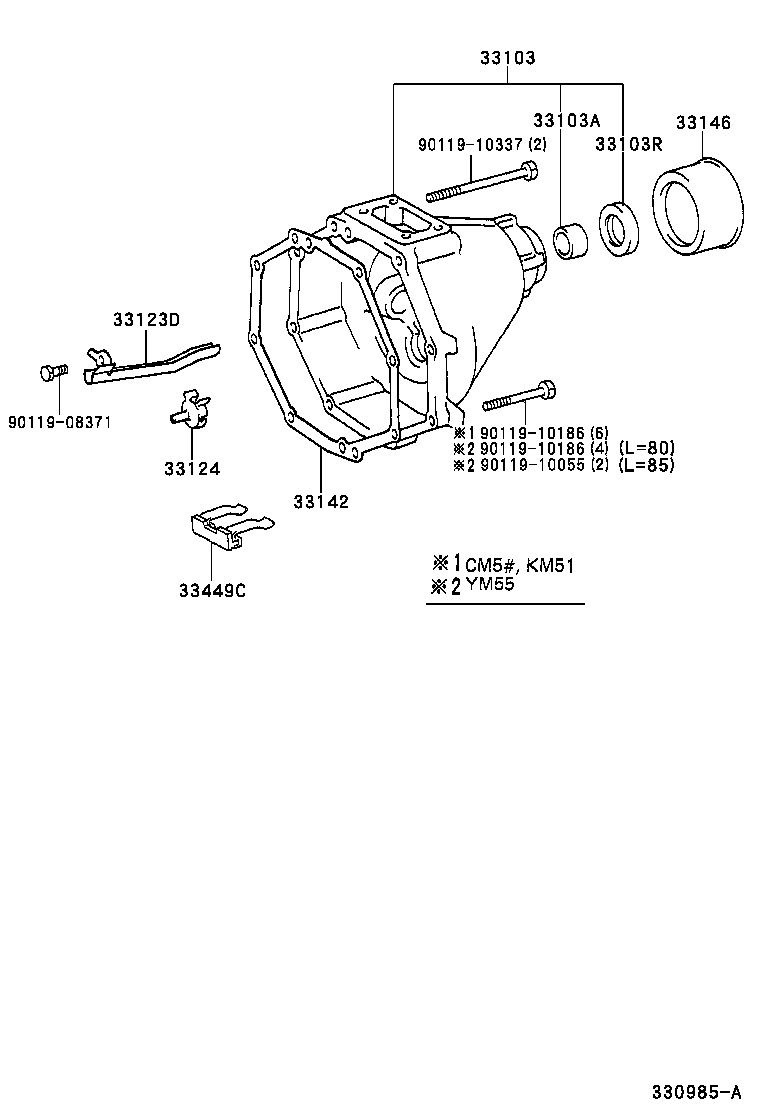

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33123D 33124 33142 33146 33449C 9011908371 9011910055 9011910186 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-28031

CM5#,KM51..MTM

 1
33103-28031

CM5#,KM51,YM55..MTM

 1
33124 - PIPE, OIL RECEIVER(MTM)
33124-36010

CM5#,KM51,YM55..5F,5H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

CM5#,KM51,YM55..MTM

 1
33146-30020

CM5#,YM55..5H

 1
33146-30020

CM5#,KM51,YM55..MTM

 1
33449C - MAGNET, TRANSMISSION (MTM)
33449-26010

CM65..TS;CM5#,60,61,KM51,YM55,6#..MTM

 1
33449-26010

CM5#,6#,KM51,YM55,6#..MTM

 1
Common parts
90119-08371
90119-10055
90119-10186
90119-10337
