CM50-TLQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )1C,2C

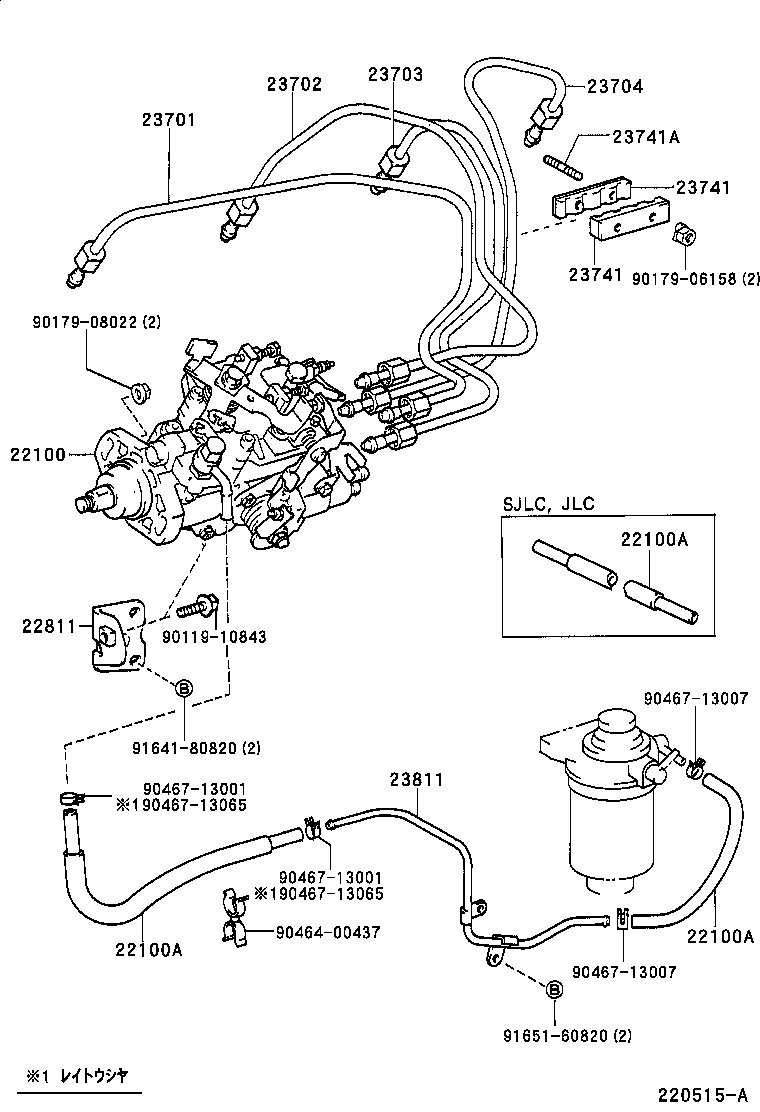

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 23741A 23811 9011910843 9017906158 9017908022 9046400437 9046713001 9046713001 9046713007 9046713007 9046713065 9046713065 9164180820 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-64841

1C..CM50

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08040

1C,2C..CM5#,6#

長さ=400,FILTER TO PIPE

 1
90447-14011

2C..CM51..4HC;1C,2C..CM50,55..JL,SJL;2C..CM6#..(JL,T1)..(GUT,TS)

長さ=440,PIPE TO PUMP

 1
95332-08040

1C,2C..CM5#,6#

長さ=400,内径=7.6,FILTER TO PIPE

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08040

1C,2C..CM5#,6#

長さ=400,FILTER TO PIPE

 1
90447-14011

2C..CM51..4HC;1C,2C..CM50,55..JL,SJL;2C..CM6#..(JL,T1)..(GUT,TS)

長さ=440,PIPE TO PUMP

 1
95332-08040

1C,2C..CM5#,6#

長さ=400,内径=7.6,FILTER TO PIPE

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08040

1C,2C..CM5#,6#

長さ=400,FILTER TO PIPE

 1
90447-14011

2C..CM51..4HC;1C,2C..CM50,55..JL,SJL;2C..CM6#..(JL,T1)..(GUT,TS)

長さ=440,PIPE TO PUMP

 1
95332-08040

1C,2C..CM5#,6#

長さ=400,内径=7.6,FILTER TO PIPE

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64010

1C,2C..CM5#,6#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64080

1C,2C..CM5#,6#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64080

1C,2C..CM5#,6#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64031

1C,2C..CM5#,6#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64080

1C,2C..CM5#,6#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

1C,2C..CM5#,6#

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

1C,2C..CM5#,6#

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

1C,2C..CM5#,6#

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-64030

1C,2C..CM5#,6#

 1
Common parts
90119-10843
90179-06158
90179-08022
90464-00437
90467-13001
90467-13007
90467-13065
91641-80820
91651-60820
