CM50-TLQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9008)

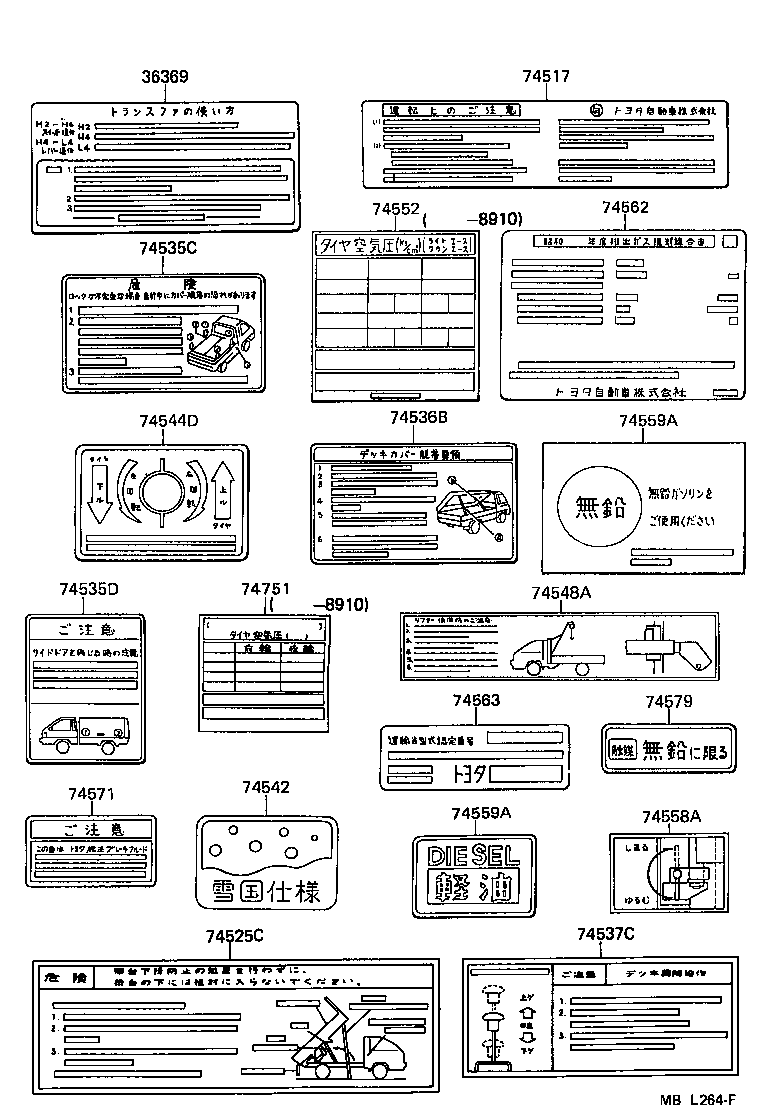

Click highlighted areas on diagram

diagram 36369 74517 74525C 74535C 74535D 74536B 74537C 74542 74544D 74548A 74552 74558A 74559A 74559A 74562 74563 74571 74579 74751
Part # Description Qty Price
74517 - PLATE, EXHAUST TEMPERATURE CAUTION
74517-32020

CM5#,6#,KM5#..DX

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-35050

CM50,55,KM5#,YM55..SJL

 1
74552 - PLATE, SAFETY CAUTION
74552-27440

KM50..JL..CBU;CM50,51,KM51..JL,T1

 1
74552-27560

KM51..T1;CM50,51,KM50..JL

 1
74552-27510

CM50..SJL

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CM5#,6#

 1
74559A - PLATE, FUEL CAUTION
74559-14030

CM5#,6#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-28100

CM50

 1
74562-13061

CM50

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

CM5#,6#,KM5#,YM55,60

 1
