CM50-TLQDS (1986)
Toyota Lite/Townace Truck

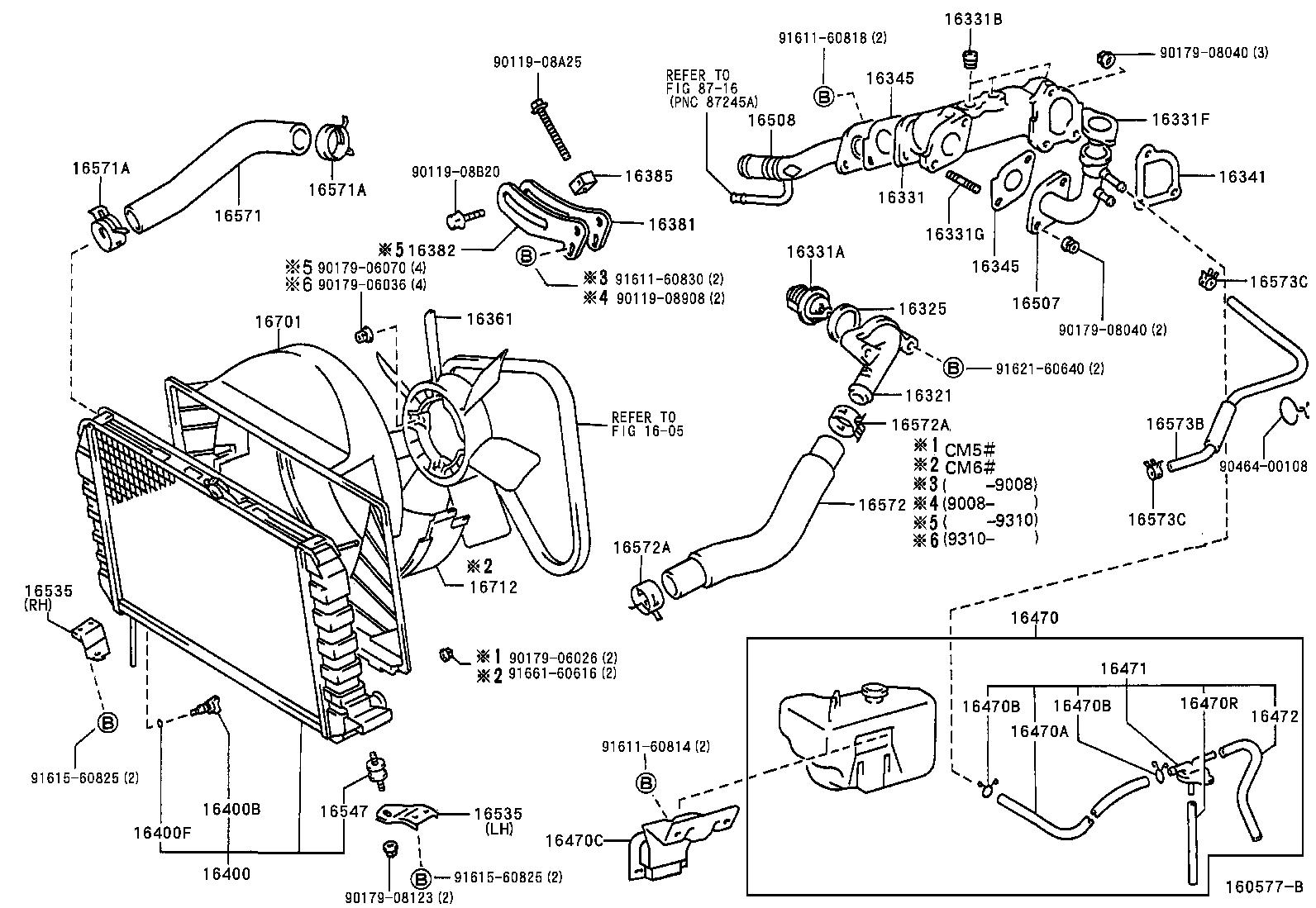

ILLUST NO. 1 OF 2(8610- )1C,2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-64040 |
1C,2C..CM5#,6# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1C,2C..CM5#,6# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64050 |
1C,2C..CM5#,6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1C,2C..CM5#,6# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53011 |
1C,2C..CM5#,6# |
3 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-63010 |
1C,2C..CM5#,6# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
1C,2C..CM5#,6# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64010 |
1C,2C..CM5#,6# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64010 |
1C,2C..CM5#,6# |
2 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64010 |
1C,2C..CM5#,6# |
2 | ||
| 16361 - FAN | ||||
| 16361-38010 |
1C,2C..CM5#,6# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64030 |
1C,2C..CM5#,6# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
1C,2C..CM5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-64370 |
1C,2C..CM50,51,55..5H |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1C,2C..CM5#,6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1C,2C..CM5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64060 |
1C,2C..CM5#,6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
1C,2C..CM5#,6# 長さ=420 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM5#,6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 53204-95703 |
1C,2C..CM5#,6# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1C,2C..CM5#,6# *H,L=110 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64030 |
1C,2C..CM5#,6# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
1C,2C..CM5#,6# 長さ=600 |
1 | ||
| 90445-12078 |
1C,2C..CM5#,6# 長さ=600,*H,L=180 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-64020 |
1C,2C..CM5#,6# |
1 | ||
| 16508 - PIPE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16508-64020 |
1C,2C..CM5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64100 |
1C,2C..CM5# |
1 | ||
| 16571-64101 |
1C,2C..CM50,51,55 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64120 |
1C,2C..CM50,51,55 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64030 |
1C,2C..CM50,51,55 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13001 |
1C,2C..CM5#,6# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13001 |
1C,2C..CM5#,6# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64180 |
1C,2C..CM5# |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06026 | ||||
| 90179-06036 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 90179-08123 | ||||
| 90464-00108 | ||||
| 91611-60814 | ||||
| 91611-60818 | ||||
| 91611-60830 | ||||
| 91615-60825 | ||||
| 91621-60640 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8716 | ||||

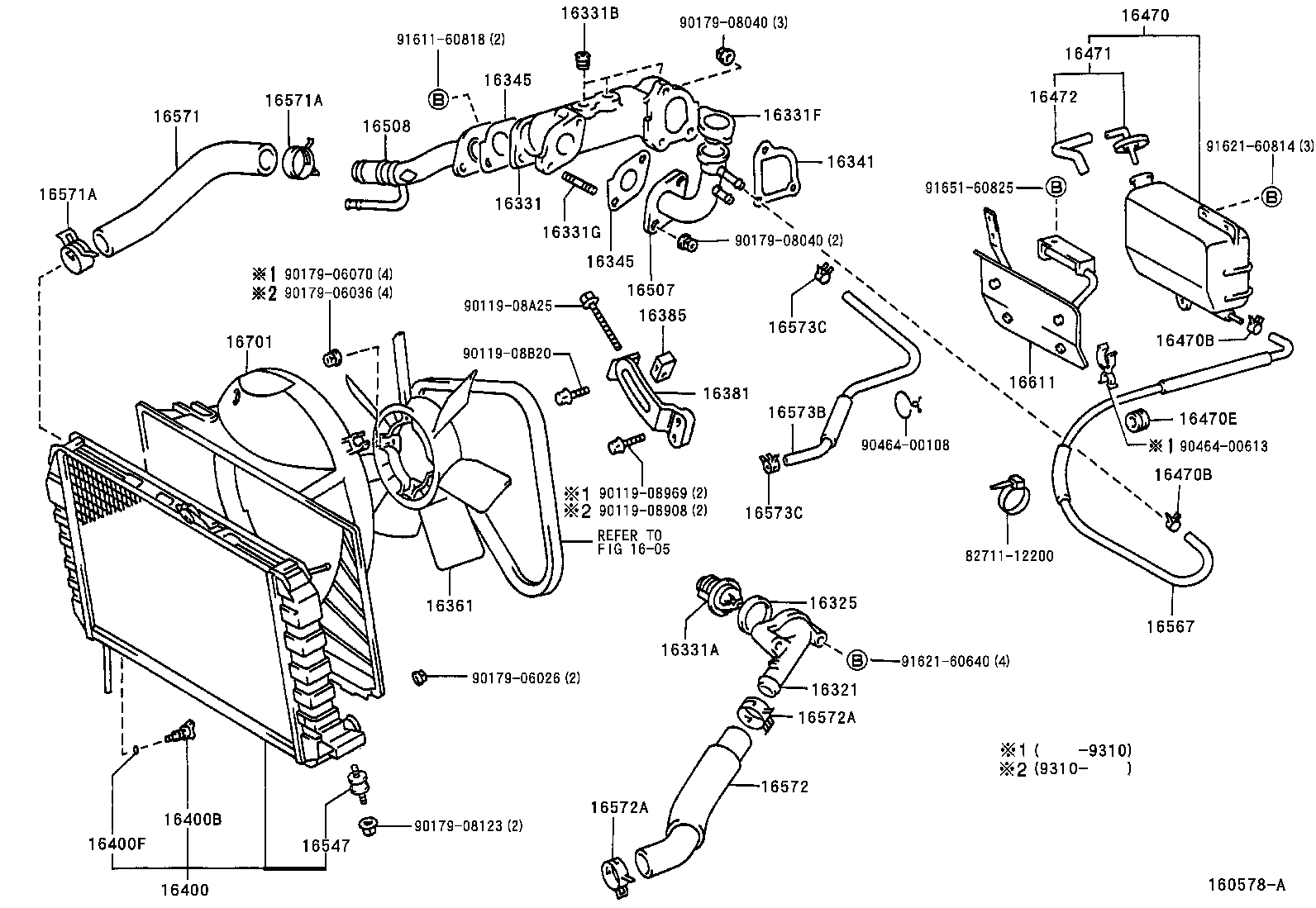

ILLUST NO. 1 OF 2(8610- )1C,2C
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-64040 |
1C,2C..CM5#,6# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1C,2C..CM5#,6# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64050 |
1C,2C..CM5#,6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1C,2C..CM5#,6# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53011 |
1C,2C..CM5#,6# |
3 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-63010 |
1C,2C..CM5#,6# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
1C,2C..CM5#,6# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64010 |
1C,2C..CM5#,6# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64010 |
1C,2C..CM5#,6# |
2 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64010 |
1C,2C..CM5#,6# |
2 | ||
| 16361 - FAN | ||||
| 16361-38010 |
1C,2C..CM5#,6# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64030 |
1C,2C..CM5#,6# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
1C,2C..CM5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-64370 |
1C,2C..CM50,51,55..5H |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1C,2C..CM5#,6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1C,2C..CM5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64060 |
1C,2C..CM5#,6# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM5#,6# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64030 |
1C,2C..CM5#,6# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
1C,2C..CM5#,6# 長さ=600 |
1 | ||
| 90445-12078 |
1C,2C..CM5#,6# 長さ=600,*H,L=180 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-64020 |
1C,2C..CM5#,6# |
1 | ||
| 16508 - PIPE SUB-ASSY, RADIATOR, NO.2 | ||||
| 16508-64020 |
1C,2C..CM5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64100 |
1C,2C..CM5# |
1 | ||
| 16571-64101 |
1C,2C..CM50,51,55 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64120 |
1C,2C..CM50,51,55 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C,2C..CM5#,6# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64030 |
1C,2C..CM50,51,55 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13001 |
1C,2C..CM5#,6# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-13001 |
1C,2C..CM5#,6# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64180 |
1C,2C..CM5# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08908 | ||||
| 90119-08969 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06026 | ||||
| 90179-06036 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 90179-08123 | ||||
| 90464-00108 | ||||
| 90464-00613 | ||||
| 91611-60818 | ||||
| 91621-60640 | ||||
| 91621-60814 | ||||
| 91651-60825 | ||||
| Linked diagrams | ||||
| 1605 | ||||

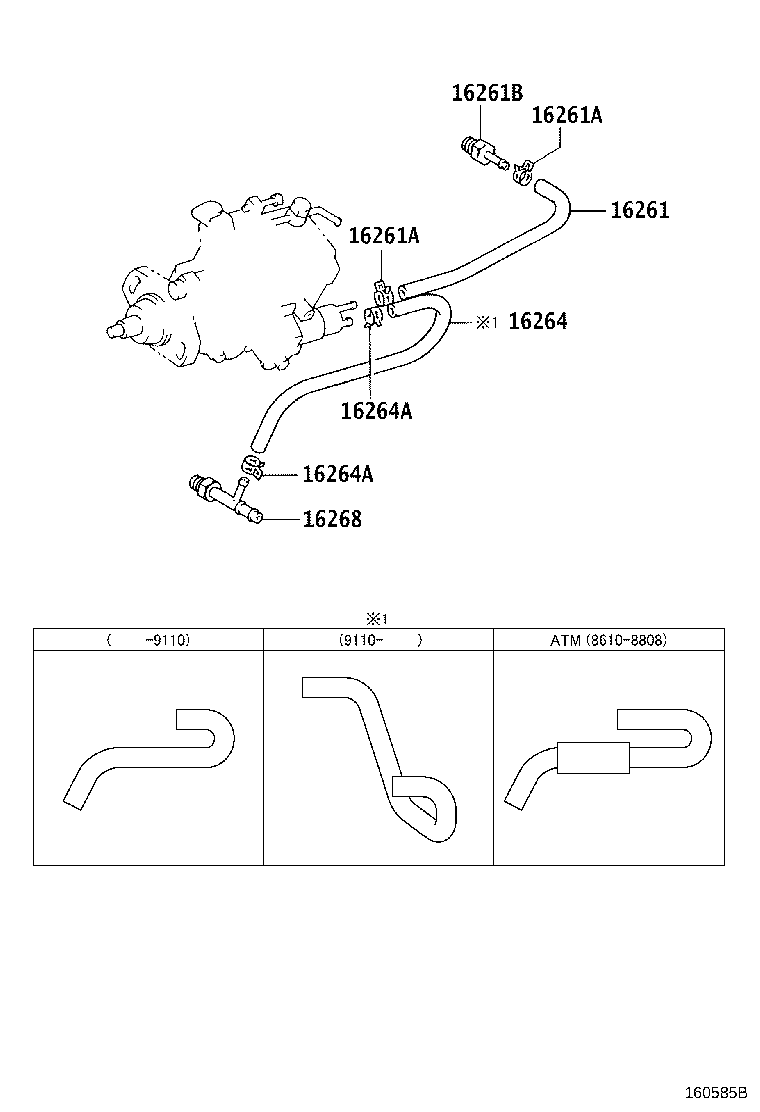

ILLUST NO. 2 OF 2(8610- )1C,2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64020 |
1C,2C..CM5#,6# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C,2C..CM5#,6# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C,2C..CM5#,6# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53059 |
1C,2C..CM5#,6# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64010 |
1C,2C..CM50,55,6#..5H |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C,2C..CM5#,6# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C,2C..CM5#,6# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64050 |
1C,2C..CM5#,6# |
1 | ||
