CM50-TBQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

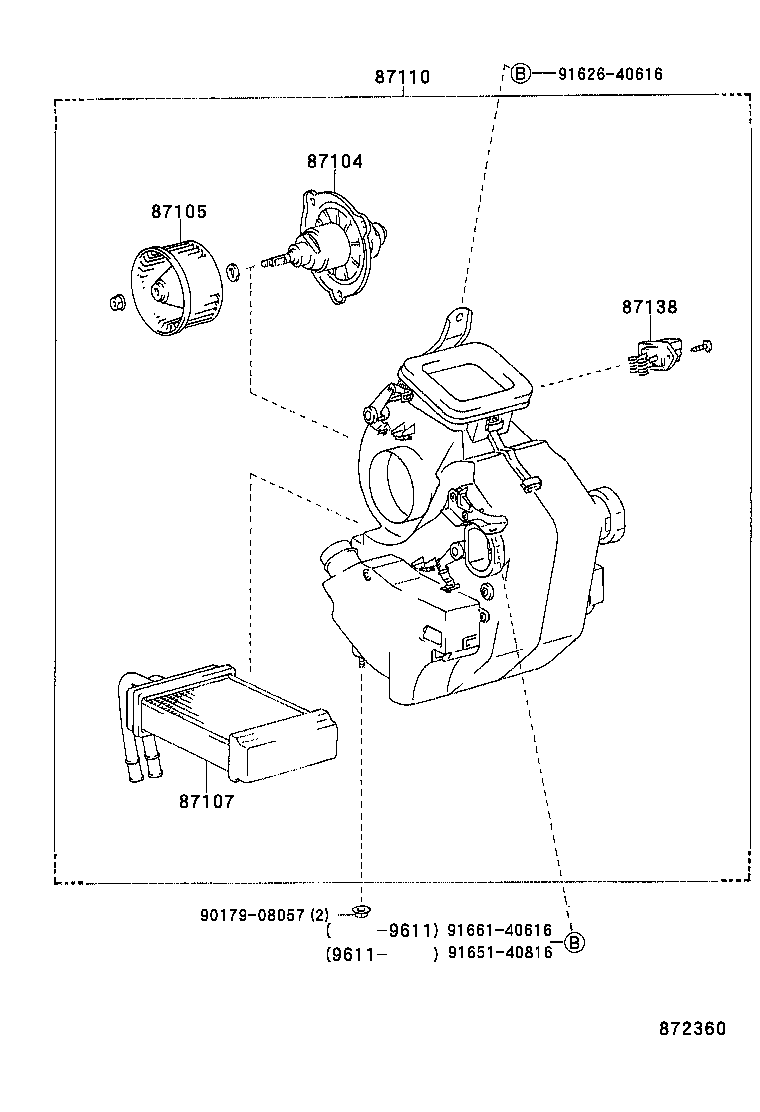

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 9017908057 9162640616 9165140816 9166140616
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95705

CM5#,6#,KM5#,YM55,6#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

CM5#,6#,KM5#,YM55,6#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95706

CM5#,6#

 1
87107-95707

CM5#,6#,KM5#;YM55..SJLC..4H

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87110 - HEATER ASSY
87110-95737

CM5#,6#,KM5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87110-95735

CM5#,6#

 1
87138 - RESISTOR, HEATER BLOWER
87138-95707

CM5#,6#,KM5#,YM55,6#

 1
Common parts
90179-08057
91626-40616
91651-40816
91661-40616
