CM50-TBQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

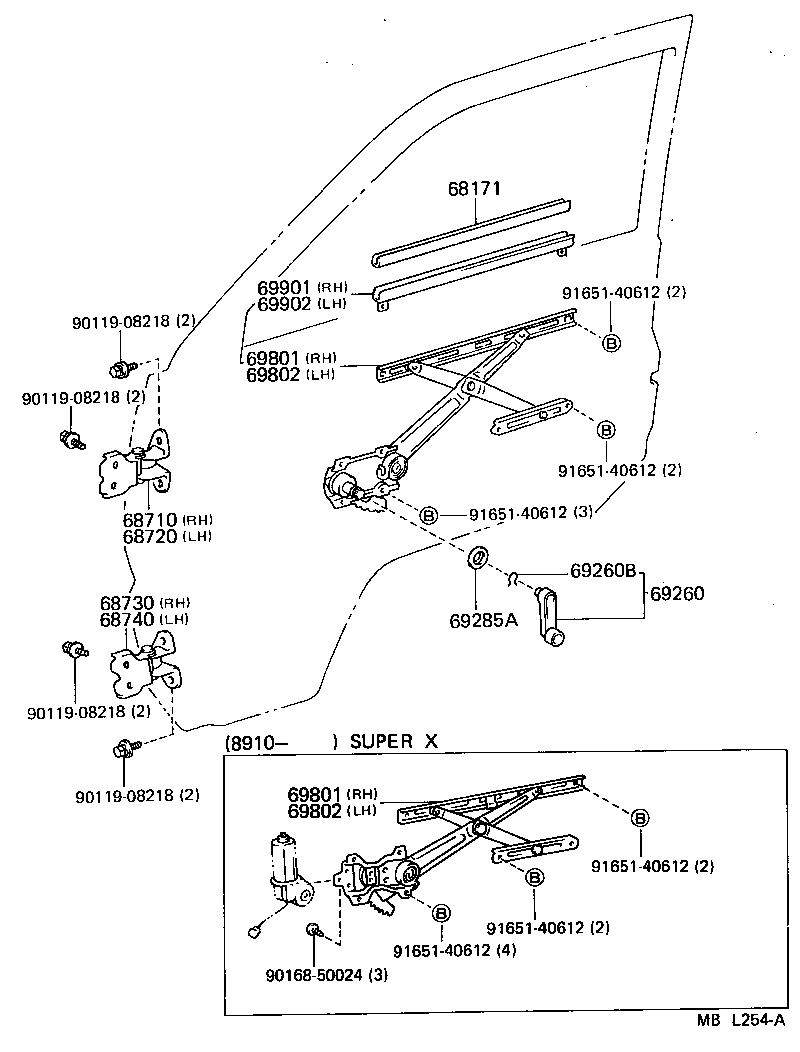

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69285A 69801 69801 69802 69802 69901 69902 9011908218 9011908218 9011908218 9011908218 9016850024 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

CM5#,6#,KM5#,YM55,60

RH;LH

 1
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

CM5#,6#,KM5#,YM55,6#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

CM5#,6#,KM5#,YM55,6#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

CM5#,6#,KM5#,YM55,6#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

CM5#,6#,KM5#,YM55,6#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-9570214

CM5#,6#,KM5#,YM55,60..DX

BLUE,TRIM8#

 2
69260-9570214

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..DX

BLUE,BLUE

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

CM5#,6#,KM5#,YM55,60

 2
90520-01002

CM5#,6#,KM5#,YM55,60

 2
69285A - PLATE, DOOR VENT WINDOW CONTROL HANDLE
69285-2201008

KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..(3HC,4H,4HC,5H)

IVORY,NATURAL WHITE

 2
69285-2201008

CM5#,6#,KM5#,YM55,60..DX

NATURAL WHITE,TRIM8#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95704

CM5#,6#,KM5#,YM55,60

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95704

CM5#,6#,KM5#,YM55,60

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95704

CM5#,6#,KM5#,YM55,60

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95704

CM5#,6#,KM5#,YM55,60

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-87002

CM5#,6#,KM5#,YM55,6#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-87002

CM5#,6#,KM5#,YM55,6#

 1
Common parts
90119-08218
90168-50024
91651-40612
