CM50-TBQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9310)1C,2C

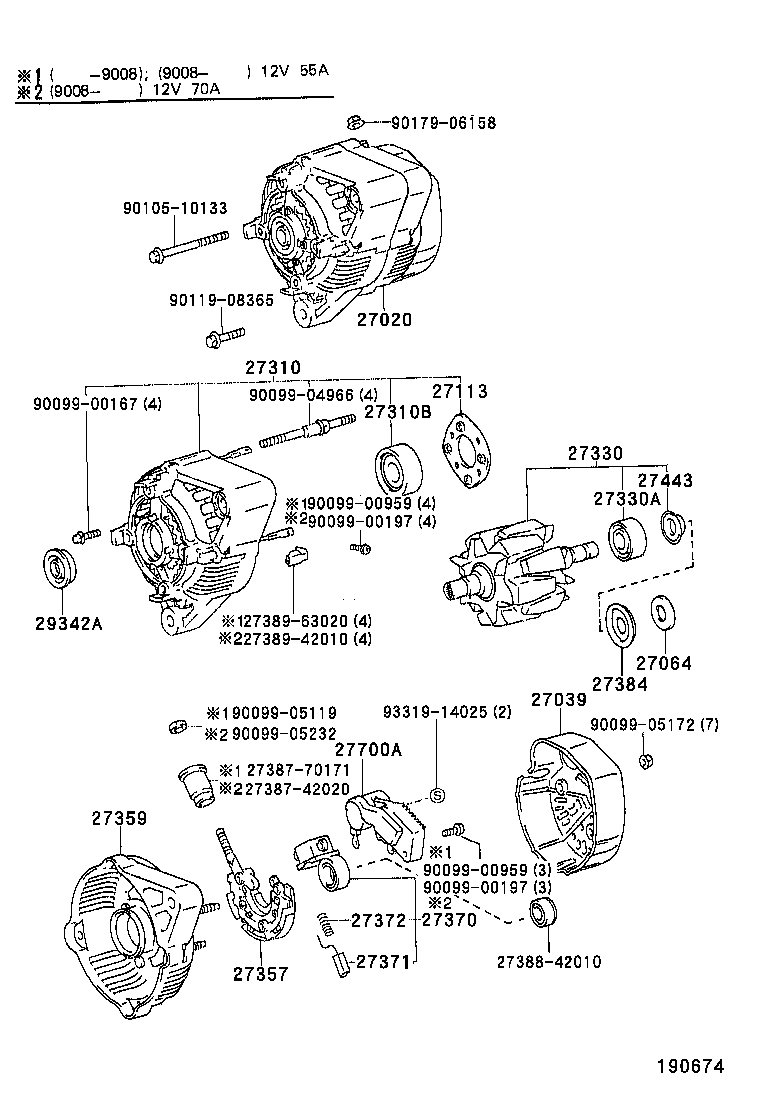

Click highlighted areas on diagram

12V 55A,70A

diagram 27020 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 27384 2738742020 2738770171 2738842010 2738942010 2738963020 27443 27700A 29342A 9009900167 9009900197 9009900197 9009900959 9009900959 9009904966 9009905119 9009905172 9009905232 9010510133 9011908365 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-64021

1C,2C..CM5#,6#

12V 55A

 1
27060-64011

1C,2C..CM5#,65..5H..IV

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

1C,2C..CM50,55,65..IV

12V 70A

 1
27039-72110

1C,2C..CM5#,6#

12V 55A

 1
27039-72010

1C,2C..CM5#,65..5H..IV

ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ

 1
27039-72110

1C,2C..CM5#,6#

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-64130

1C,2C..CM5#,6#

 1
27312-64130

1C,2C..CM5#,6#

12V 55A,70A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64130

1C,2C..CM50,55,65..IV

ｷﾔﾝﾋﾟﾝｸﾞ ｶ-

 1
27310-64140

1C,2C..CM5#,6#

 1
27310-64140

1C,2C..CM5#,6#

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165

1C,2C..CM5#,6#

12V 55A,70A

 1
90099-10165

1C,2C..CM5#,6#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64140

1C,2C..CM5#,6#

12V 55A

 1
27330-64130

1C,2C..CM50,55,65..IV

ﾚｲﾄｳｼﾔ OR ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ

 1
27330-64140

1C,2C..CM5#,6#

ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1C,2C..CM5#,6#

12V 55A,70A

 1
90099-10140

1C,2C..CM5#,6#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1C,2C..CM50,55,65..IV

12V 70A

 1
27357-63040

1C,2C..CM5#,6#

12V 55A

 1
27357-63040

1C,2C..CM5#,6#

 1
27357-63020

1C,2C..CM5#,65..5H..IV

ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-64130

1C,2C..CM50,55,65..IV

12V 70A

 1
27359-64140

1C,2C..CM5#,6#

12V 55A

 1
27359-64140

1C,2C..CM5#,6#

 1
27359-64130

1C,2C..CM5#,65..5H..IV

ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011

1C,2C..CM5#,6#

12V 55A,70A

 1
27370-16011

1C,2C..CM5#,6#

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1C,2C,2Y..CM5#,6#,YM55,60

12V 45A,55A,70A

 2
27371-63020

1C,2C,2Y..CM5#,6#,YM55,60

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

1C,2C,2Y..CM5#,6#,YM55,60

12V 45A,55A,70A

 2
27443 - COVER, ALTERNATOR BEARING
27443-63020

1C,2C,2Y..CM5#,6#,YM55,60

12V 45A,55A,70A

 1
27443-63020

1C,2C,2Y..CM5#,6#,YM55,6#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

1C,2C..CM5#,6#

12V 55A,70A

 1
27700-63021

1C,2C..CM5#,6#

 1
29342A - PACKING, VACUUM PUMP
29341-64130

1C,2C..CM5#,6#

12V 55A,70A

 1
Common parts
27387-42020
27387-70171
27388-42010
27389-42010
27389-63020
90099-00167
90099-00197
90099-00959
90099-04966
90099-05119
90099-05172
90099-05232
90105-10133
90119-08365
90179-06158
93319-14025
