CM50-TBQDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )

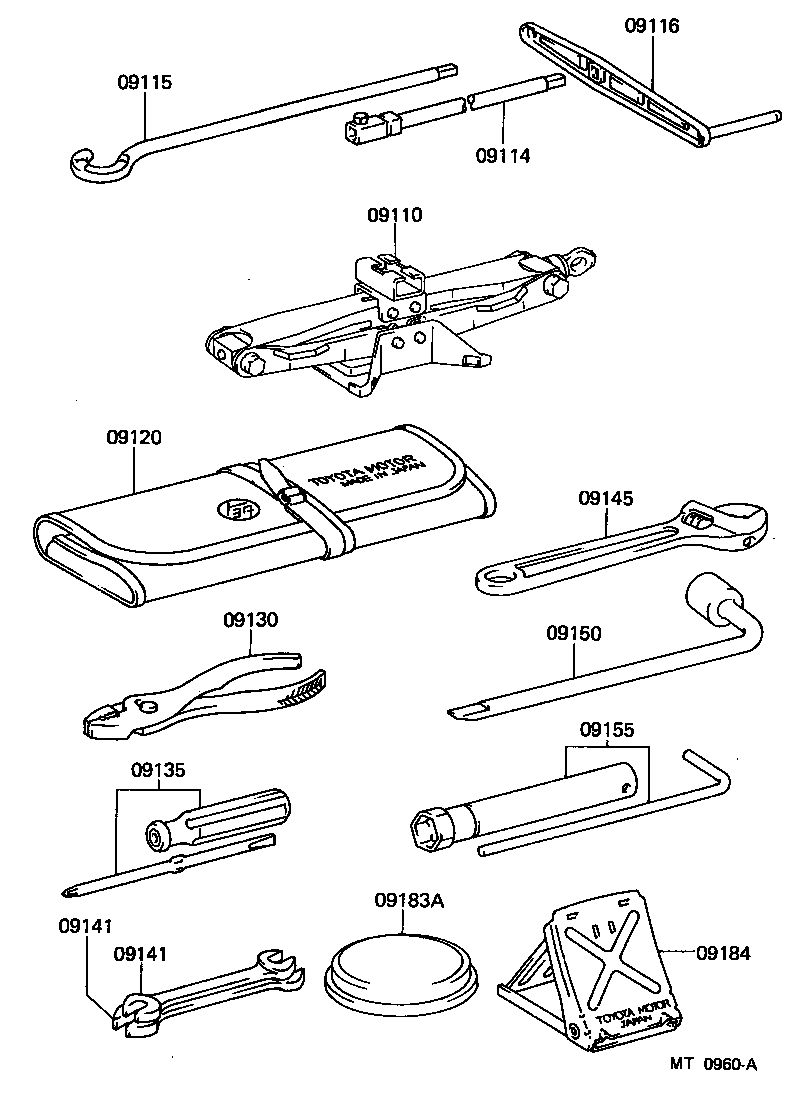

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09130 09135 09141 09141 09145 09150 09155 09183A 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-95700

CM5#,6#,KM5#,YM55,6#

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

CM5#,6#,KM5#,YM55,60

 2
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60030

CM5#,6#,KM5#,YM55,6#

 1
09116 - LEVER, JACK HANDLE
09116-35040

CM5#,6#,KM5#,YM55,60

 1
09120 - BAG, TOOL
09120-26021

CM50,51,55,KM5#,YM55

 1
09130 - PLIERS
99913-11500

CM5#,6#,KM5#,YM55,6#

 1
09135 - DRIVER, SCREW
99915-10700

CM5#,6#,KM5#,YM55,6#

 1
09141 - SPANNER
99914-10810

CM5#,6#,KM5#,YM55,60

8 X 10,8X10

 1
99914-11214

CM5#,6#,KM5#,YM55,60

12 X 14,12X14

 1
09141 - SPANNER
99914-10810

CM5#,6#,KM5#,YM55,60

8 X 10,8X10

 1
99914-11214

CM5#,6#,KM5#,YM55,60

12 X 14,12X14

 1
09145 - WRENCH, MONKEY
99911-11200

CM5#,6#,KM5#,YM55,60

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CM5#,6#,KM5#,YM55,6#

 1
09184 - STOPPER, WHEEL
09184-00010

CM5#,6#,KM5#,YM55,60

 2
