CM50-TBQDS (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Oct 1989
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )CM50,51,55,KM5#,YM55

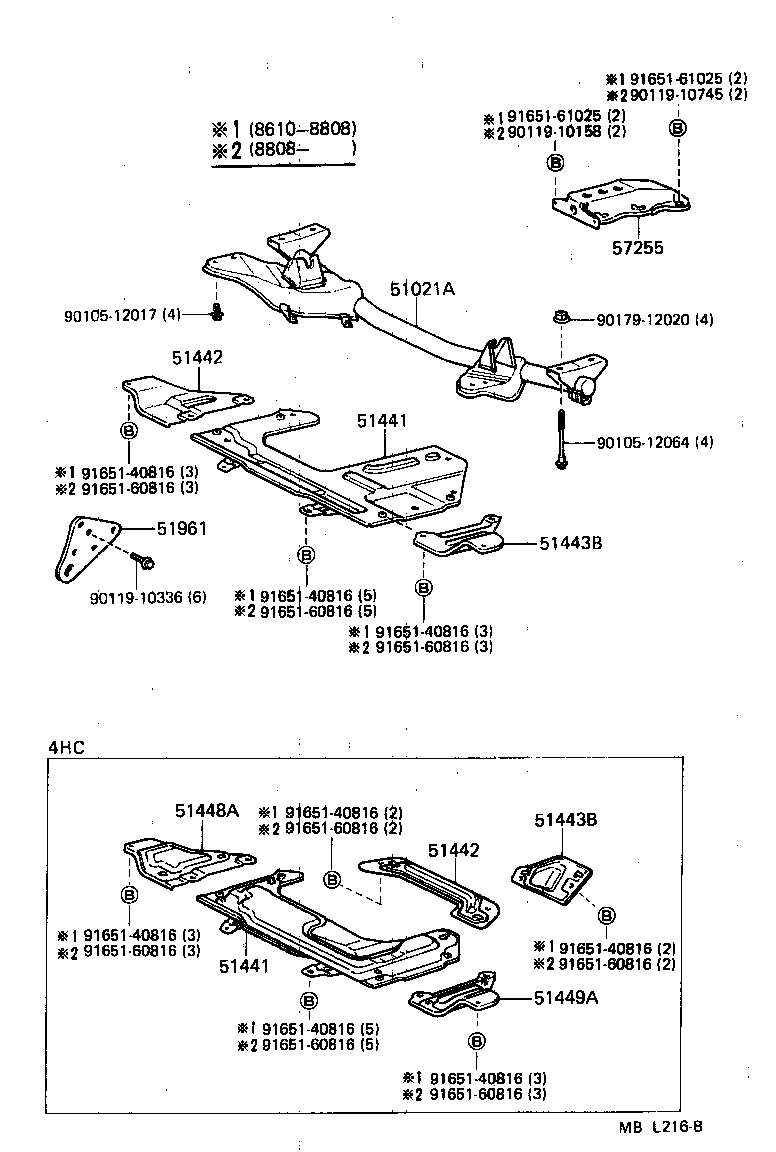

Click highlighted areas on diagram

diagram 51021A 51441 51441 51442 51442 51443B 51443B 51448A 51449A 51961 57255 9010512017 9010512064 9011910158 9011910336 9011910745 9017912020 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9165161025 9165161025
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-27030

CM50,51,55

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-95707

CM55..IV;CM50,51..5H;CM55..5H..CBU

 1
51405-95701

CM50,55..5H

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-95707

CM55..IV;CM50,51..5H;CM55..5H..CBU

 1
51405-95701

CM50,55..5H

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-95700

YM55;CM55..IV;CM55..5H..CBU;CM50,51,KM5#..3FC,3HC,4H,5F,5H

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-95700

YM55;CM55..IV;CM55..5H..CBU;CM50,51,KM5#..3FC,3HC,4H,5F,5H

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-95700

YM55;CM55..IV;CM55..5H..CBU;CM50,51,KM5#..3FC,3HC,4H,5F,5H

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-95700

YM55;CM55..IV;CM55..5H..CBU;CM50,51,KM5#..3FC,3HC,4H,5F,5H

 1
51961 - HOOK, NO.1
51961-95700

CM50,51,55,KM5#,YM55

 2
57255 - MEMBER, ENGINE REAR MOUNTING
57255-27010

CM5#..5H

 1
Common parts
90105-12017
90105-12064
90119-10158
90119-10336
90119-10745
90179-12020
91651-40816
91651-60816
91651-61025
