CM25-QDLT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )T2,T3

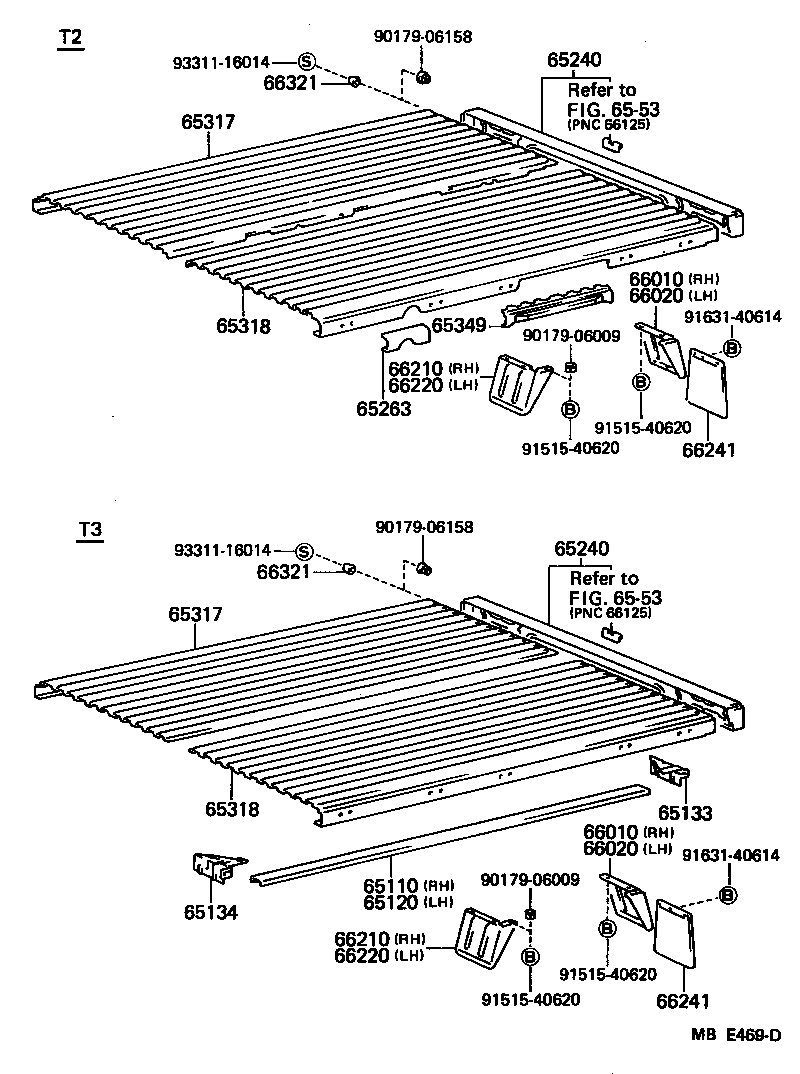

Click highlighted areas on diagram

diagram 65110 65120 65133 65134 65240 65240 65263 65317 65317 65318 65318 65349 6553 6553 66010 66010 66020 66020 66210 66210 66220 66220 66241 66241 66321 66321 9017906009 9017906009 9017906158 9017906158 9151540620 9151540620 9151540620 9151540620 9163140614 9163140614 9331116014 9331116014
Part # Description Qty Price
66241 - MUDGUARD, REAR
66241-87404

CM2#,KM2#,YM25..T2

 2
66241 - MUDGUARD, REAR
66241-87404

CM2#,KM2#,YM25..T2

 2
66321 - BUMPER, GATE RUBBER
66303-87403

CM2#,KM2#,YM25..TR

 6
66321 - BUMPER, GATE RUBBER
66303-87403

CM2#,KM2#,YM25..TR

 6
Common parts
90179-06009
90179-06158
91515-40620
91631-40614
93311-16014
Linked diagrams
6553
