CM20V-QDZT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)MTP,S

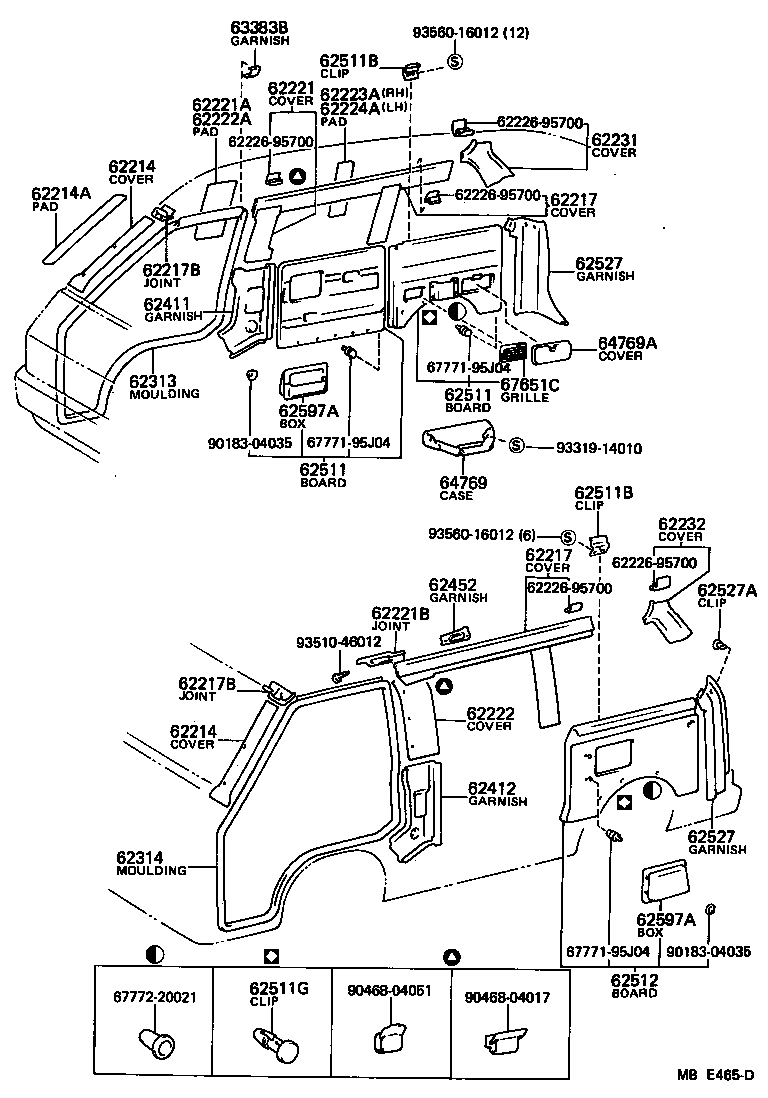

Click highlighted areas on diagram

diagram 62214 62214 62214A 62217 62217 62217B 62217B 62221 62221A 62221B 62222 62222A 62223A 62224A 6222695700 6222695700 6222695700 6222695700 6222695700 62231 62232 62313 62314 62411 62412 62452 62511 62511 62511B 62511B 62511G 62512 62527 62527 62527A 62597A 62597A 63383B 64769 64769A 67651C 6777195J04 6777195J04 6777195J04 6777220021 9018304035 9018304035 9046804017 9046804051 9331914010 9351046012 9356016012 9356016012
Part # Description Qty Price
62214A - PAD, FRONT PILLAR, INNER
62418-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S

 2
62221A - PAD, CENTER PILLAR, INNER RH
62423-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S

 1
62222A - PAD, CENTER PILLAR, INNER LH
62423-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S

 1
62223A - PAD, QUARTER LOCK PILLAR, INNER RH
62425-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S

 1
62224A - PAD, QUARTER LOCK PILLAR INNER LH
62425-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-9570305

CM2#,KM21,YM20,25..TR,V

BEIGE,BEIGE

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-9570305

CM2#,KM21,YM20,25..TR,V

BEIGE,BEIGE

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-9570616

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

BROWN,BROWN

 1
62411-9570604

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

BLUE GRAY,BLUE

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-9570504

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

BLUE GRAY,BLUE

 1
62412-9570516

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

BROWN,BROWN

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95737

CM20,YM20..V4D..(05S,06S)

FR

 1
62140-9572606

CM20,YM21..MTP,S,XL

RR,BROWN,BROWN

 1
62140-9572604

CM20,YM21..MTP,S,XL

RR,BLUE GRAY,BLUE

 1
62141-95721

CM20,KM21..VSG..DLX..WT

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95737

CM20,YM20..V4D..(05S,06S)

FR

 1
62140-9572606

CM20,YM21..MTP,S,XL

RR,BROWN,BROWN

 1
62140-9572604

CM20,YM21..MTP,S,XL

RR,BLUE GRAY,BLUE

 1
62141-95721

CM20,KM21..VSG..DLX..WT

RR

 1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
62168-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S,XL

LH

 3
62169-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S,XL

RH

 6
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
62168-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S,XL

LH

 3
62169-95700

CM20,TM20,YM21..CS7,FXV,GXL,MTP,S,XL

RH

 6
62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-0901556

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

RR,W/O CARPET,BROWN,BROWN

 2
90467-1003405

CM20,KM21..V..(DLX,STD)

BEIGE,REDDISH BROWN

 1
90467-0901546

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

FR,W/CARPET,BROWN,BROWN

 9
90467-0901514

CM20,YM21..CS7,FXV,GXL,MTP,S,XL

BLUE,BLUE

 11
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95776

CM20,KM21..06S..DLX..WT

W/*RW

 1
62150-95777

CM20,KM21..06S..DLX..WT

 1
62527 - GARNISH, REAR PILLAR SIDE
62471-9570116

CM20,YM21..CS7,FXV,GXL,MTP,S

RH,BROWN,BROWN

 1
62472-9570104

CM20,YM21..CS7,FXV,GXL,MTP,S

LH,BLUE GRAY,BLUE

 1
62472-9570116

CM20,YM21..CS7,FXV,GXL,MTP,S

LH,BROWN,BROWN

 1
62471-9570104

CM20,YM21..CS7,FXV,GXL,MTP,S

RH,BLUE GRAY,BLUE

 1
62527 - GARNISH, REAR PILLAR SIDE
62471-9570116

CM20,YM21..CS7,FXV,GXL,MTP,S

RH,BROWN,BROWN

 1
62472-9570104

CM20,YM21..CS7,FXV,GXL,MTP,S

LH,BLUE GRAY,BLUE

 1
62472-9570116

CM20,YM21..CS7,FXV,GXL,MTP,S

LH,BROWN,BROWN

 1
62471-9570104

CM20,YM21..CS7,FXV,GXL,MTP,S

RH,BLUE GRAY,BLUE

 1
62527A - CLIP, REAR PILLAR SIDE GARNISH
90467-0601414

CM20,YM21..CS7,FXV,GXL,MTP,S

BLUE GRAY,BLUE

 4
90467-0601436

CM20,YM21..CS7,FXV,GXL,MTP,S

BROWN,BROWN

 4
63383B - GARNISH, FRONT DOOR OPENING TRIM EDGE
63383-9570303

CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S)

GRAY,GRAY

 1
63383-9570308

CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S)

IVORY,IVORY

 1
64769A - COVER ASSY, SIDE TRIM TOOL BAG
64760-9570004

CM20,YM21..FXV,GXL,MTP,S,XL

BLUE GRAY,BLUE

 1
Common parts
62226-95700
67771-95J04
67772-20021
90183-04035
90468-04017
90468-04051
93319-14010
93510-46012
93560-16012
