CM20V-QDZT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8210- )

Click highlighted areas on diagram

diagram 44608 44610 44610 44610K 44618 44629 44642 44663 44696 44730 44758 9017908038 9017908038
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-32010

CM2#,KM21,YM2#

 1
Common parts
90179-08038

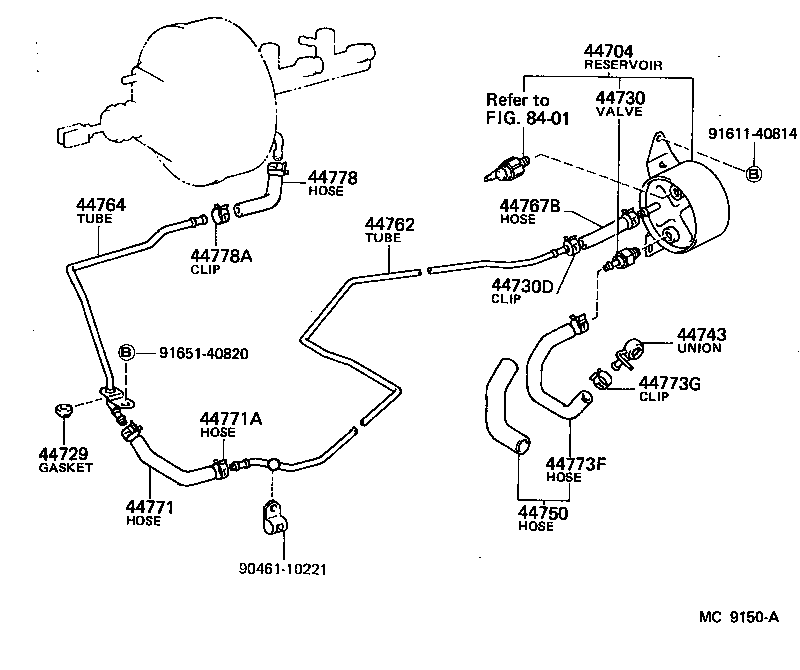

ILLUST NO. 2 OF 2(8210-8508)CM20..V,WG

Click highlighted areas on diagram

diagram 44704 44729 44730 44730D 44743 44750 44762 44764 44767B 44771 44771A 44773F 44773G 44778 44778A 8401 9046110221 9161140814 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44740-27020

CM20..V,WG

 1
44729 - GASKET, VACUUM TUBE
44729-25010

CM2#,KM2#,TM20,YM2#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09065

CM2#

W/COOLER OR COLD SPEC

 1
44750 - HOSE ASSY, VACUUM
44750-27010

CM20..V,WG

 1
44762 - TUBE, BOOSTER VACUUM
44762-27010

CM20..V,WG

 1
44764 - TUBE, BOOSTER VACUUM
44764-27040

CM20,KM21,YM20,21..V,WG

 1
44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE)
90445-17822

CM20..V,WG

 1
95441-09120

CM20..V,WG

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27020

CM20,KM2#,TM20,YM20,21..V,WG

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16141

CM2#,KM2#,TM20,YM2#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-27030

CM20..V,WG

 1
44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16141

CM2#,KM2#,TM20,YM2#

 2
Common parts
90461-10221
91611-40814
91651-40820
Linked diagrams
8401
