CM20V-QDZT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C,2C

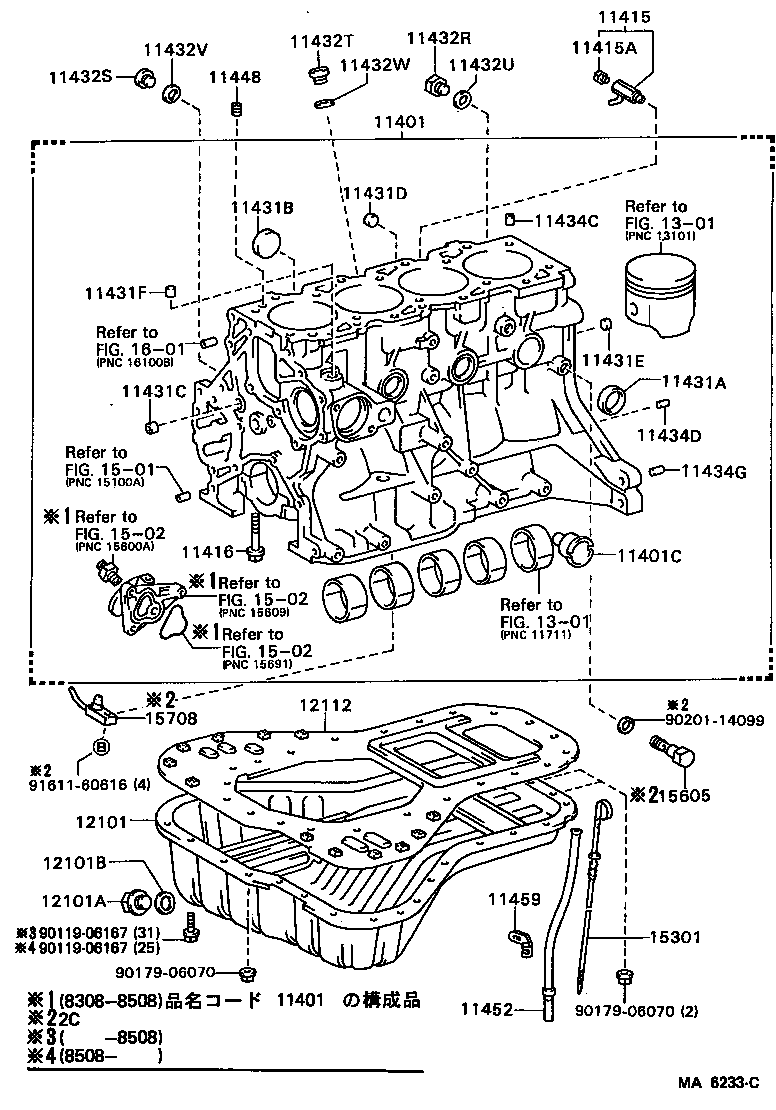

Click highlighted areas on diagram

diagram 11401 11401 11401C 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11431F 11432R 11432S 11432T 11432U 11432V 11432W 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12112 1301 1301 1501 1502 1502 1502 15301 15605 15708 1601 9011906167 9011906167 9017906070 9017906070 9020114099 9161160616
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69125

1C..CM2#

 1
11401-69096

1C..CM2#

 1
11401-69126

1C..CM2#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69125

1C..CM2#

 1
11401-69096

1C..CM2#

 1
11401-69126

1C..CM2#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1C..CM2#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-10023

1C..CM2#

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
90331-17001

1C..CM2#

OD=16.8

 1
12101 - PAN SUB-ASSY, OIL
12101-64010

1C..CM2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1C..CM2#

*18-1.5PX12-10

 1
90341-18089

1C..CM2#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1C..CM2#

ID=18

 1
90430-18244

1C..CM2#

ID=18

 1
90430-18244

1C..CM2#

ID=18

 1
90430-18013

1C..CM2#

 1
12112 - PAN, OIL NO.2
12112-64010

1C..CM2#

 1
Common parts
90119-06167
90179-06070
90201-14099
91611-60616
Linked diagrams
1301
1501
1502
1601
