CM20V-QDZE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)CM20..V,WG..ST

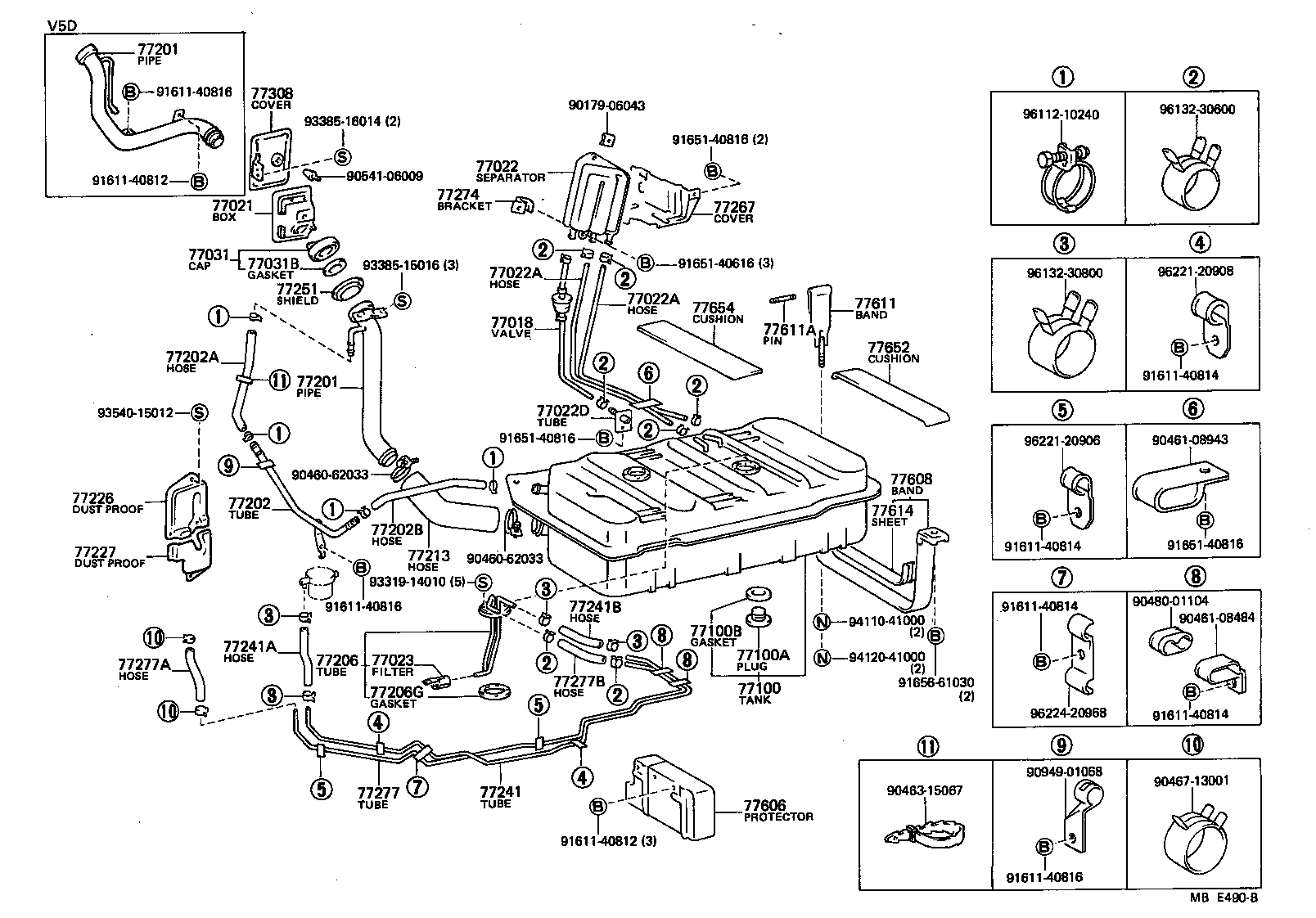

Click highlighted areas on diagram

diagram 77018 77021 77022 77022A 77022A 77022D 77023 77031 77031B 77100 77100A 77100B 77201 77201 77202 77202A 77202B 77206 77206G 77213 77226 77227 77241 77241A 77241B 77251 77267 77274 77277 77277A 77277B 77308 77606 77608 77611 77611A 77614 77652 77654 9017906043 9046062033 9046062033 9046108484 9046108943 9046315067 9046713001 9048001104 9054106009 9094901068 9161140812 9161140812 9161140814 9161140814 9161140814 9161140814 9161140816 9161140816 9161140816 9165140616 9165140816 9165140816 9165140816 9165661030 9331914010 9338515016 9338516014 9354015012 9411041000 9412041000 9611210240 9613230600 9613230800 9622120906 9622120908 9622420968
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-27020

CM20..V,WG

 1
77021 - BOX ASSY, FUEL TANK INLET
77301-95700

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D

 1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77271-28011

CM20,KM2#,TM20,YM20,21..V,WG

 1
77022D - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
77263-26020

CM20..V,WG

 1
77031 - CAP ASSY, FUEL TANK
77310-35061

CM20..V,WG

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

CM20,KM2#,TM20,YM20,21..V,WG

 1
77100 - TANK ASSY, FUEL
77001-27080

CM20..(V,WG)..ST

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

CM20..(V,WG)..ST

 1
77100B - GASKET(FOR FUEL TANK)
90430-20006

CM20..(V,WG)..ST

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-27101

CM20,YM21..WG;CM20,KM21,YM20..V4D..ST

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-27101

CM20,YM21..WG;CM20,KM21,YM20..V4D..ST

 1
77202 - TUBE SUB-ASSY, BREATHER
77203-27110

CM20..(V,WG)..ST

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
90445-24022

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-27010

CM20..(V,WG)..ST

 1
77213 - HOSE, FUEL TANK SUB INLET
77259-27020

CM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D..ST

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-27100

CM20..(V,WG)..ST

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

CM20..V,WG

*H,L=200,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

CM20..(V,WG)..ST

*H,L=260,内径=7.6

 1
95332-08030

CM20..V,WG

*H,L=260,内径=7.6

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

CM20,KM2#,TM20,YM20,21..V,WG

 1
77267 - COVER, FUEL EVAPORATIVE TUBE
77267-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
77274 - BRACKET, FUEL EVAPORATIVE SEPARATOR
77274-27010

CM20,KM2#,TM20,YM20,21..V,WG

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-27080

CM20..(V,WG)..ST

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

CM20..V,WG

*H,L=240

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

CM20..(V,WG)..ST

*H,L=300

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77310-95700

CM20,KM2#,TM20,YM20,21..V,WG

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-27010

CM20,KM21,YM20,21..(V,WG)..ST

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77602-27013

CM20,KM21,YM20,21..(V,WG)..ST

 2
77611 - BAND, FUEL TANK
77601-27020

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

CM2#,KM2#,TM20,YM2#

 2
77614 - SEAT, FUEL TANK BAND
77614-36040

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 2
77681-27020

CM20,KM21,YM20,21..(V,WG)..ST

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-27020

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 2
77651-27100

CM20,KM21,YM20,21..(V,WG)..ST

 2
77654 - CUSHION, FUEL TANK, NO.2
77651-27030

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 1
77651-27090

CM20,KM21,YM20,21..(V,WG)..ST

 1
Common parts
90179-06043
90460-62033
90461-08484
90461-08943
90463-15067
90467-13001
90480-01104
90541-06009
90949-01068
91611-40812
91611-40814
91611-40816
91651-40616
91651-40816
91656-61030
93319-14010
93385-15016
93385-16014
93540-15012
94110-41000
94120-41000
96112-10240
96132-30600
96132-30800
96221-20906
96221-20908
96224-20968
