CM20V-QDZE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

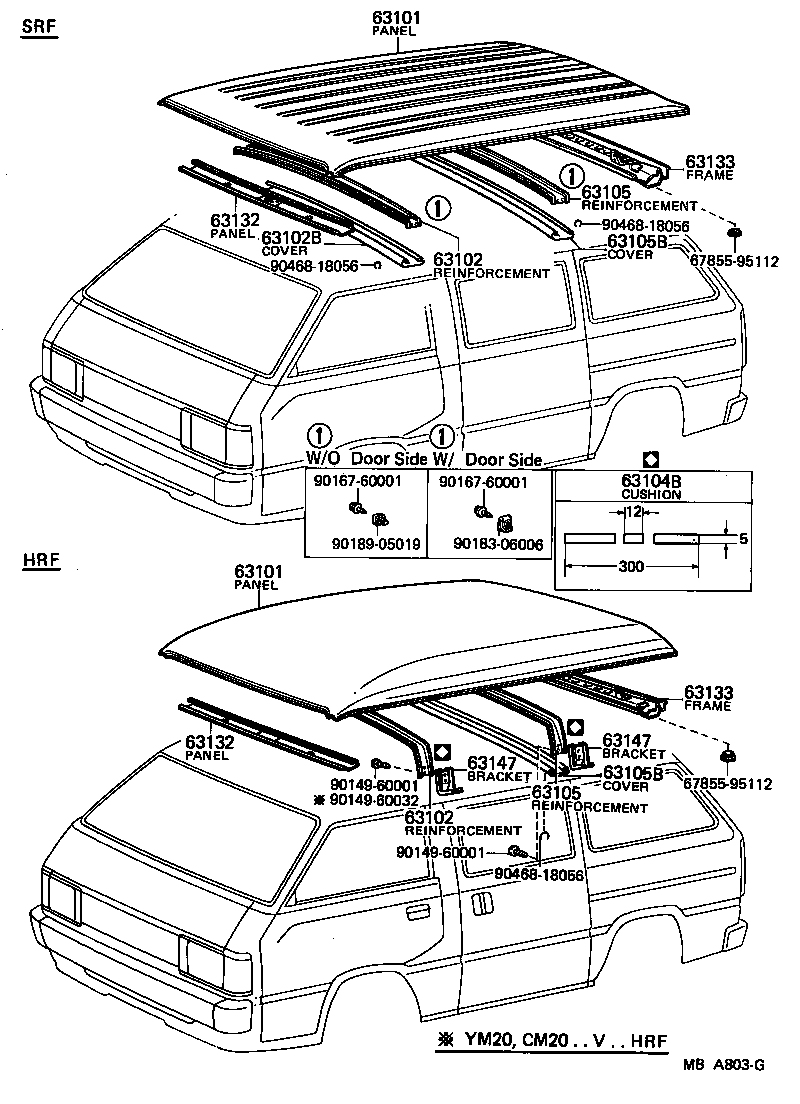

ILLUST NO. 1 OF 2(7910-8508)HRF,SRF

Click highlighted areas on diagram

diagram 63101 63101 63102 63102 63102B 63104B 63105 63105 63105B 63105B 63132 63132 63133 63133 63147 63147 6785595112 6785595112 9014960001 9014960001 9014960032 9016760001 9016760001 9018306006 9018905019 9046818056 9046818056 9046818056
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95705

CM20,KM21,YM20,21..HRF..(CS7,DLX,GXL,SUP,SW,XL)

 1
63101 - PANEL SUB-ASSY, ROOF
63111-95705

CM20,KM21,YM20,21..HRF..(CS7,DLX,GXL,SUP,SW,XL)

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63150-95707

CM20,YM20..V..HRF

COLD SPEC

 1
63150-95709

CM20,YM20..HRF..VSG

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63150-95707

CM20,YM20..V..HRF

COLD SPEC

 1
63150-95709

CM20,YM20..HRF..VSG

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63108-95701

CM20,YM20..V..HRF

FR,RH RR

 3
63155-95700

CM20,YM20..V..HRF

LH RR

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63108-95701

CM20,YM20..V..HRF

FR,RH RR

 3
63155-95700

CM20,YM20..V..HRF

LH RR

 1
Common parts
67855-95112
90149-60001
90149-60032
90167-60001
90183-06006
90189-05019
90468-18056

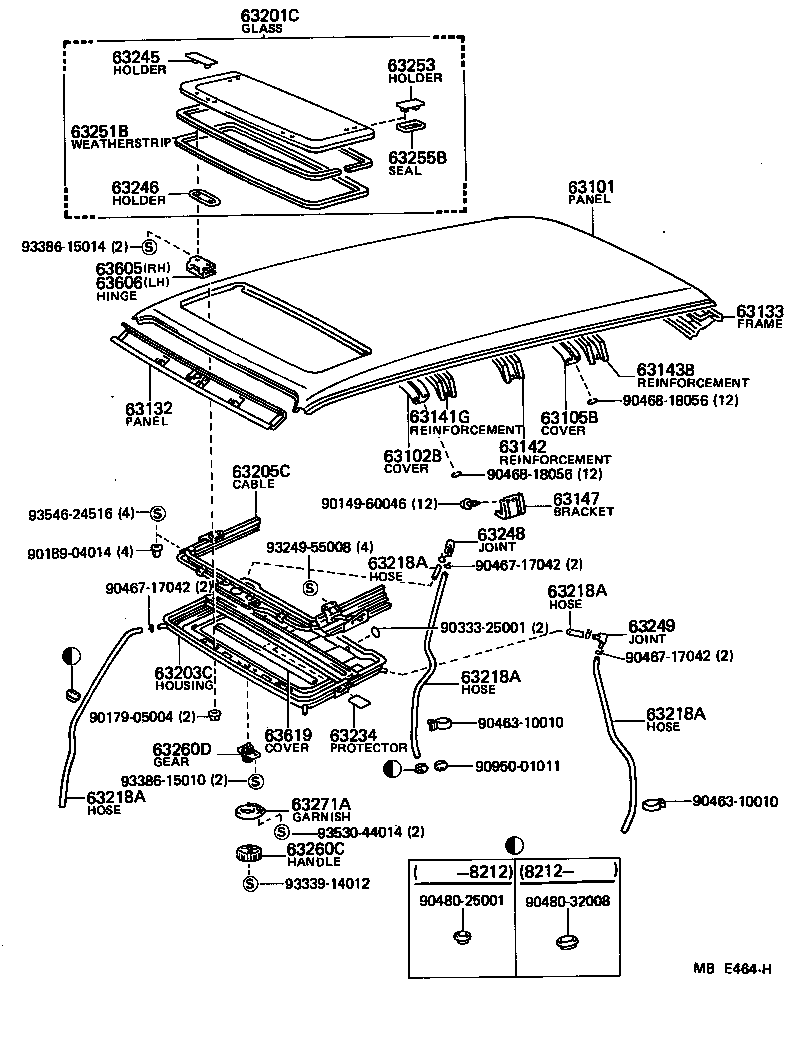

(8210-8508)S

Click highlighted areas on diagram

diagram 63101 63102B 63105B 63132 63133 63141G 63142 63143B 63147 63201C 63203C 63205C 63218A 63218A 63218A 63218A 63218A 63234 63245 63246 63248 63249 63251B 63253 63255B 63260C 63260D 63271A 63605 63606 63619 9014960046 9017905004 9018904014 9033325001 9046310010 9046310010 9046717042 9046717042 9046717042 9046818056 9046818056 9048025001 9048032008 9095001011 9324955008 9333914012 9338615010 9338615014 9353044014 9354624516
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95705

CM20,KM21,YM20,21..HRF..(CS7,DLX,GXL,SUP,SW,XL)

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63108-95701

CM20,YM20..V..HRF

FR,RH RR

 3
63155-95700

CM20,YM20..V..HRF

LH RR

 1
63271A - GARNISH, TILT ROOF LOCK
63271-9570108

CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S)

IVORY,IVORY

 1
63271-9570103

CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S)

GRAY,GRAY

 1
Common parts
90149-60046
90179-05004
90189-04014
90333-25001
90463-10010
90467-17042
90468-18056
90480-25001
90480-32008
90950-01011
93249-55008
93339-14012
93386-15010
93386-15014
93530-44014
93546-24516
