CM20V-QDZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

Click highlighted areas on diagram

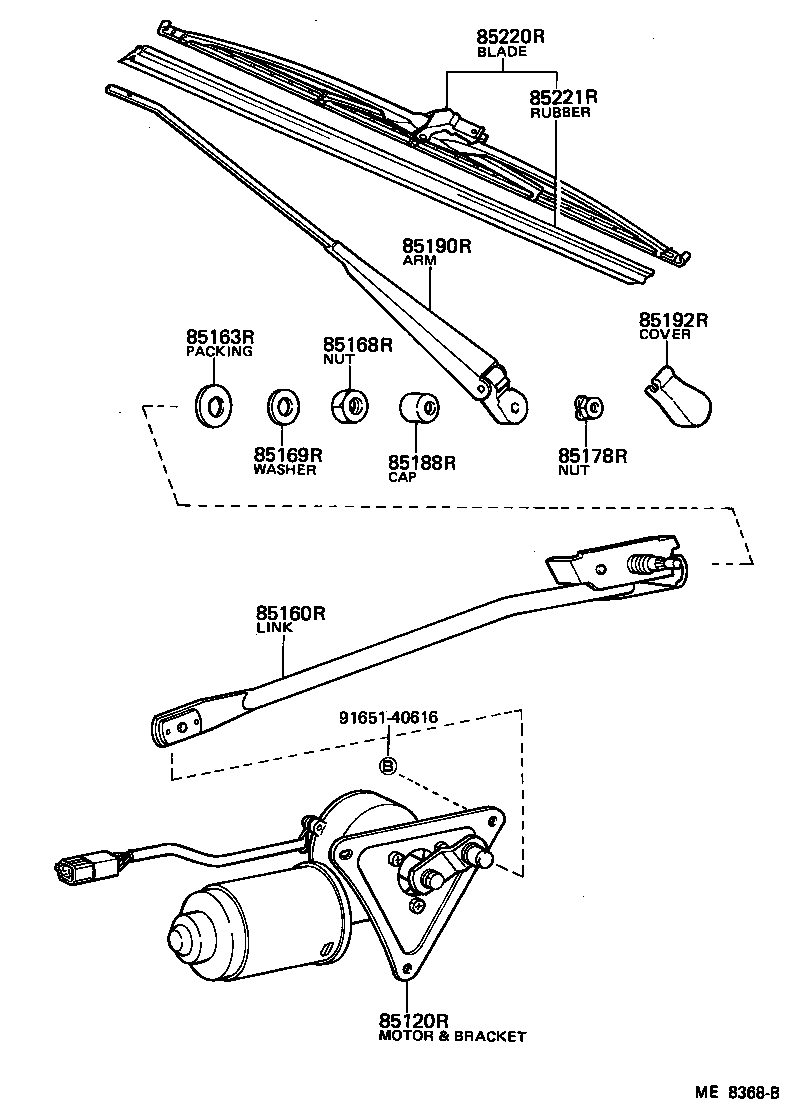

diagram 85120R 85160R 85163R 85168R 85169R 85178R 85188R 85190R 85192R 85220R 85221R 9165140616
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-95703

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85160R - LINK ASSY, REAR WIPER
85160-95703

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85163R - PACKING, REAR WIPER PIVOT, NO.1
85185-25040

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85168-55010

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90209-12002

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85247-87501

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85190R - ARM ASSY, REAR WIPER
85190-95712

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85192R - COVER, REAR WIPER ARM
85195-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85220R - BLADE ASSY, REAR WIPER
85220-95711

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
85221R - BLADE, REAR WIPER
85221-95A02

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

 1
Common parts
91651-40616
