CM20V-QDZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG

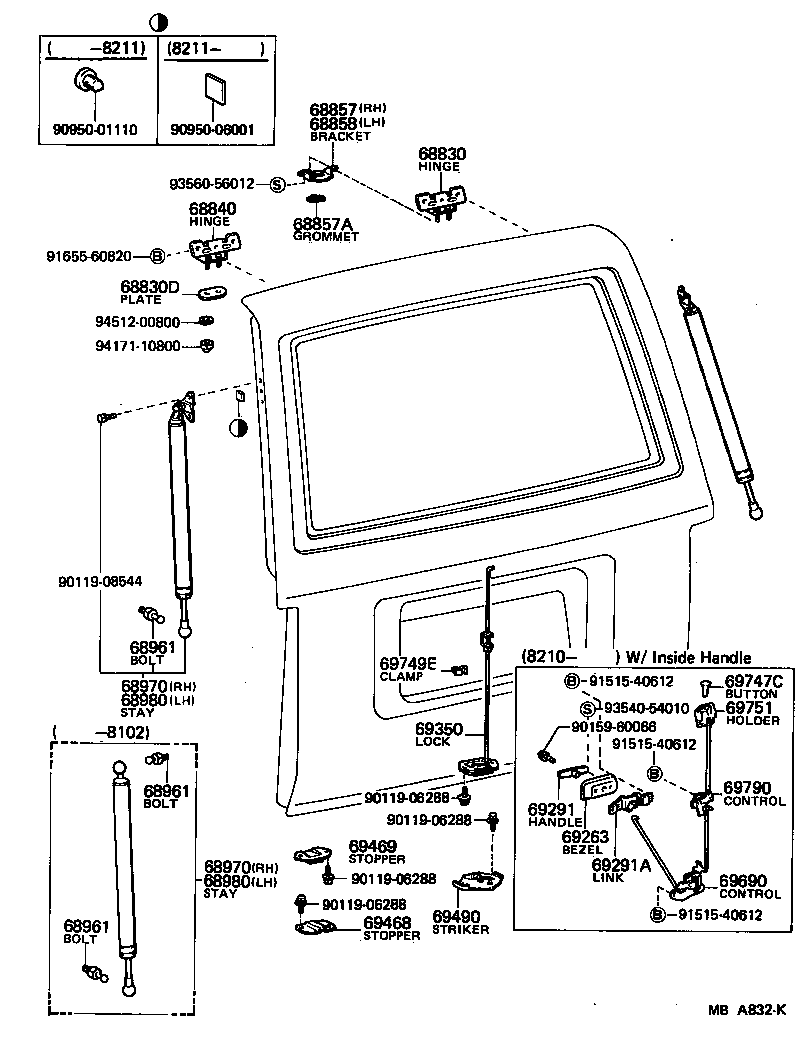

Click highlighted areas on diagram

diagram 68830 68830D 68840 68857 68857A 68858 68961 68961 68961 68970 68970 68980 68980 69263 69291 69291A 69350 69468 69469 69490 69690 69747C 69749E 69751 69790 9011906288 9011906288 9011906288 9011906288 9011908544 9015960066 9095001110 9095006001 9151540612 9151540612 9151540612 9165560820 9354054010 9356056012 9417110800 9451200800
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-95701

CM20,KM2#,TM20,YM20,21..V,WG

 1
68830D - PLATE, BACK DOOR HINGE
68825-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-95701

CM20,KM2#,TM20,YM20,21..V,WG

 1
68970 - STAY ASSY, BACK DOOR, RH
68950-29075

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

W/RR WIPER,MAGNET LOCK

 1
68970 - STAY ASSY, BACK DOOR, RH
68950-29075

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

W/RR WIPER,MAGNET LOCK

 1
68980 - STAY ASSY, BACK DOOR
68960-29035

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

W/RR WIPER,MAGNET LOCK

 1
68980 - STAY ASSY, BACK DOOR
68960-29035

CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL)

W/RR WIPER,MAGNET LOCK

 1
69350 - LOCK ASSY, BACK DOOR
69350-95701

CM20,KM21..V

 1
69468 - STOPPER, BACK DOOR SIDE MALE
69469-95700

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
69468-95701

CM20,KM2#,TM20,YM20,21..V,WG

RH

 1
69469 - STOPPER, BACK DOOR SIDE FEMALE
69407-95701

CM20,KM2#,TM20,YM20,21..V,WG

RH

 1
69408-95701

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-95701

CM20,KM2#,TM20,YM20,21..V,WG

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

CM20,KM21..V

 1
Common parts
90119-06288
90119-08544
90159-60066
90950-01110
90950-06001
91515-40612
91655-60820
93540-54010
93560-56012
94171-10800
94512-00800
