CM20V-QDZ (1982)
Toyota Lite/Townace Truck
Production
Oct 1982
-
Aug 1985
Engine
1C
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )1C,2C

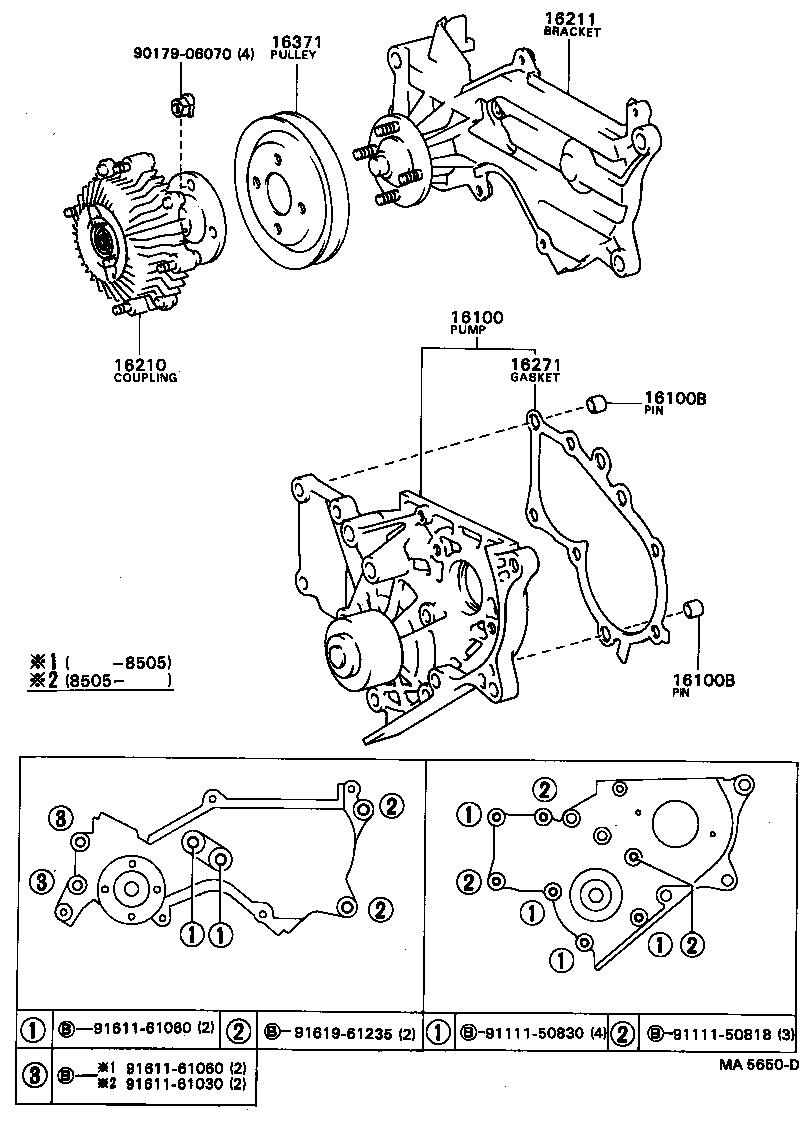

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16211 - BRACKET, FLUID COUPLING | ||||
| 16307-64011 |
1C..CM2# |
1 | ||
| 16307-64010 |
1C..CM2# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-64020 |
1C..CM2# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91111-50818 | ||||
| 91111-50830 | ||||
| 91611-61030 | ||||
| 91611-61060 | ||||
| 91619-61235 | ||||
