CM20V-QDZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)1C

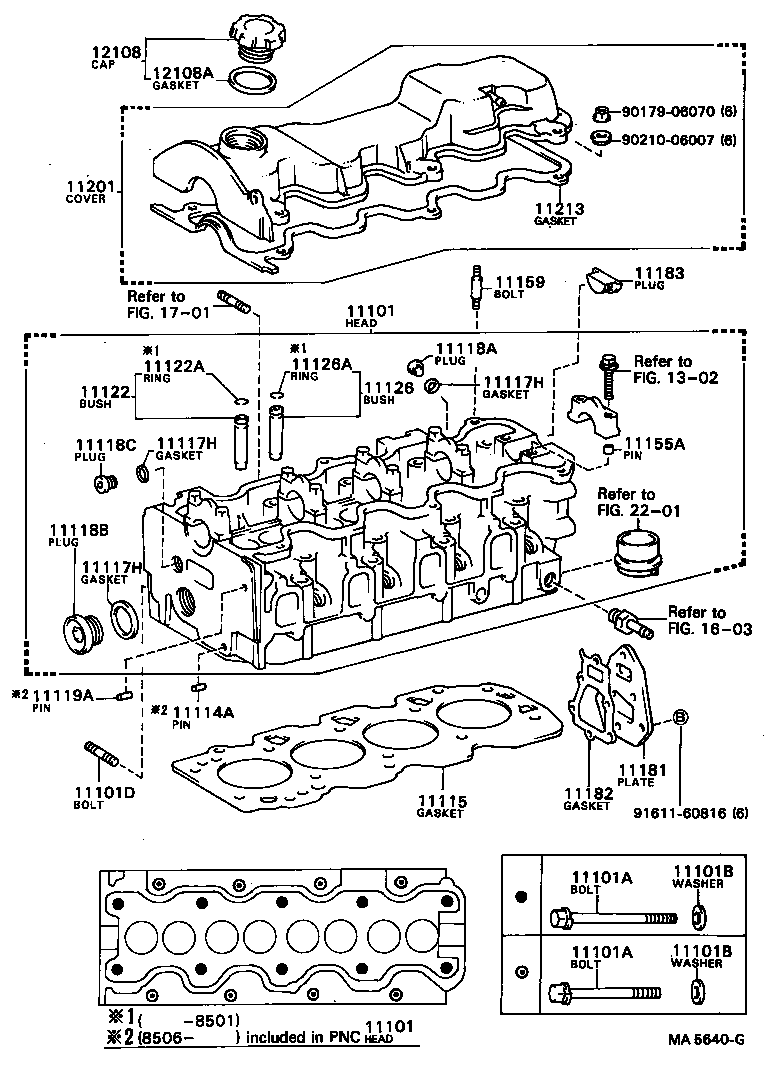

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11101D 11114A 11115 11117H 11117H 11117H 11118A 11118B 11118C 11119A 11122 11122A 11126 11126A 11155A 11159 11181 11182 11183 11201 11213 12108 12108A 1302 1603 1701 2201 9017906070 9021006007 9161160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64012

1C..CM2#

 1
11101-64011

1C..CM2#

 1
11101-64010

1C..CM2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11011

1C..CM2#

*11-1.25PX123-30

 8
90105-11012

1C..CM2#

*11-1.25PX145-30

 10
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11011

1C..CM2#

*11-1.25PX123-30

 8
90105-11012

1C..CM2#

*11-1.25PX145-30

 10
11115 - GASKET, CYLINDER HEAD
11115-64050

1C..CM2#

 1
11115-64010

1C..CM2#

 1
11117H - GASKET(FOR WATER HOLE)
90430-12005

1C..CM2#

P.N.C.11118C

 2
11117H - GASKET(FOR WATER HOLE)
90430-12005

1C..CM2#

P.N.C.11118C

 2
11117H - GASKET(FOR WATER HOLE)
90430-12005

1C..CM2#

P.N.C.11118C

 2
11122 - BUSH, INTAKE VALVE GUIDE
11126-24020

1C..CM2#

STD

 4
11127-24020

1C..CM2#

O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

1C..CM2#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-24020

1C..CM2#

O/S 0.05

 4
11127-64020

1C..CM2#

O/S 0.05

 4
11126-24020

1C..CM2#

STD

 4
11126-64020

1C..CM2#

STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

1C..CM2#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69075

1C..CM2#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

1C..CM2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1C,2C..CM2#

 1
Common parts
90179-06070
90210-06007
91611-60816
Linked diagrams
1302
1603
1701
2201
