CM20V-QDZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8604)

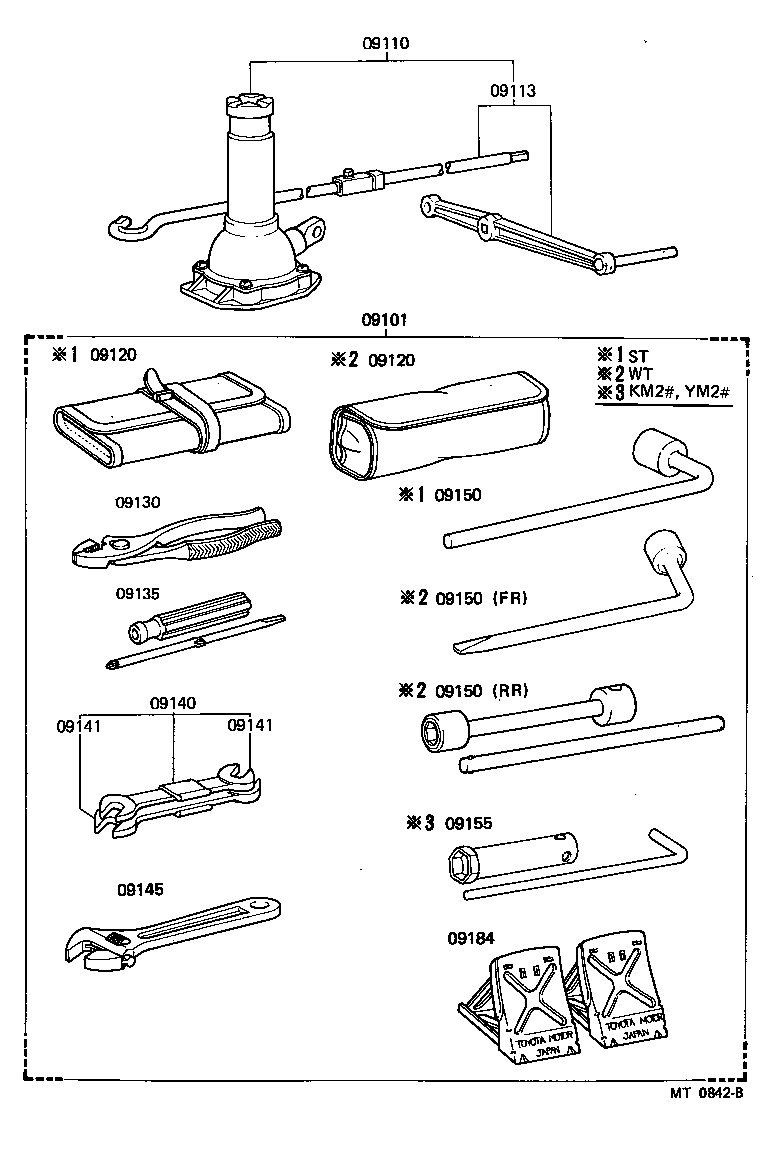

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09120 09130 09135 09140 09141 09141 09145 09150 09150 09150 09155 09184
Part # Description Qty Price
09110 - JACK ASSY
09110-27030

CM2#,KM2#,TM20,YM2#

 1
09113 - HANDLE, JACK
09113-27020

CM2#,KM2#,TM20,YM2#

 1
09120 - BAG, TOOL
09120-26021

CM20,KM2#,TM20,YM20,21..ST

 1
09120 - BAG, TOOL
09120-26021

CM20,KM2#,TM20,YM20,21..ST

 1
09135 - DRIVER, SCREW
99915-10700

CM2#,KM2#,TM20,YM2#

 1
09140 - SPANNER SET
09140-27010

CM2#,KM2#,TM20,YM2#

 1
09141 - SPANNER
99914-11417

CM2#,KM2#,TM20,YM2#

14 X 17,14X17

 1
99914-11012

CM2#,KM2#,TM20,YM2#

10 X 12,10X12

 1
09141 - SPANNER
99914-11417

CM2#,KM2#,TM20,YM2#

14 X 17,14X17

 1
99914-11012

CM2#,KM2#,TM20,YM2#

10 X 12,10X12

 1
09145 - WRENCH, MONKEY
99911-10200

CM2#,KM2#,TM20,YM2#

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CM20,KM2#,TM20,YM20,21..ST

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CM20,KM2#,TM20,YM20,21..ST

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CM20,KM2#,TM20,YM20,21..ST

 1
09184 - STOPPER, WHEEL
09184-00010

CM2#,KM2#,TM20,YM2#

 2
