CM20V-QDFE (1983)
Toyota Lite/Townace Truck
Production
Aug 1983
-
Aug 1985
Engine
1C
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)

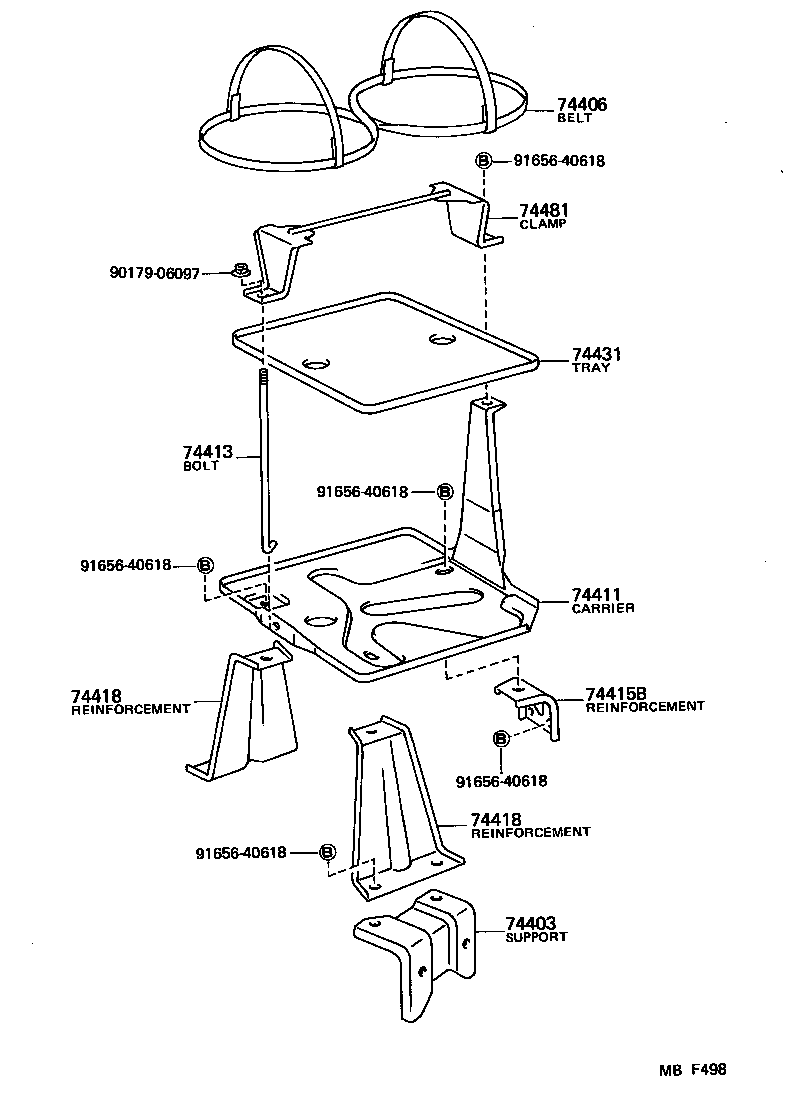

(8308-8310)CM20..V5D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74403 - SUPPORT SUB-ASSY, BATTERY CARRIER | ||||
| 74403-95700 |
CM20..V5D |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95708 |
CM20..V5D 50D20 |
1 | ||
| 74411-95709 |
CM20..V5D NX110-5 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95701 |
CM20..V5D 50D20 |
1 | ||
| 74451-95700 |
CM20..V5D NX110-5 |
1 | ||
| 74415B - REINFORCEMENT, BATTERY BRACKET, REAR | ||||
| 74415-95705 |
CM20..V5D 50D20 |
1 | ||
| 74418 - REINFORCEMENT, BATTERY BRACKET, FRONT | ||||
| 74418-95705 |
CM20..V5D 50D20 |
2 | ||
| 74418-95706 |
CM20..V5D NX110-5 |
2 | ||
| 74418 - REINFORCEMENT, BATTERY BRACKET, FRONT | ||||
| 74418-95705 |
CM20..V5D 50D20 |
2 | ||
| 74418-95706 |
CM20..V5D NX110-5 |
2 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-89108 |
CM20..V5D 50D20 |
1 | ||
| 74431-14030 |
CM20..V5D NX110-5 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74406-95704 |
CM20..V5D 50D20 |
1 | ||
| 74406-95705 |
CM20..V5D NX110-5 |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91656-40618 | ||||

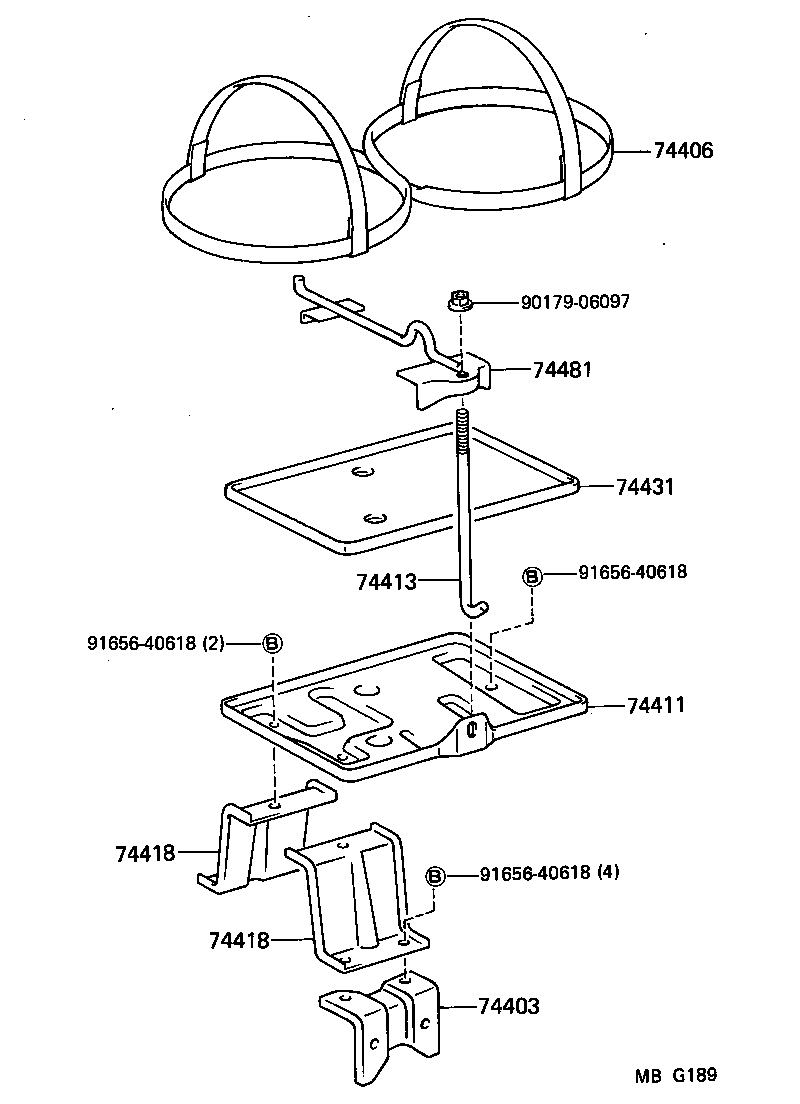

(8310-8508)CM20..V5D ; (8406-8508)CM20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74403 - SUPPORT SUB-ASSY, BATTERY CARRIER | ||||
| 74403-95700 |
CM20..V5D |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74410-95708 |
CM20..V5D 50D20 |
1 | ||
| 74411-95709 |
CM20..V5D NX110-5 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-95701 |
CM20..V5D 50D20 |
1 | ||
| 74451-95700 |
CM20..V5D NX110-5 |
1 | ||
| 74418 - REINFORCEMENT, BATTERY BRACKET, FRONT | ||||
| 74418-95705 |
CM20..V5D 50D20 |
2 | ||
| 74418-95706 |
CM20..V5D NX110-5 |
2 | ||
| 74418 - REINFORCEMENT, BATTERY BRACKET, FRONT | ||||
| 74418-95705 |
CM20..V5D 50D20 |
2 | ||
| 74418-95706 |
CM20..V5D NX110-5 |
2 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-89108 |
CM20..V5D 50D20 |
1 | ||
| 74431-14030 |
CM20..V5D NX110-5 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74406-95704 |
CM20..V5D 50D20 |
1 | ||
| 74406-95705 |
CM20..V5D NX110-5 |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91656-40618 | ||||
