CM20V-QDE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)1C..CM20..V,WG

Click highlighted areas on diagram

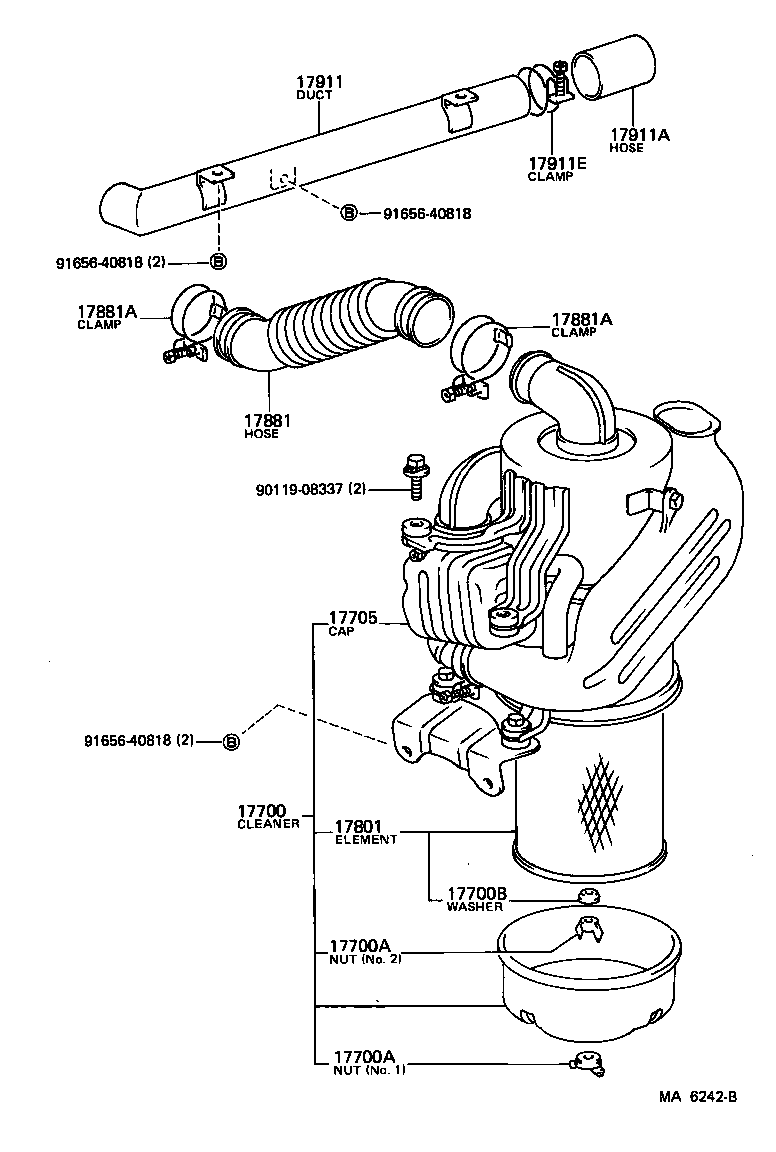

diagram 17700 17700A 17700A 17700B 17705 17801 17881 17881A 17881A 17911 17911A 17911E 9011908337 9165640818 9165640818 9165640818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64050

1C..CM20..V,WG

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

1C..CM20..V,WG

NO.2

 1
90175-06003

1C..CM20..V,WG

NO.1

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

1C..CM20..V,WG

NO.2

 1
90175-06003

1C..CM20..V,WG

NO.1

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08024

1C..CM20..V,WG

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64040

1C..CM20..V,WG

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64030

1C..CM20..V,WG

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64030

1C..CM20..V,WG

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

1C..CM20..V,WG

AIR CLEANER SIDE

 1
96111-10670

1C..CM20..V,WG

INTAKE MANIFOLD SIDE

 1
96111-10710

1C..CM20..V,WG

AIR CLEANER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

1C..CM20..V,WG

AIR CLEANER SIDE

 1
96111-10670

1C..CM20..V,WG

INTAKE MANIFOLD SIDE

 1
96111-10710

1C..CM20..V,WG

AIR CLEANER SIDE

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
17760-95701

1C..CM20..V,WG

 1
17911A - HOSE, COOL AIR INTAKE, NO.1
17813-95700

1C..CM20..V,WG

 1
17911E - CLAMP, COOL AIR INTAKE HOSE, NO.1
96111-10650

1C..CM2#

 2
96111-10620

1C..CM2#

 2
Common parts
90119-08337
91656-40818
