CM20V-QDBE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C,2C

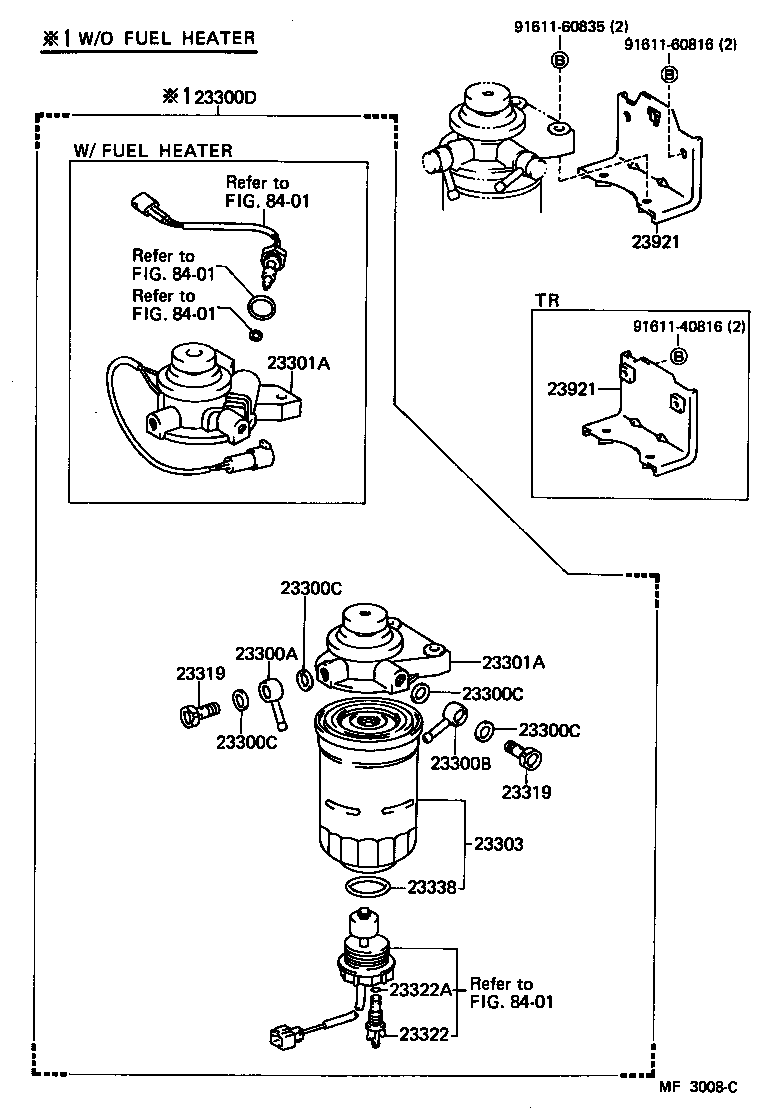

Click highlighted areas on diagram

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23301A 23301A 23303 23319 23319 23322 23322A 23338 23921 23921 8401 8401 8401 8401 9161140816 9161160816 9161160835
Part # Description Qty Price
23921 - SUPPORT, FUEL FILTER
23921-64040

1C..CM20..V,WG

 1
23921 - SUPPORT, FUEL FILTER
23921-64040

1C..CM20..V,WG

 1
Common parts
91611-40816
91611-60816
91611-60835
Linked diagrams
8401
