CM20V-QDBE (1982)
Toyota Lite/Townace Truck
Production
Oct 1982
-
Aug 1985
Engine
1C
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8210- )1C,2C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53042 |
1C..CM2# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64010 |
1C..CM2# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64010 |
1C..CM2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1C..CM2# *WAX 82−95,*WAX 82-95,*(F) |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53007 |
1C..CM2# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
1C..CM2# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-50920 |
1C..CM2# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64011 |
1C..CM2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-64040 |
1C..CM20..V,WG |
1 | ||
| 16400-64040 |
1C..CM20..V |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1C,2C..CM2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1C,2C..CM2# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95708 |
1C..CM20..(HRF,SRF)..(DLX,SW,XL) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95708 |
1C..CM20..(HRF,SRF)..(DLX,SW,XL) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12781 |
1C..CM20..V,WG *H,L=750 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12781 |
1C..CM20..V,WG *H,L=750 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1C,2C..CM2# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95705 |
1C..CM20..V,WG |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95705 |
1C..CM20..V,WG |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12063 |
1C..CM20..V,WG |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12063 |
1C..CM20..V,WG |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64040 |
1C..CM2# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64040 |
1C..CM2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CM20..V,WG |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CM20..V,WG |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CM20..V,WG |
2 | ||
| Common parts | ||||
| 90119-08445 | ||||
| 90119-08493 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 91611-60640 | ||||
| 91611-60830 | ||||
| 91621-40840 | ||||
| 91651-40616 | ||||
| 91661-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

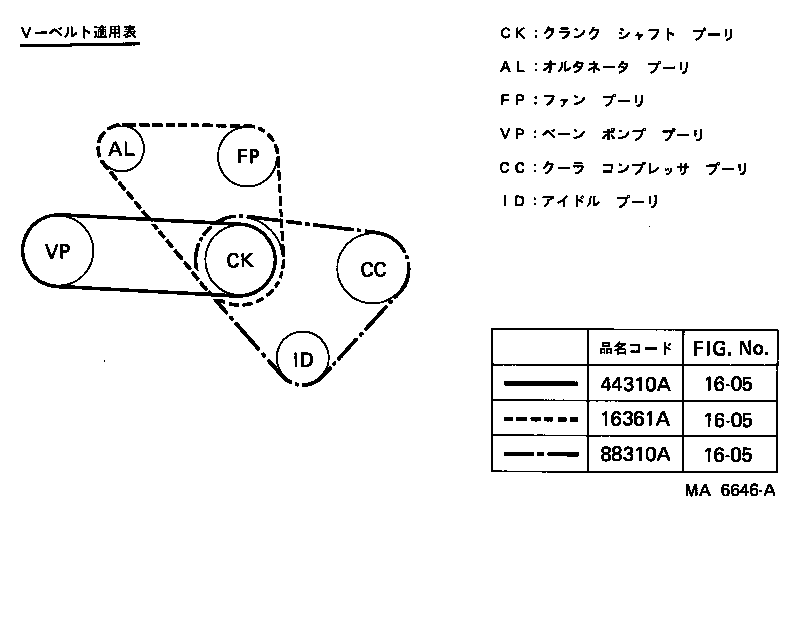

ILLUST NO. 2 OF 2(8210- )1C,2C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-50920 |
1C..CM2# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02122 |
CM20..V,WG |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-00800 |
CM2# |
1 | ||
| Linked diagrams | ||||
| 1605 | ||||
