CM20V-QD (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

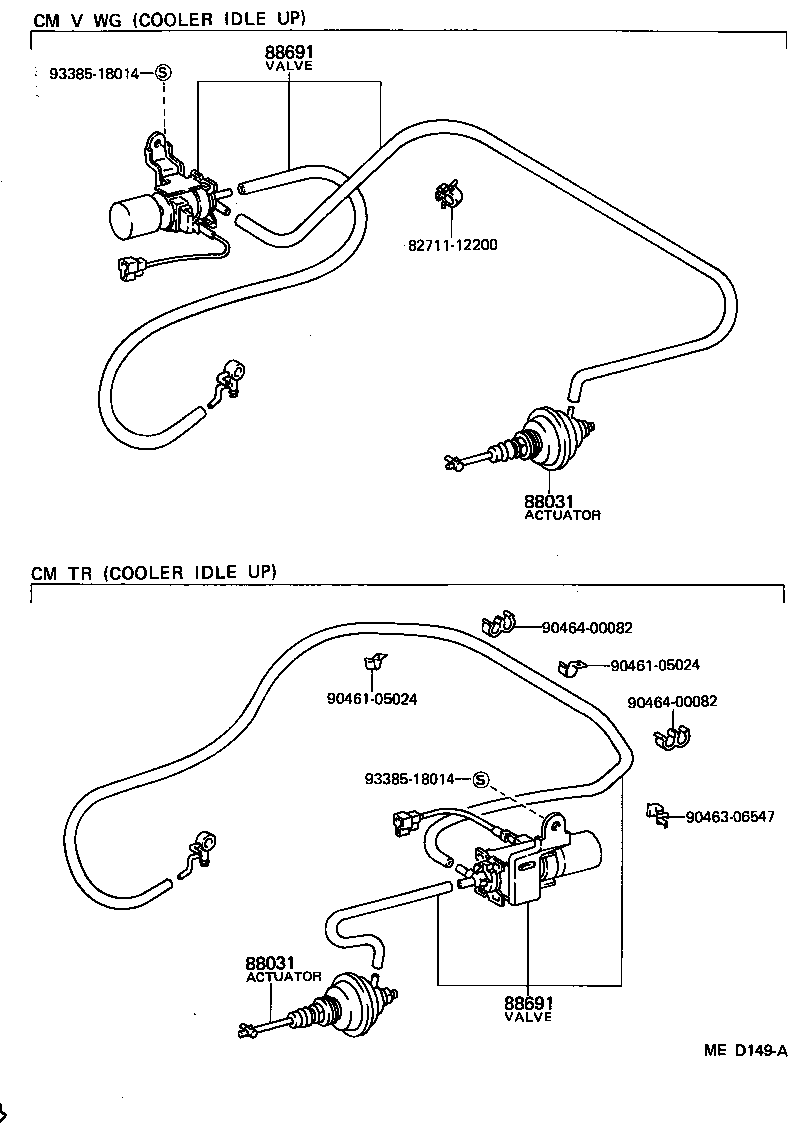

(8210- )CM2#

Click highlighted areas on diagram

diagram 8271112200 88031 88031 88691 88691 9046105024 9046105024 9046306547 9046400082 9046400082 9338518014 9338518014
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12120

CM20..V4D;CM2#..TR,WG

W/HEATER IDLE UP

 1
88031-12120

CM2#

W/COOLER IDLE UP

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12120

CM20..V4D;CM2#..TR,WG

W/HEATER IDLE UP

 1
88031-12120

CM2#

W/COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95712

CM2#

W/COOLER IDLE UP

 1
88690-95712

CM20..5F;CM20..V4D

W/HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95712

CM2#

W/COOLER IDLE UP

 1
88690-95712

CM20..5F;CM20..V4D

W/HEATER IDLE UP

 1
Common parts
82711-12200
90461-05024
90463-06547
90464-00082
93385-18014

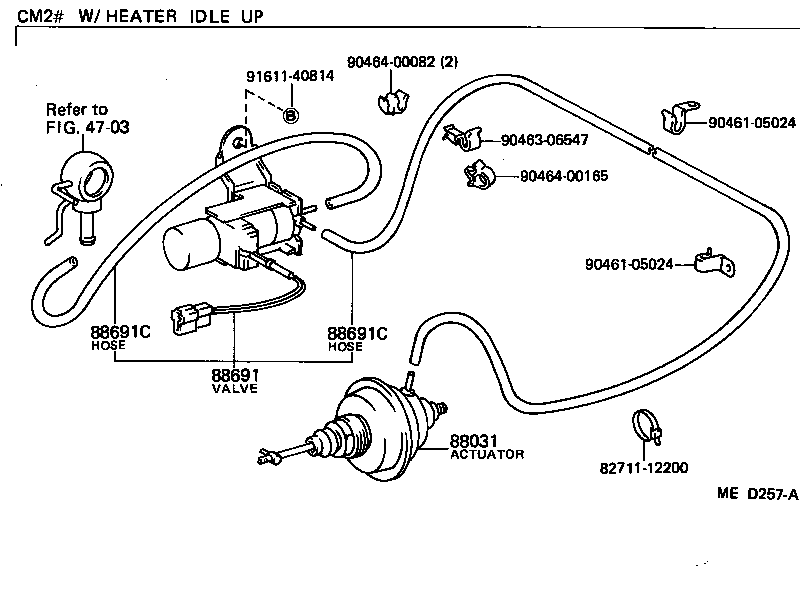

(8210-8501)CM2#

Click highlighted areas on diagram

diagram 4703 8271112200 88031 88691 88691C 88691C 9046105024 9046105024 9046306547 9046400082 9046400165 9161140814
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12120

CM20..V4D;CM2#..TR,WG

W/HEATER IDLE UP

 1
88031-12120

CM2#

W/COOLER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95712

CM2#

W/COOLER IDLE UP

 1
88690-95712

CM20..5F;CM20..V4D

W/HEATER IDLE UP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

CM20..5F;CM20..V4D

*H,L=260,ﾏｰｸ=#0

 1
90445-08209

CM20..5F;CM20..V4D

*H,L=1500

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

CM20..5F;CM20..V4D

*H,L=260,ﾏｰｸ=#0

 1
90445-08209

CM20..5F;CM20..V4D

*H,L=1500

 1
Common parts
82711-12200
90461-05024
90463-06547
90464-00082
90464-00165
91611-40814
Linked diagrams
4703
