CM20G-MXZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

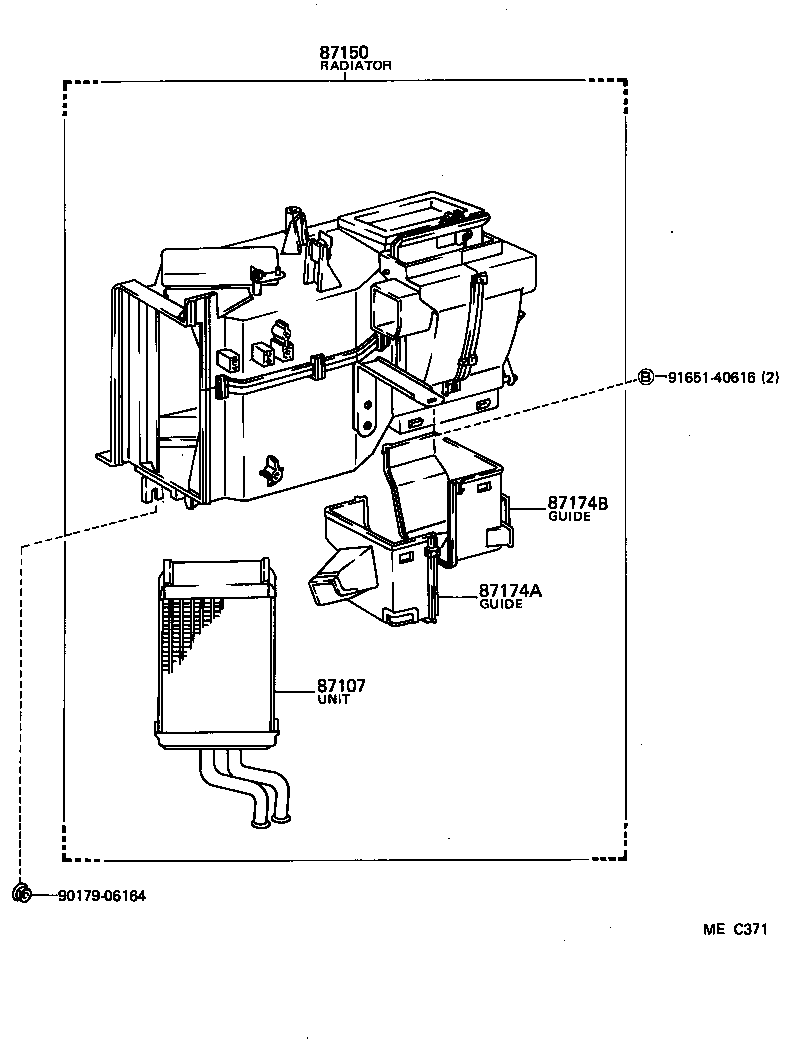

ILLUST NO. 1 OF 3(8210- )

Click highlighted areas on diagram

diagram 87107 87150 87174A 87174B 9017906164 9165140616
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95701

CM2#,KM21,YM2#

 1
87107-95704

CM20..5F;CM20..V4D

COLD SPEC

 1
87107-95702

CM2#,KM21,YM2#

COLD SPEC

 1
87107-95702

CM20..V,WG

 1
87150 - RADIATOR ASSY, HEATER
87150-95703

CM2#,KM21,YM2#..DLX,MTP,S,STD,SUP,XL

COLD SPEC

 1
87150-95700

CM2#,KM21,YM2#

 1
87150-95701

CM20,YM21..FXV,GXL

COLD SPEC

 1
87150-95706

CM20..V,WG

 1
87150-95710

CM20..GXL

COLD SPEC

 1
87150-95709

CM20..XL;CM20..V4D

COLD SPEC

 1
87174A - GUIDE, AIR HEATER
87174-95701

CM2#,KM21,YM2#

 1
87174B - GUIDE, AIR, NO.2
87175-95702

CM20,YM21..FXV,GXL

COLD SPEC

 1
87175-95701

CM2#,KM21,YM2#

 1
Common parts
90179-06164
91651-40616

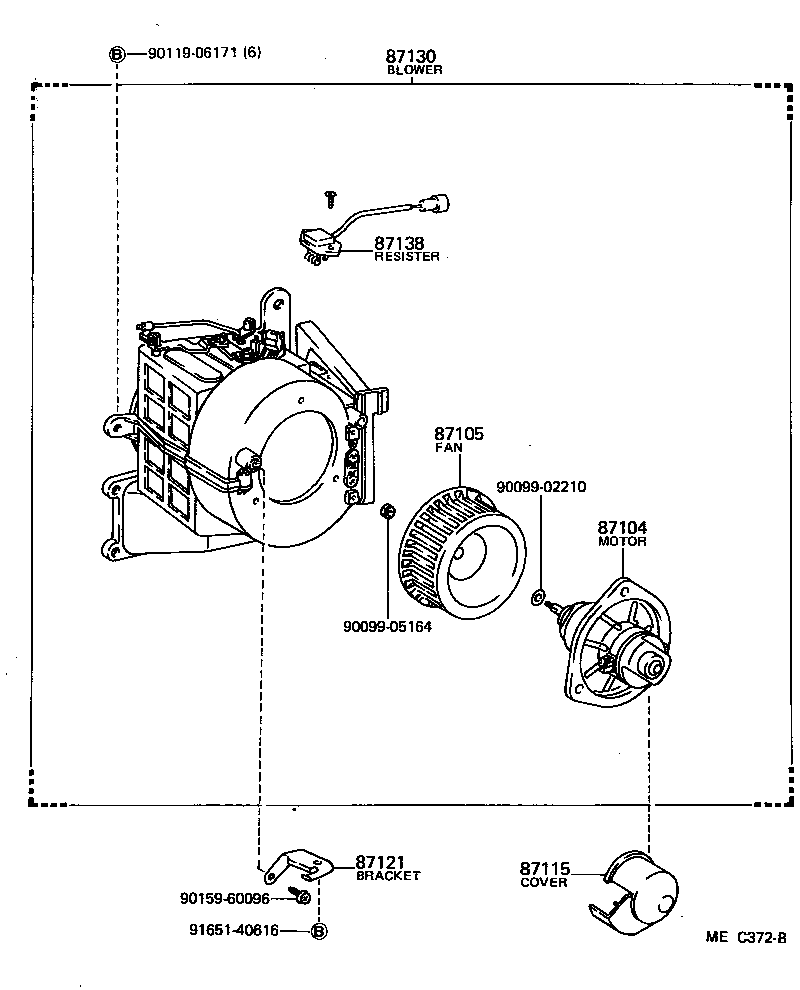

ILLUST NO. 2 OF 3(8210- )

Click highlighted areas on diagram

diagram 87104 87105 87115 87121 87130 87138 9009902210 9009905164 9011906171 9015960096 9165140616
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95701

CM20,KM21,YM20,21..V,WG

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

CM2#,KM21,YM2#

 1
87115 - COVER, MOTOR
87137-95700

CM20,KM21,YM20,21..CS7,MTP,S,SUP,XL

 1
87121 - BRACKET, HEATER, FRONT RH
87121-95702

CM2#,KM21,YM2#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-95700

CM20,KM21,YM20,21..V,WG

 1
87138 - RESISTOR, HEATER BLOWER
87138-95703

CM2#,KM21,YM2#

 1
Common parts
90099-02210
90099-05164
90119-06171
90159-60096
91651-40616

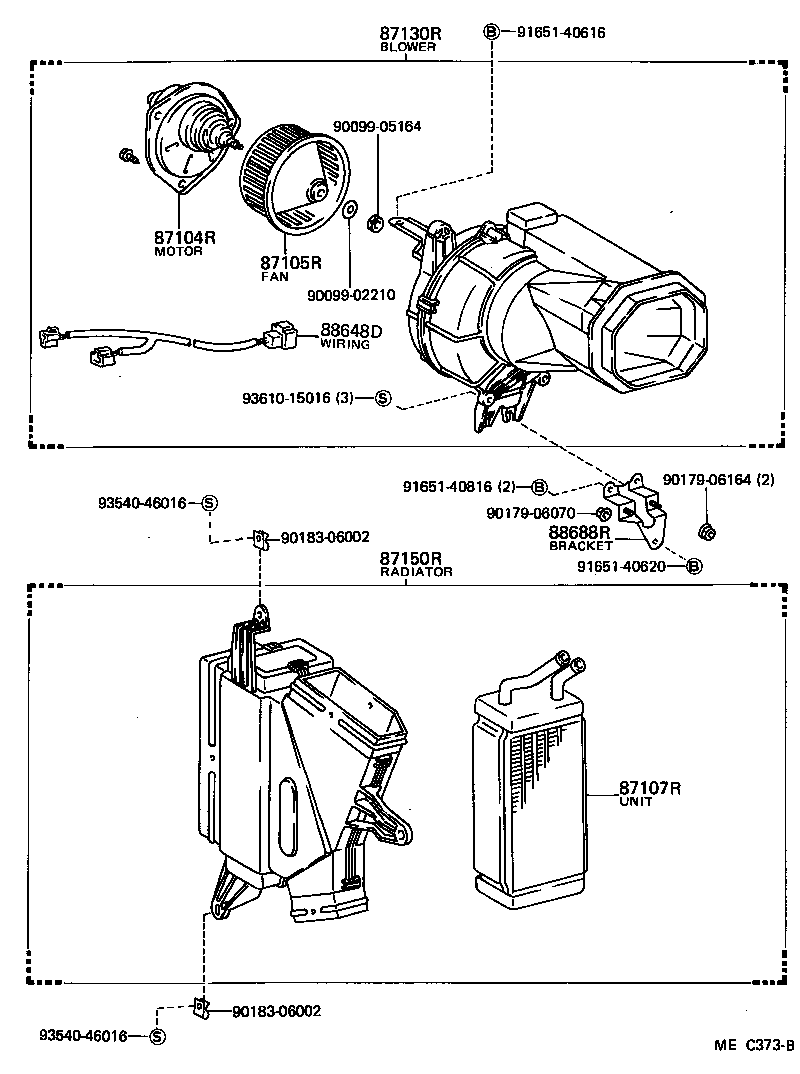

ILLUST NO. 3 OF 3(8210-8508)YM20..V4D..ST ; (8210-8508)WG..CS7,DLX,FXV,GXL,MTP,S,SW,XL

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87130R 87150R 88648D 88688R 9009902210 9009905164 9017906070 9017906164 9018306002 9018306002 9165140616 9165140620 9165140816 9354046016 9354046016 9361015016
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-95702

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-14020

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-95703

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
87130R - BLOWER ASSY, REAR HEATER
87130-95701

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
87150R - RADIATOR ASSY, REAR HEATER
87150-95702

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88648D - WIRING, BLOWER MOTER
88648-95704

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
88688R - BRACKET (FOR REAR HEATER)
88688-95732

CM20,YM21..WG..(CS7,DLX,FXV,GXL,MTP,S,SW,XL)

 1
Common parts
90099-02210
90099-05164
90179-06070
90179-06164
90183-06002
91651-40616
91651-40620
91651-40816
93540-46016
93610-15016
