CM20G-MXZ (1982)
Toyota Lite/Townace Truck

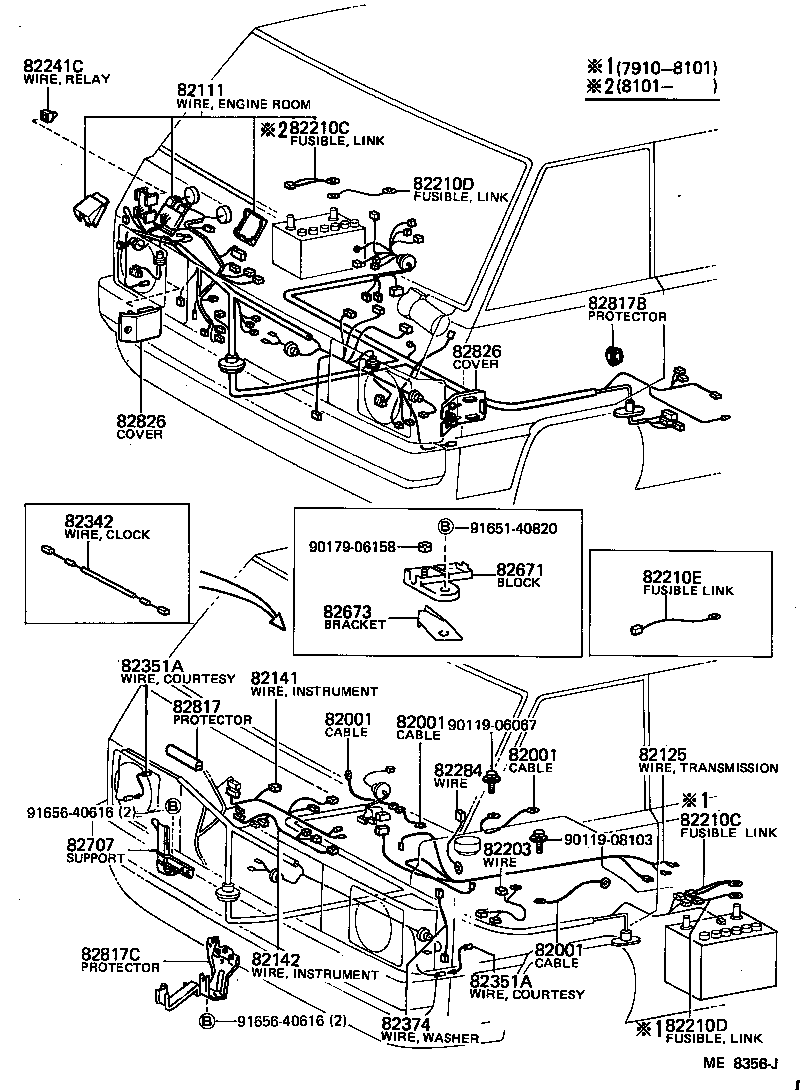

ILLUST NO. 1 OF 3(7910-8508)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95728 |
CM20..XL |
1 | ||
| 82111-95729 |
CM20..GXL |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-95708 |
CM20,YM21..CS7,MTP,XL |
1 | ||
| 82141-95709 |
CM20,YM21..WG..(CS7,DLX,GXL,MTP,S,SW,XL) W/*BDEL,*PC,*RW OR *REH |
1 | ||
| 82141-95709 |
CM20,YM21..CS7,GXL,MTP,S,XL W/*BDEL,*PC OR *RW |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08207 |
CM20,YM21..WG 0.3PINK,0.5GREEN & 1.0YELLOW |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08207 |
CM20,YM21..WG 0.3PINK,0.5GREEN & 1.0YELLOW |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08209 |
CM2# 1.25BLACK |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08209 |
CM2# 1.25BLACK |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82707-95705 |
CM2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 83711-95A00 |
CM2#,KM21,YM2# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82807-95700 |
CM2# |
1 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-95701 |
CM20,YM21..FXV,GXL W/*PW |
1 | ||
| 82817-95700 |
CM2#,KM21,YM20,21..03S,05S,06S,08S,09S |
2 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-95701 |
CM20,YM21..FXV,GXL W/*PW |
1 | ||
| 82817-95700 |
CM2#,KM21,YM20,21..03S,05S,06S,08S,09S |
2 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-08103 | ||||
| 90179-06158 | ||||
| 91651-40820 | ||||
| 91656-40616 | ||||
ILLUST NO. 2 OF 3(7910-8508)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-95700 |
CM20,YM21..CS7,FXV,GXL,MTP,S,XL |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82401-95702 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL) |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82430-95733 |
CM20,YM20,21..(MTP,S,SUP,XL)..ST |
1 | ||
| 82430-95736 |
CM20,YM21..CS7,MTP,S,XL W/*BDEL & *RW |
1 | ||
| 82430-95736 |
CM20,YM21..FXV,GXL |
1 | ||
| 82430-95734 |
CM20,YM21..CS7,MTP,S,XL W/*BDEL |
1 | ||
| 82430-95735 |
CM20,KM21,YM21..(HRF,SRF)..(CS7,DLX,MTP,SW,XL)..ST W/*RW,W/*RW & *RWD |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82403-95712 |
CM20..GXL |
1 | ||
| 82403-95711 |
CM20..SW,XL;YM20..V4D..ST W/*REH |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-95703 |
CM20,YM21..GXL |
1 | ||
| 82505-95705 |
CM20,YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL W/8-CHANEL CAR COMPO |
1 | ||
| 82506 - WIRING SUB-ASSY, FRONT DOOR, LH | ||||
| 82506-95705 |
CM20,YM21..CS7,DLX,FXV,GXL,MTP,S,SW,XL W/8-CHANEL CAR COMPO |
1 | ||
| 82506-95703 |
CM20,YM21..GXL |
1 | ||
| 82509 - WIRING SUB-ASSY, BACK DOOR | ||||
| 82501-95708 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,MTP,S,SUP,SW,XL) W/*RWD |
1 | ||
| 82501-95711 |
CM20,KM21,YM21..CS7,FXV,GXL,MTP,S,SUP,XL W/*RWD,*BDEL & *RW |
1 | ||
| 82501-95710 |
KM21..V..DLX;CM20,YM20,21..(V,WG)..(CS7,DLX,MTP,S,SUP,SW,XL) W/*RW,W/*RW & *RWD |
1 | ||
| 82501-95709 |
CM20,KM21,YM21..CS7,MTP,S,SUP,XL W/*BDEL,W/*RWD & *BDEL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-95706 |
CM20,YM21..HRF..(FXV,GXL) W/*PSR |
1 | ||
| 82510-95701 |
CM20,KM2#,TM20,YM20,21..HRF..(CS7,DLX,GXL,STD,SUP,SW,XL) |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82815-95700 |
CM20,KM21,YM20,21..HRF,SRF |
1 | ||
| Common parts | ||||
| 83711-95A00 | ||||
| 90159-50094 | ||||
| 93540-56012 | ||||
| 94521-00600 | ||||
