CM20G-MXZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM20,25

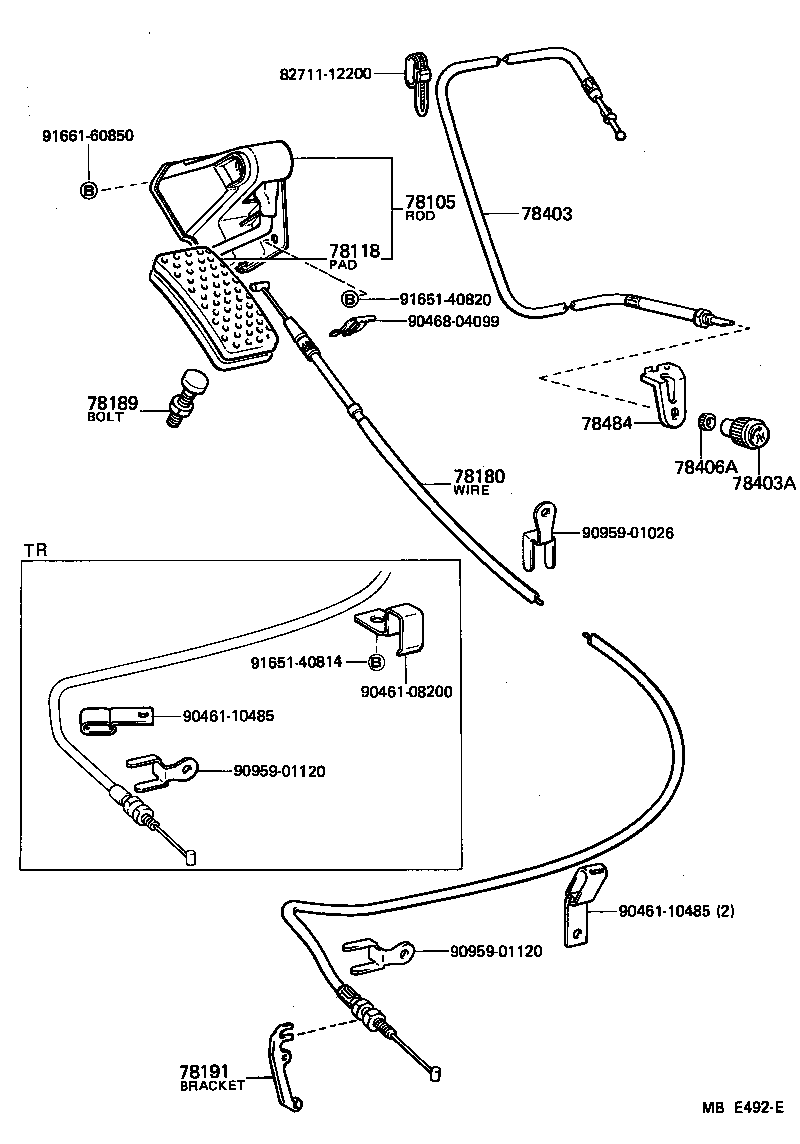

Click highlighted areas on diagram

diagram 78105 78118 78180 78189 78191 78403 78403A 78406A 78484 8271112200 9046108200 9046110485 9046110485 9046804099 9095901026 9095901120 9095901120 9165140814 9165140820 9166160850
Part # Description Qty Price
78118 - PAD, ACCELERATOR PEDAL
78119-95700

CM2#,KM2#,TM20,YM2#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95714

CM20..V,WG

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM20,KM2#,TM20,YM20,21..V,WG

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-95702

CM2#

 1
78406A - NUT, HOLDER (FOR THROTTLE BUTTON)
78413-95A00

CM2#

 1
Common parts
82711-12200
90461-08200
90461-10485
90468-04099
90959-01026
90959-01120
91651-40814
91651-40820
91661-60850
