CM20G-MXZ (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM2#

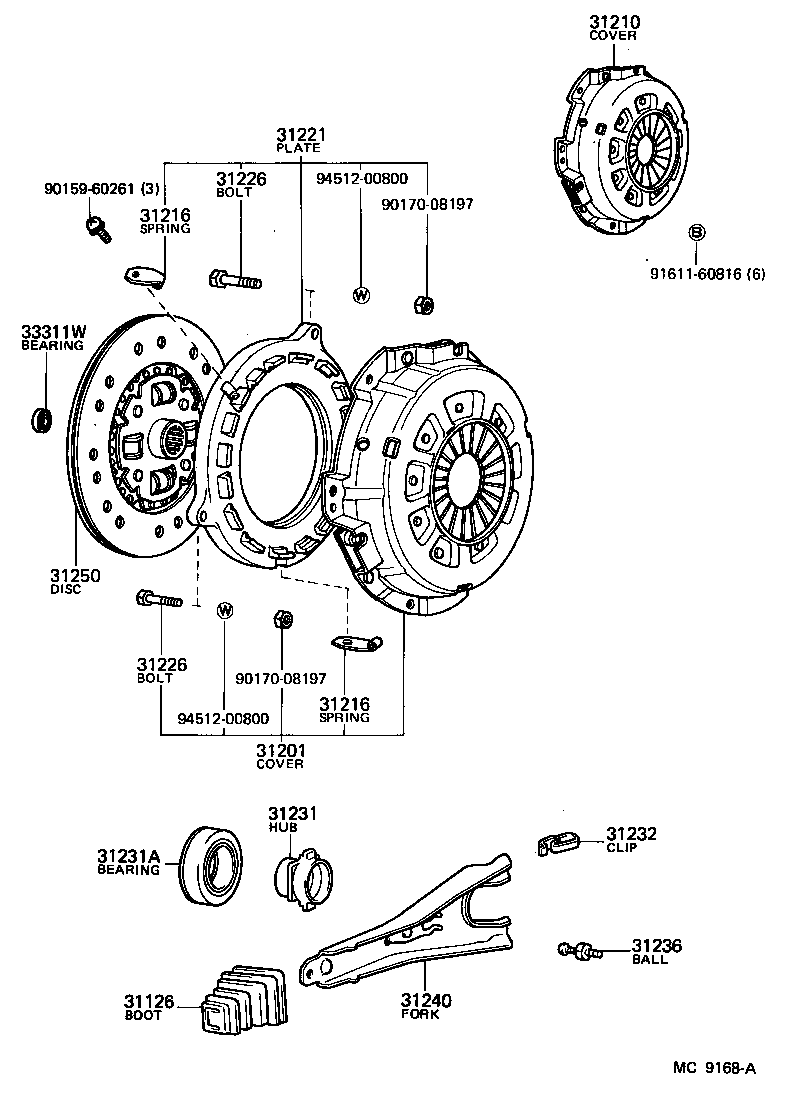

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31236 31240 31250 33311W 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CM2#,TM20,YM2#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CM2#,TM20,YM2#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-29035

CM2#,TM20,YM21..MTM

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

CM2#,KM20,TM20,YM2#..MTM

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

CM2#,KM20,TM20,YM2#..MTM

 3
31250 - DISC ASSY, CLUTCH
31250-20111

CM2#

 1
31250-20112

CM2#

 1
Common parts
90159-60261
90170-08197
91611-60816
94512-00800
