CM20G-MXS (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C,2C

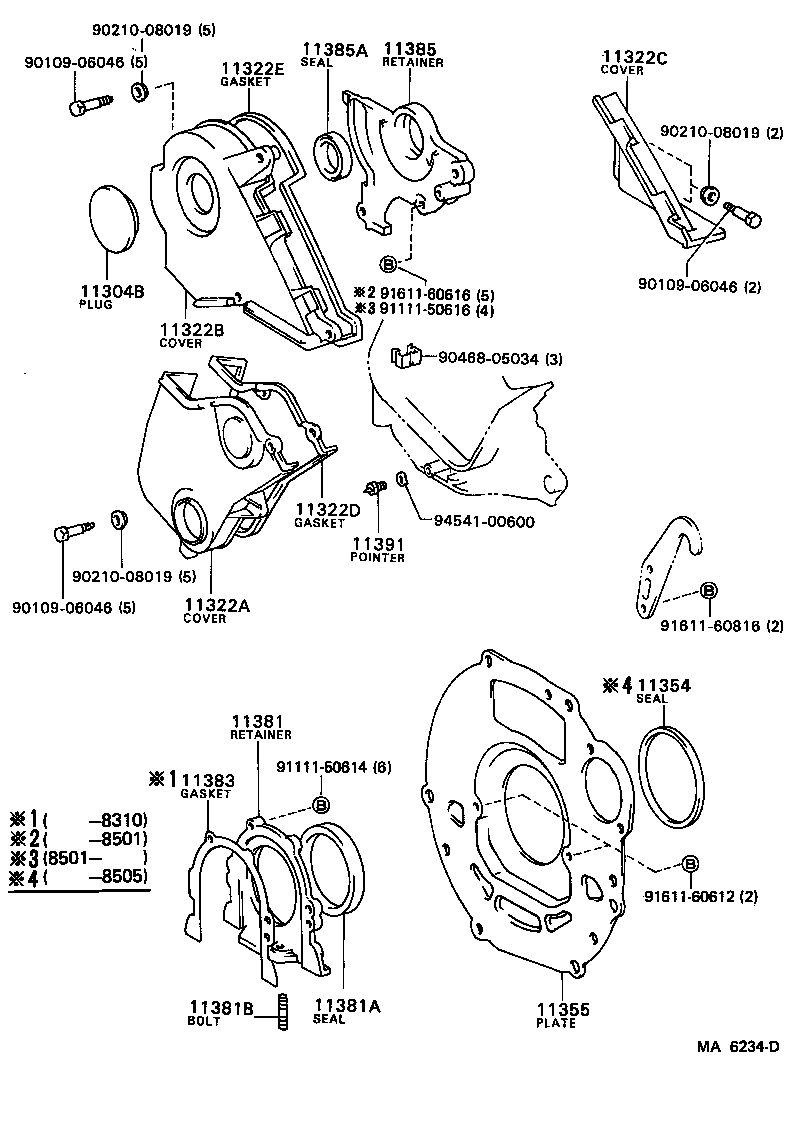

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11354 11355 11381 11381A 11381B 11383 11385 11385A 11391 9010906046 9010906046 9010906046 9021008019 9021008019 9021008019 9046805034 9111150614 9111150616 9161160612 9161160616 9161160816 9454100600
Part # Description Qty Price
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-64010

1C..CM2#

 1
11355 - PLATE, REAR END
11355-64010

1C..CM2#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64010

1C..CM2#

 1
11381-64011

1C..CM2#

 1
11381A - SEAL, ENGINE REAR OIL
90311-90002

1C..CM2#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-64010

1C..CM2#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-64010

1C..CM2#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38017

1C..CM2#

 1
Common parts
90109-06046
90210-08019
90468-05034
91111-50614
91111-50616
91611-60612
91611-60616
91611-60816
94541-00600
