CM20G-MX (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM2#,YM20,21..MTM

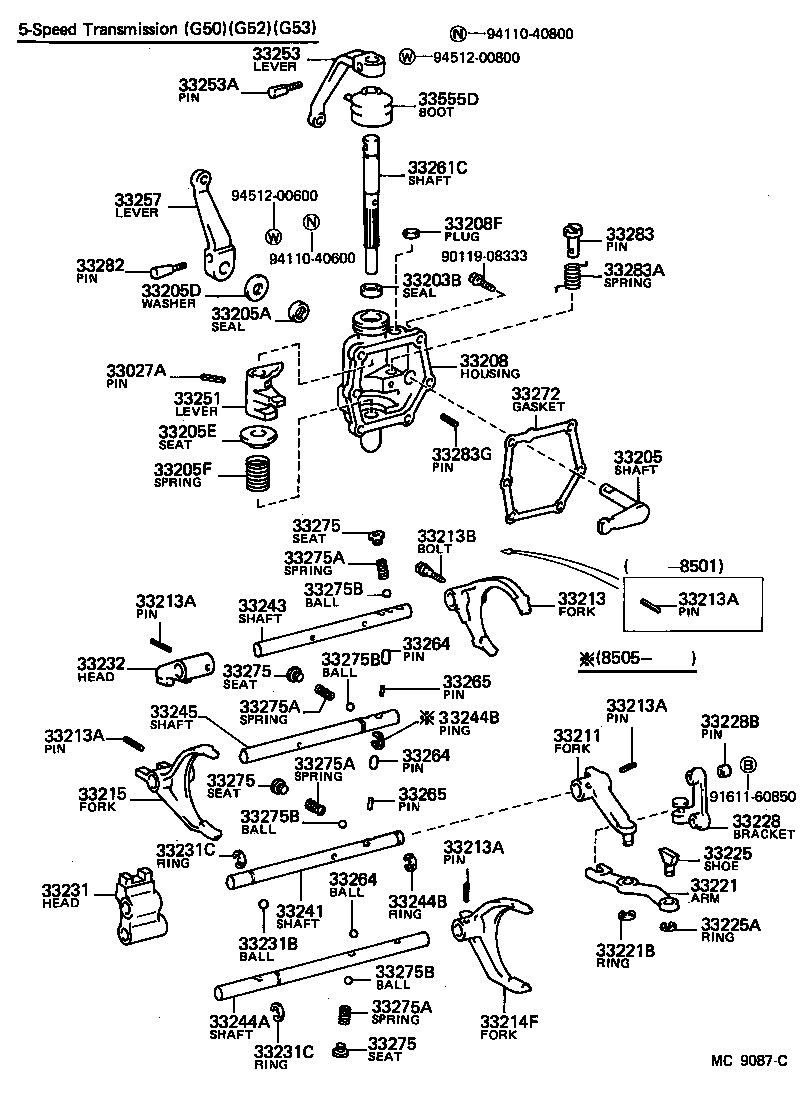

Click highlighted areas on diagram

diagram 33027A 33203B 33205 33205A 33205D 33205E 33205F 33208 33208F 33211 33213 33213A 33213A 33213A 33213A 33213A 33213B 33214F 33215 33221 33221B 33225 33225A 33228 33228B 33231 33231B 33231C 33231C 33232 33241 33243 33244A 33244B 33244B 33245 33251 33253 33253A 33257 33261C 33264 33264 33264 33265 33265 33272 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33282 33283 33283A 33283G 33555D 9011908333 9161160850 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

CM2#,KM2#,TM20,YM2#..MTM

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
94612-11300

CM2#,KM2#,TM20,YM2#..MTM

 1
33205E - SEAT(FOR SELECT RETURN SPRING)
33276-28010

CM2#,YM20,21..MTM

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-28021

CM2#,YM20,21..MTM

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-28010

CM2#,YM20,21..MTM

 1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-28020

CM2#,YM20,21..MTM

 1
33275B - BALL, SHAFT DETENT
90360-10003

CM2#,KM2#,TM20,YM2#..MTM

 4
33275B - BALL, SHAFT DETENT
90360-10003

CM2#,KM2#,TM20,YM2#..MTM

 4
33275B - BALL, SHAFT DETENT
90360-10003

CM2#,KM2#,TM20,YM2#..MTM

 4
33275B - BALL, SHAFT DETENT
90360-10003

CM2#,KM2#,TM20,YM2#..MTM

 4
Common parts
90119-08333
91611-60850
94110-40600
94110-40800
94512-00600
94512-00800
