CM20-QDLT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

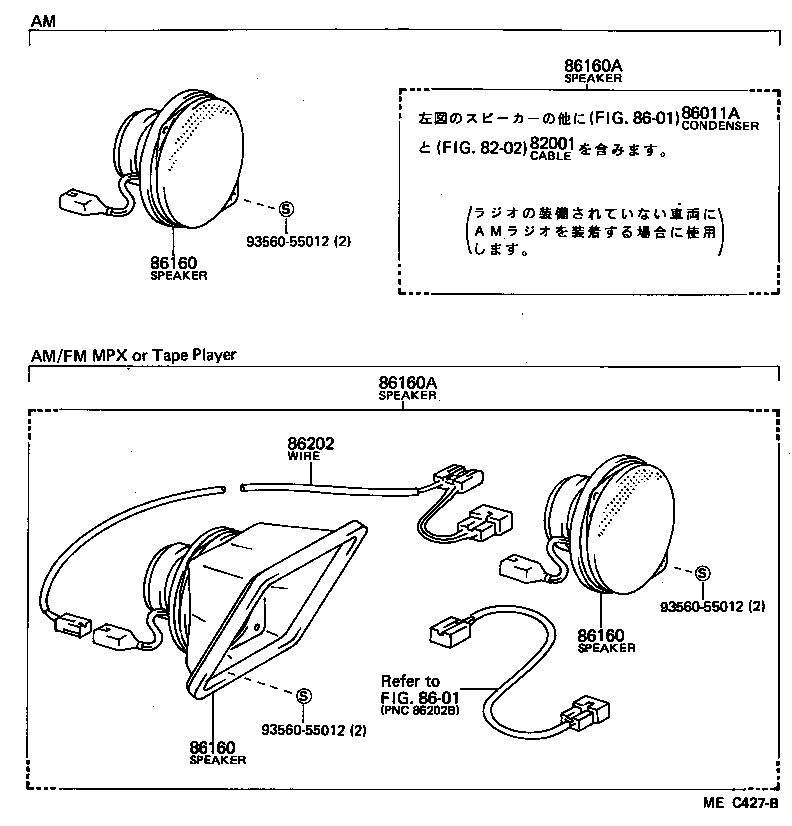

ILLUST NO. 1 OF 2(8210- )DLX,FXV,GXL,MTP,S,SUP,SW,XL

Click highlighted areas on diagram

diagram 8601 86160 86160 86160 86160A 86160A 86202 9356055012 9356055012 9356055012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-95710

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

LH,W/*19 OR TAPE PLAYER

 1
86160-19565

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

W/AM RADIO

 1
86160-32070

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

RH,W/*19 OR TAPE PLAYER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95710

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

LH,W/*19 OR TAPE PLAYER

 1
86160-19565

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

W/AM RADIO

 1
86160-32070

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

RH,W/*19 OR TAPE PLAYER

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-95710

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

LH,W/*19 OR TAPE PLAYER

 1
86160-19565

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

W/AM RADIO

 1
86160-32070

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

RH,W/*19 OR TAPE PLAYER

 1
86160A - SPEAKER SET, FRONT
86160-29535

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

W/TAPE PLAYER

 1
86160A - SPEAKER SET, FRONT
86160-29535

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

W/TAPE PLAYER

 1
86202 - WIRE, SPEAKER, NO.1
86238-95704

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
Common parts
93560-55012
Linked diagrams
8601
