CM20-QDLT (1982)
Toyota Lite/Townace Truck
(8210- )TR

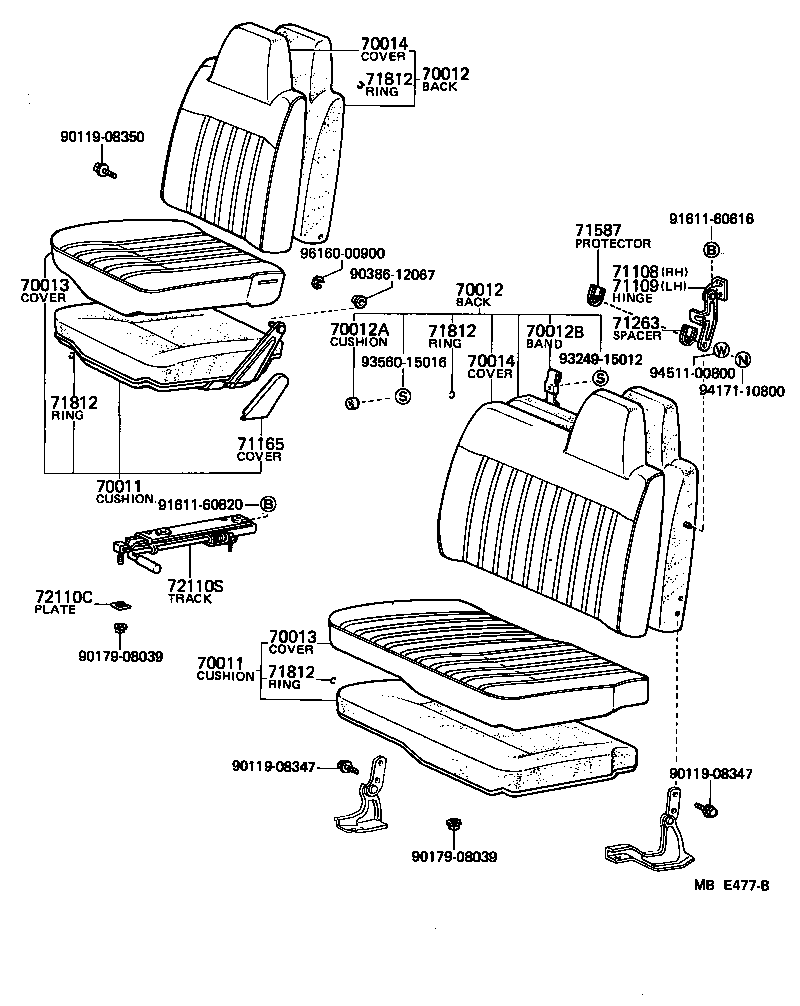

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-9574204 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71110-9574206 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71210-95734 |
CM2#..TR LH,VL PRINT |
1 | ||
| 71110-95733 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-9574204 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71110-9574206 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71210-95734 |
CM2#..TR LH,VL PRINT |
1 | ||
| 71110-95733 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-9574804 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71150-9574806 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71250-9575504 |
CM20,YM21..S,XL LH,FB,BLUE GRAY,BLUE |
1 | ||
| 71250-9575506 |
CM20,YM21..S,XL LH,FB,BROWN,BROWN |
1 | ||
| 71150-95735 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 71250-95740 |
CM2#,KM21,YM25..TR..DLX LH,VL PRINT |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-9574804 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71150-9574806 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71250-9575504 |
CM20,YM21..S,XL LH,FB,BLUE GRAY,BLUE |
1 | ||
| 71250-9575506 |
CM20,YM21..S,XL LH,FB,BROWN,BROWN |
1 | ||
| 71150-95735 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 71250-95740 |
CM2#,KM21,YM25..TR..DLX LH,VL PRINT |
1 | ||
| 70012A - CUSHION(FOR NO.1 SEAT BACK) | ||||
| 71268-95702 |
CM2#,YM25..TR |
2 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-9570304 |
CM20,YM21..CS7,FXV,GXL,MTP,S,XL BLUE GRAY,BLUE |
1 | ||
| 71240-9570005 |
CM2#,KM21,YM25..TR BEIGE,BEIGE |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-9574304 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71108-9574306 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71208-95737 |
CM2#..TR LH,VL PRINT |
1 | ||
| 71108-95734 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-9574304 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71108-9574306 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71208-95737 |
CM2#..TR LH,VL PRINT |
1 | ||
| 71108-95734 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-9574506 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71109-9574504 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71209-9574804 |
CM20,YM21..S,XL LH,FB,BLUE GRAY,BLUE |
1 | ||
| 71209-9574806 |
CM20,YM21..S,XL LH,FB,BROWN,BROWN |
1 | ||
| 71109-95734 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 71209-95733 |
CM2#,KM21,YM25..TR..DLX LH,VL PRINT |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-9574506 |
CM20,YM21..S,XL RH,FB,BROWN,BROWN |
1 | ||
| 71109-9574504 |
CM20,YM21..S,XL RH,FB,BLUE GRAY,BLUE |
1 | ||
| 71209-9574804 |
CM20,YM21..S,XL LH,FB,BLUE GRAY,BLUE |
1 | ||
| 71209-9574806 |
CM20,YM21..S,XL LH,FB,BROWN,BROWN |
1 | ||
| 71109-95734 |
CM2#,KM21,YM25..DLX RH,VL PRINT |
1 | ||
| 71209-95733 |
CM2#,KM21,YM25..TR..DLX LH,VL PRINT |
1 | ||
| 71108 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71025-95701 |
CM2#,KM21,YM25..TR |
1 | ||
| 71025-95702 |
CM2#,KM21,YM25 |
1 | ||
| 71109 - HINGE SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71026-95702 |
CM2#,KM21,YM25 |
1 | ||
| 71026-95701 |
CM2#,KM21,YM25..TR |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570004 |
CM20,YM21..CS7,FXV,GXL,MTP,S,XL BLUE GRAY,BLUE |
1 | ||
| 71165-9570005 |
CM2#,KM21,YM20,25..TR,V BEIGE,BEIGE |
1 | ||
| 71263 - SPACER, FRONT SEAT BACK HINGE | ||||
| 71263-95701 |
CM20..TS |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-9570005 |
CM20 BEIGE,BEIGE |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM2#,KM21,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM2#,KM21,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM2#,KM21,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM2#,KM21,YM2# |
1 | ||
| 72110C - PLATE, SEAT TRACK SET | ||||
| 58597-95700 |
CM2#,KM21,YM20,25..TR,V |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95705 |
CM2#,KM21,YM2# |
1 | ||
| Common parts | ||||
| 90119-08347 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90386-12067 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 93249-15012 | ||||
| 93560-15016 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 96160-00900 | ||||

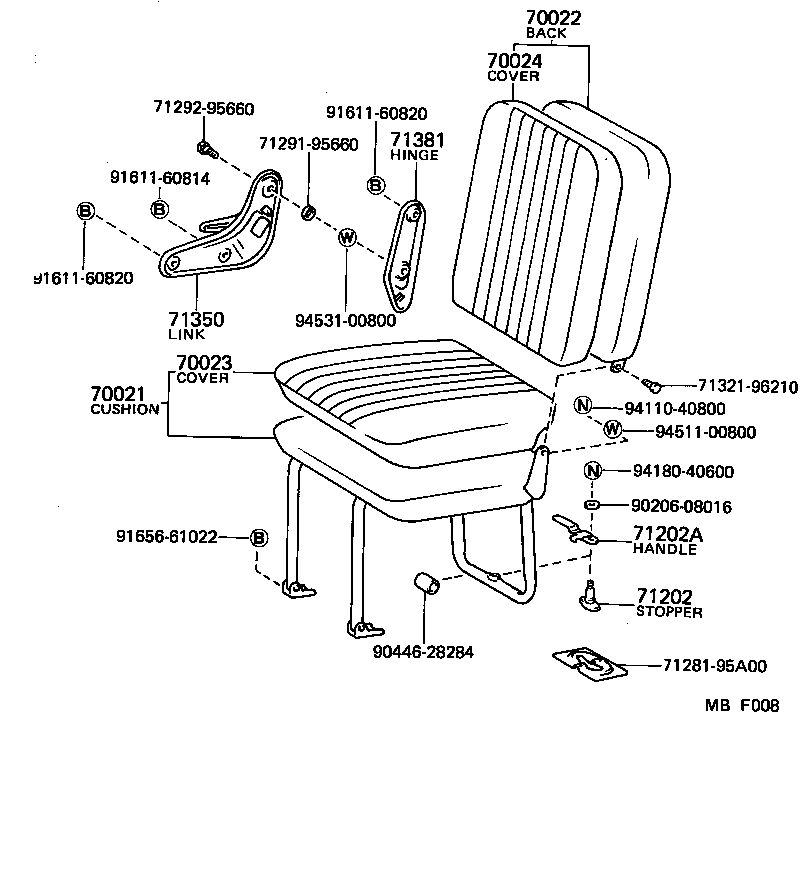

ILLUST NO. 2 OF 2(8210-8508)CM20,KM21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-9575804 |
CM20,YM21..S,XL LH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71410-9575806 |
CM20,YM21..S,XL LH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71510-9574004 |
CM20,YM21..S,XL RH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71510-9574006 |
CM20,YM21..S,XL RH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71810-9570704 |
CM20,YM21..S,XL SUB SEAT,FB,BLUE GRAY,BLUE |
1 | ||
| 71810-9570706 |
CM20,YM21..S,XL SUB SEAT,FB,BROWN,BROWN |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-9574204 |
CM20,YM21..S,XL LH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71450-9574206 |
CM20,YM21..S,XL LH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71550-9573806 |
CM20,YM21..S,XL RH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71550-9573804 |
CM20,YM21..S,XL RH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71850-9570804 |
CM20,YM21..S,XL SUB SEAT,FB,BLUE GRAY,BLUE |
1 | ||
| 71850-9570806 |
CM20,YM21..S,XL SUB SEAT,FB,BROWN,BROWN |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71408-9574006 |
CM20,YM21..S,XL LH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71408-9574004 |
CM20,YM21..S,XL LH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71508-9573504 |
CM20,YM21..S,XL RH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71508-9573506 |
CM20,YM21..S,XL RH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71808-9570604 |
CM20,YM21..S,XL SUB SEAT,FB,BLUE GRAY,BLUE |
1 | ||
| 71808-9570606 |
CM20,YM21..S,XL SUB SEAT,FB,BROWN,BROWN |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-9574004 |
CM20,YM21..S,XL LH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71409-9574006 |
CM20,YM21..S,XL LH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71509-9573506 |
CM20,YM21..S,XL RH,FB,W/*SS,BROWN,BROWN |
1 | ||
| 71809-9570606 |
CM20,YM21..S,XL SUB SEAT,FB,BROWN,BROWN |
1 | ||
| 71509-9573504 |
CM20,YM21..S,XL RH,FB,W/*SS,BLUE GRAY,BLUE |
1 | ||
| 71809-9570604 |
CM20,YM21..S,XL SUB SEAT,FB,BLUE GRAY,BLUE |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 72570-9570104 |
CM20,YM21..FXV,GXL,MTP,S,XL BLUE GRAY,BLUE |
1 | ||
| 72570-9570116 |
CM20,YM21..FXV,GXL,MTP,S,XL BROWN,BROWN |
1 | ||
| Common parts | ||||
| 71281-95A00 | ||||
| 71291-95660 | ||||
| 71292-95660 | ||||
| 71321-96210 | ||||
| 90206-08016 | ||||
| 90446-28284 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91656-61022 | ||||
| 94110-40800 | ||||
| 94180-40600 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||
