SR50G-TDSBK (1996)
Toyota Lite/Townace Noah,V

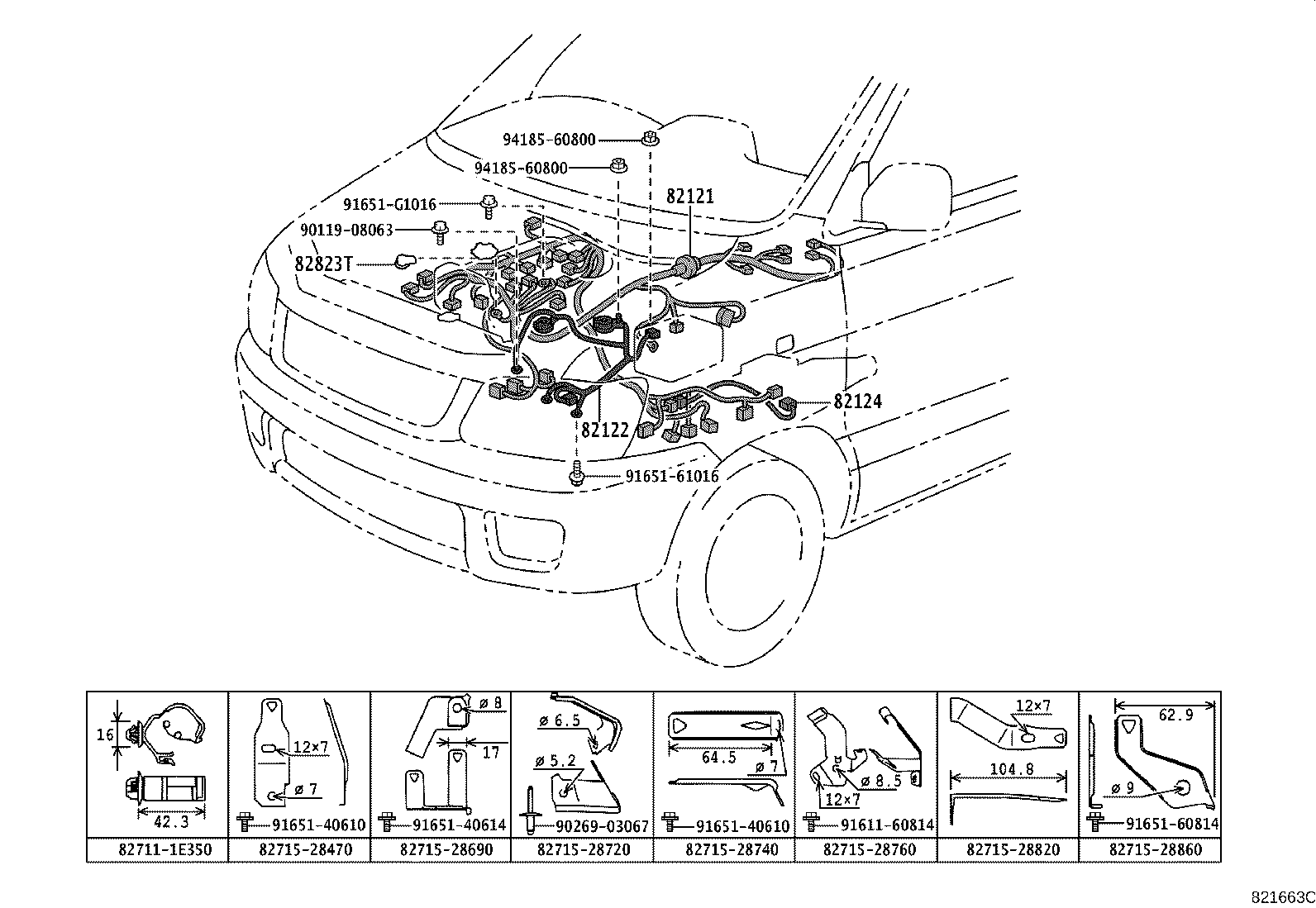

ILLUST NO. 1 OF 9(9610-9812)CR4#,5#
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28400 |
SR40,50..ATM |
1 | ||
| 82121-28331 |
CR40,50..ATM |
1 | ||
| 82121-28330 |
CR40,50..ATM |
1 | ||
| 82121-28401 |
SR40,50..ATM |
1 | ||
| 82121-28710 |
SR40,50..ATM |
1 | ||
| 82121-28690 |
CR40,50 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28410 |
SR40,50 |
1 | ||
| 82122-28050 |
SR40,50 |
1 | ||
| 82122-28420 |
CR40,50 |
1 | ||
| 82122-28290 |
CR4#,5# |
1 | ||
| 82122-28370 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-28280 |
CR51,SR50..(05S,06S)..ATM |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CR41,51,KR4#,SR40,50 |
1 | ||
| 82823-24010 |
CR4#,5# ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A |
1 | ||
| 82823-22050 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-28370 | ||||
| 82715-28470 | ||||
| 82715-28480 | ||||
| 82715-28520 | ||||
| 82715-28690 | ||||
| 82715-28710 | ||||
| 82715-28720 | ||||
| 82715-28770 | ||||
| 82715-28820 | ||||
| 82715-89108 | ||||
| 82715-89119 | ||||
| 90119-08063 | ||||
| 90269-03069 | ||||
| 90269-05044 | ||||
| 91611-60620 | ||||
| 91611-60814 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-60610 | ||||
| 91651-61016 | ||||
| 94185-60600 | ||||
| 94185-60800 | ||||
ILLUST NO. 4 OF 9(9610-9812)
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2X250 |
CR40,50..E,V ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 82131-2X230 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X220 |
CR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X310 |
SR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X240 |
CR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X300 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X290 |
SR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82129-28480 |
SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 82131-2X350 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82131-2X270 |
CR40,50..D |
1 | ||
| 82129-28500 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H) |
1 | ||
| 82131-2X320 |
SR40,50..E,V |
1 | ||
| 82131-2X260 |
CR40,50..E,V |
1 | ||
| 82129-28470 |
CR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 82131-2X360 |
SR40,50..B |
1 | ||
| 82131-2X340 |
SR40,50..D |
1 | ||
| 82131-2X221 |
CR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X241 |
CR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X251 |
CR40,50..E,V ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 82131-2X311 |
SR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X231 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X301 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X291 |
SR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82129-28100 |
SR40,50..E,V AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅ CD ｶｾﾂﾄ,2DIN & ｱﾘ(4 ｽﾋﾟ-ｶ) |
1 | ||
| 82131-2X321 |
SR40,50..E,V |
1 | ||
| 82131-2X261 |
CR40,50..E,V |
1 | ||
| 82129-28070 |
CR40,50..ATM..(E,V) ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 82129-28630 |
SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 82129-28620 |
CR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 82129-28520 |
CR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28520 |
CR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28530 |
SR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28540 |
CR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82129-28640 |
CR40,50..ATM..E..CBU ﾘﾐﾃﾂﾄﾞ *(H) |
1 | ||
| 82129-28540 |
CR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82129-28090 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵｰﾄｴｱｺﾝ & AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕｰﾅ CD ｶｾﾂﾄ,2DIN & 4 ｽﾋﾟｰｶ) |
1 | ||
| 82129-28530 |
SR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28550 |
SR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82129-28550 |
SR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82131-2X322 |
SR40,50..E,V |
1 | ||
| 82129-28650 |
SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(H) |
1 | ||
| 82129-28060 |
CR40,50..ATM..(E,V) ｱﾘ(ﾃﾞﾕｱﾙｵｰﾄｴｱｺﾝ & AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕｰﾅ CD ｶｾﾂﾄ,2DIN & 4 ｽﾋﾟｰｶ) |
1 | ||
| 82131-2X302 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X361 |
SR40,50..B |
1 | ||
| 82131-2R102 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X861 |
CR40,50..D ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82131-2R122 |
CR40,50..E,V |
1 | ||
| 82131-2X341 |
SR40,50..D |
1 | ||
| 82131-2X351 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82135-2J430 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J320 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28890 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J450 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J360 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J490 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J480 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82129-28670 |
SR40,50..E..CBU ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(X),*(Y),*(G),*(H) |
1 | ||
| 82129-28600 |
SR40,50..5D..ATM ﾘﾐﾂｸｽ *(V), *(Z) |
1 | ||
| 82135-2J370 |
CR40,50..D |
1 | ||
| 82135-2J350 |
CR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82135-2J440 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J420 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82129-28880 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J510 |
SR40,50..ATM..B |
1 | ||
| 82129-28660 |
SR40,50..E..CBU ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(X),*(Y),*(G),*(H) & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82135-2J470 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82135-2J330 |
CR40,50..E,S,V |
1 | ||
| 82129-28870 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82135-2J670 |
SR40,50..ATM..D |
1 | ||
| 82135-2J361 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J460 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 82135-2J351 |
CR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82129-28891 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J321 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J451 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J481 |
SR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82135-2J431 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82135-2J680 |
SR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) OR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 82135-2J340 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J491 |
SR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-28540 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
CR4#,5#,KR4#,SR40,50 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
CR4#,5#,KR4#,SR40,50 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
CR4#,5#,KR4#,SR40,50 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08203 |
CR4#,5#,KR4#,SR40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08280 |
CR4#,5#,KR4#,SR40,50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
CR40,50,SR40,50 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ |
1 | ||
| 90982-08254 |
CR4#,5#,KR4#,SR40,50 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
CR40,50,SR40,50 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
CR40,50,SR40,50 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
CR40,50,SR40,50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CR40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
SR40,50 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08286 |
CR40,50,SR40,50 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08284 |
CR4#,5#,KR4#,SR40,50 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
CR4#,5#,KR4#,SR40,50 100A,ｵｽ端子,青 |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 90119-06005 | ||||
| 90179-06083 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 9(9610-9812)SR40,50
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28400 |
SR40,50..ATM |
1 | ||
| 82121-28331 |
CR40,50..ATM |
1 | ||
| 82121-28330 |
CR40,50..ATM |
1 | ||
| 82121-28401 |
SR40,50..ATM |
1 | ||
| 82121-28710 |
SR40,50..ATM |
1 | ||
| 82121-28690 |
CR40,50 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28410 |
SR40,50 |
1 | ||
| 82122-28050 |
SR40,50 |
1 | ||
| 82122-28420 |
CR40,50 |
1 | ||
| 82122-28290 |
CR4#,5# |
1 | ||
| 82122-28370 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-28280 |
CR51,SR50..(05S,06S)..ATM |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CR41,51,KR4#,SR40,50 |
1 | ||
| 82823-24010 |
CR4#,5# ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A |
1 | ||
| 82823-22050 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-28470 | ||||
| 82715-28690 | ||||
| 82715-28720 | ||||
| 82715-28740 | ||||
| 82715-28760 | ||||
| 82715-28860 | ||||
| 90119-08063 | ||||
| 90269-05044 | ||||
| 91611-60814 | ||||
| 91612-61016 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-61016 | ||||
| 91651-G1016 | ||||
| 94185-60800 | ||||
ILLUST NO. 1 OF 9(9812- )SR40,50
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28400 |
SR40,50..ATM |
1 | ||
| 82121-28331 |
CR40,50..ATM |
1 | ||
| 82121-28330 |
CR40,50..ATM |
1 | ||
| 82121-28401 |
SR40,50..ATM |
1 | ||
| 82121-28710 |
SR40,50..ATM |
1 | ||
| 82121-28690 |
CR40,50 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28410 |
SR40,50 |
1 | ||
| 82122-28050 |
SR40,50 |
1 | ||
| 82122-28420 |
CR40,50 |
1 | ||
| 82122-28290 |
CR4#,5# |
1 | ||
| 82122-28370 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-28280 |
CR51,SR50..(05S,06S)..ATM |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CR41,51,KR4#,SR40,50 |
1 | ||
| 82823-24010 |
CR4#,5# ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A |
1 | ||
| 82823-22050 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-28470 | ||||
| 82715-28690 | ||||
| 82715-28720 | ||||
| 82715-28740 | ||||
| 82715-28760 | ||||
| 82715-28820 | ||||
| 82715-28860 | ||||
| 90119-08063 | ||||
| 90269-03067 | ||||
| 91611-60814 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-60814 | ||||
| 91651-61016 | ||||
| 91651-G1016 | ||||
| 94185-60800 | ||||
ILLUST NO. 1 OF 9(9812- )CR4#,5#
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28400 |
SR40,50..ATM |
1 | ||
| 82121-28331 |
CR40,50..ATM |
1 | ||
| 82121-28330 |
CR40,50..ATM |
1 | ||
| 82121-28401 |
SR40,50..ATM |
1 | ||
| 82121-28710 |
SR40,50..ATM |
1 | ||
| 82121-28690 |
CR40,50 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28410 |
SR40,50 |
1 | ||
| 82122-28050 |
SR40,50 |
1 | ||
| 82122-28420 |
CR40,50 |
1 | ||
| 82122-28290 |
CR4#,5# |
1 | ||
| 82122-28370 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-28280 |
CR51,SR50..(05S,06S)..ATM |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-28370 | ||||
| 82715-28470 | ||||
| 82715-28480 | ||||
| 82715-28520 | ||||
| 82715-28690 | ||||
| 82715-28720 | ||||
| 82715-28770 | ||||
| 82715-28820 | ||||
| 82715-28890 | ||||
| 82715-2J010 | ||||
| 82715-89108 | ||||
| 82715-89119 | ||||
| 82729-28030 | ||||
| 90119-08063 | ||||
| 90179-08204 | ||||
| 90269-03067 | ||||
| 91611-60620 | ||||
| 91611-60814 | ||||
| 91612-61016 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-61016 | ||||
| 94185-60600 | ||||
| 94185-60800 | ||||
ILLUST NO. 4 OF 9(9812- )
ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2X250 |
CR40,50..E,V ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 82131-2X230 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X220 |
CR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X310 |
SR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X240 |
CR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X300 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X290 |
SR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82129-28480 |
SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 82131-2X350 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82131-2X270 |
CR40,50..D |
1 | ||
| 82129-28500 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H) |
1 | ||
| 82131-2X320 |
SR40,50..E,V |
1 | ||
| 82131-2X260 |
CR40,50..E,V |
1 | ||
| 82129-28470 |
CR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) |
1 | ||
| 82131-2X360 |
SR40,50..B |
1 | ||
| 82131-2X340 |
SR40,50..D |
1 | ||
| 82131-2X221 |
CR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X241 |
CR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X251 |
CR40,50..E,V ｱﾘ(PTC ﾋ-ﾀ) |
1 | ||
| 82131-2X311 |
SR40,50..E ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82131-2X231 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X301 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X291 |
SR40,50..E,Q ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82129-28100 |
SR40,50..E,V AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅ CD ｶｾﾂﾄ,2DIN & ｱﾘ(4 ｽﾋﾟ-ｶ) |
1 | ||
| 82131-2X321 |
SR40,50..E,V |
1 | ||
| 82131-2X261 |
CR40,50..E,V |
1 | ||
| 82129-28070 |
CR40,50..ATM..(E,V) ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 82129-28630 |
SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 82129-28620 |
CR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(R) |
1 | ||
| 82129-28520 |
CR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28520 |
CR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28530 |
SR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28540 |
CR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82129-28640 |
CR40,50..ATM..E..CBU ﾘﾐﾃﾂﾄﾞ *(H) |
1 | ||
| 82129-28540 |
CR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82129-28090 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵｰﾄｴｱｺﾝ & AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕｰﾅ CD ｶｾﾂﾄ,2DIN & 4 ｽﾋﾟｰｶ) |
1 | ||
| 82129-28530 |
SR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ) |
1 | ||
| 82129-28550 |
SR40,50..E..CBU G ｴｸｻｰﾌﾞ *(J),*(K) & ｱﾘ(ﾃﾞｭｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82129-28550 |
SR40,50..E..CBU ﾘﾓ *(M), *(N) & ｱﾘ(ﾃﾞﾕｱﾙ ｵｰﾄ ｴｱｺﾝ & *35 & CD,2DIN) |
1 | ||
| 82131-2X322 |
SR40,50..E,V |
1 | ||
| 82129-28650 |
SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(H) |
1 | ||
| 82129-28060 |
CR40,50..ATM..(E,V) ｱﾘ(ﾃﾞﾕｱﾙｵｰﾄｴｱｺﾝ & AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕｰﾅ CD ｶｾﾂﾄ,2DIN & 4 ｽﾋﾟｰｶ) |
1 | ||
| 82131-2X302 |
SR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X361 |
SR40,50..B |
1 | ||
| 82131-2R102 |
CR40,50..E,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82131-2X861 |
CR40,50..D ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82131-2R122 |
CR40,50..E,V |
1 | ||
| 82131-2X341 |
SR40,50..D |
1 | ||
| 82131-2X351 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82135-2J430 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J320 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82129-28890 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J450 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J360 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J490 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J480 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82129-28670 |
SR40,50..E..CBU ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(X),*(Y),*(G),*(H) |
1 | ||
| 82129-28600 |
SR40,50..5D..ATM ﾘﾐﾂｸｽ *(V), *(Z) |
1 | ||
| 82135-2J370 |
CR40,50..D |
1 | ||
| 82135-2J350 |
CR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82135-2J440 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J420 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82129-28880 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J510 |
SR40,50..ATM..B |
1 | ||
| 82129-28660 |
SR40,50..E..CBU ﾒﾓﾘｱﾙ ｴﾃﾞｲｼﾖﾝ *(X),*(Y),*(G),*(H) & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82135-2J470 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82135-2J330 |
CR40,50..E,S,V |
1 | ||
| 82129-28870 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82135-2J670 |
SR40,50..ATM..D |
1 | ||
| 82135-2J361 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J460 |
SR40,50..E,S,V ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 82135-2J351 |
CR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82129-28891 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄ ｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J321 |
CR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J451 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ,ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82135-2J481 |
SR40,50..E,S,V ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 82135-2J431 |
SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾕｱﾙｵ-ﾄｴｱｺﾝ & ﾅﾋﾞｹﾞ-ｼﾖﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82135-2J680 |
SR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) OR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 82135-2J340 |
CR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82135-2J491 |
SR40,50..E,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ & ﾅﾋﾞｹﾞ-ｼﾖﾝ) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28160 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82133-28200 |
CR40,SR40,50..E,S,V |
1 | ||
| 82133-28190 |
CR40,SR40,50..E,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82133-28210 |
CR40,SR40,50..E,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82133-28170 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82133-28260 |
CR40,50,SR40,50..D |
1 | ||
| 82133-28180 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82133-28220 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82133-28270 |
CR40,50,SR40,50..D ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82133-28230 |
SR40,50..B ｱﾘ(*80,ｳﾝﾃﾝｾｷ) OR ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
CR4#,5#,KR4#,SR40,50 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08285 |
CR4#,5#,KR4#,SR40,50 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08286 |
CR4#,5#,KR4#,SR40,50 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08203 |
CR4#,5#,KR4#,SR40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08280 |
CR4#,5#,KR4#,SR40,50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08283 |
CR40,50,SR40,50 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ |
1 | ||
| 90982-08254 |
CR4#,5#,KR4#,SR40,50 120A,ｵｽ端子,白 |
1 | ||
| 90982-08284 |
CR40,50,SR40,50 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08285 |
CR40,50,SR40,50 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
CR40,50,SR40,50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CR40,50 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
SR40,50 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08286 |
CR40,50,SR40,50 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08284 |
CR4#,5#,KR4#,SR40,50 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
CR4#,5#,KR4#,SR40,50 100A,ｵｽ端子,青 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 82711-1E510 | ||||
| 82711-3F040 | ||||
| 82711-3F230 | ||||
| 90119-06923 | ||||
| 90179-06156 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
