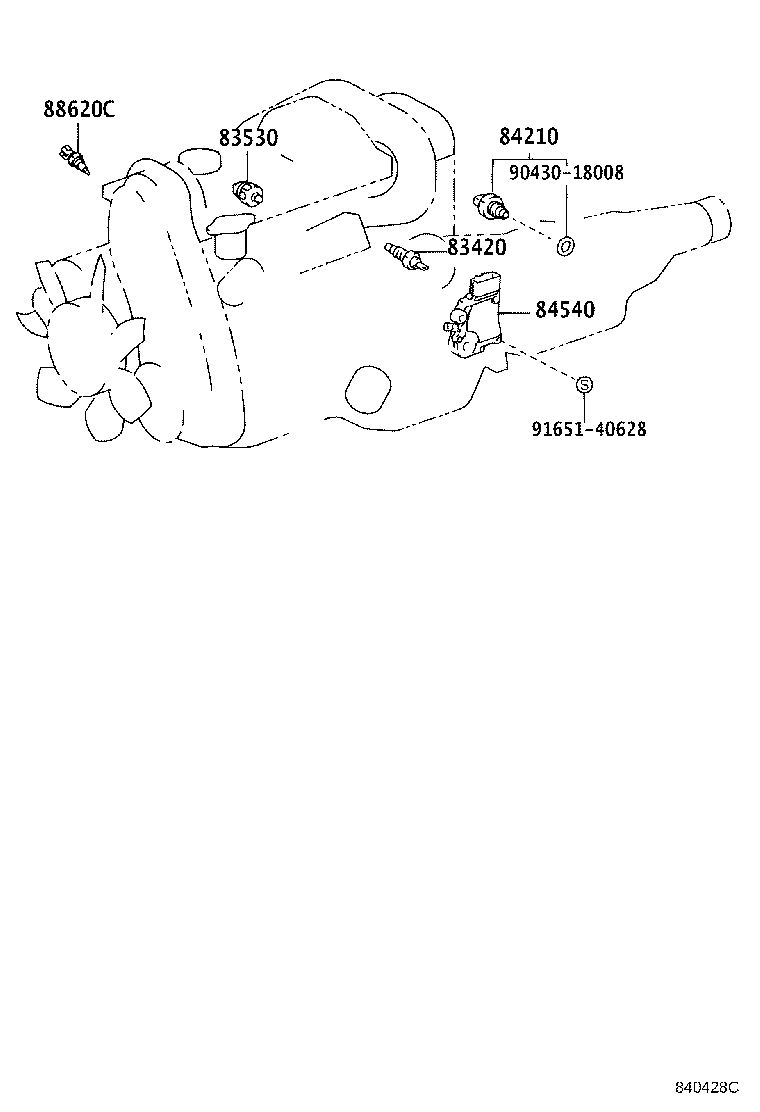

SR50G-HRSEK5 (1996)
Toyota Lite/Townace Noah,V
ILLUST NO. 1 OF 7(9610-9812)CR4#,5#
ｴﾝｼﾞﾝ ｽｲﾂﾁ, ﾐﾂｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
CR4#,5#,KR42,52 |
1 | ||
| 83420-16040 |
CR40,50,KR4# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28010 |
CR4#,5# DENSO |
1 | ||
| 83530-28020 |
SR40,50 DENSO |
1 | ||
| 83530-60010 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28020 |
KR4#,SR40,50 DENSO |
1 | ||
| 83530-30090 |
KR4#,SR40,50 |
1 | ||
| 83530-28010 |
CR40,50 DENSO |
1 | ||
| 83530-60010 |
CR40,50 YAZAKI |
1 | ||
| 83530-14070 |
CR4#,5# DENSO |
1 | ||
| 83530-60020 |
KR4#,SR40,50 YAZAKI |
1 | ||
| 83530-60020 |
SR40,50 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30290 |
CR4#,5#,KR4#,SR40,50..ATM 東海理化 |
1 | ||
| 84540-30300 |
CR4#,5#,KR4#,SR40,50..ATM MATSUSHITA |
1 | ||
| 84540-53010 |
CR40,50,SR40,50..ATM |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88620-28020 |
CR4#,5# |
1 | ||
| 88620-28040 |
CR4#,5# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-35010 |
CR40,50;CR41..ATM ｱﾘ(EGR) |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 93385-16025 | ||||

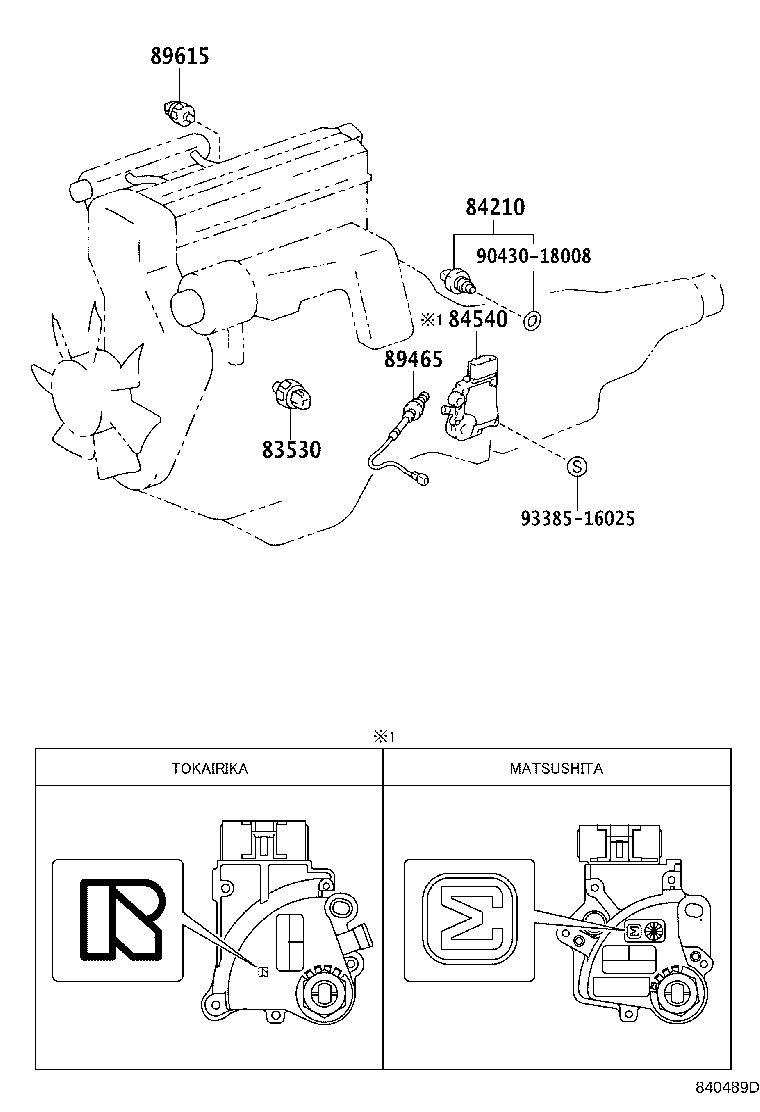

ILLUST NO. 1 OF 7(9812- )CR40,50
ｴﾝｼﾞﾝ ｽｲﾂﾁ, ﾐﾂｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
CR4#,5#,KR42,52 |
1 | ||
| 83420-16040 |
CR40,50,KR4# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28010 |
CR4#,5# DENSO |
1 | ||
| 83530-28020 |
SR40,50 DENSO |
1 | ||
| 83530-60010 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28020 |
KR4#,SR40,50 DENSO |
1 | ||
| 83530-30090 |
KR4#,SR40,50 |
1 | ||
| 83530-28010 |
CR40,50 DENSO |
1 | ||
| 83530-60010 |
CR40,50 YAZAKI |
1 | ||
| 83530-14070 |
CR4#,5# DENSO |
1 | ||
| 83530-60020 |
KR4#,SR40,50 YAZAKI |
1 | ||
| 83530-60020 |
SR40,50 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30290 |
CR4#,5#,KR4#,SR40,50..ATM 東海理化 |
1 | ||
| 84540-30300 |
CR4#,5#,KR4#,SR40,50..ATM MATSUSHITA |
1 | ||
| 84540-53010 |
CR40,50,SR40,50..ATM |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88620-28020 |
CR4#,5# |
1 | ||
| 88620-28040 |
CR4#,5# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40628 | ||||

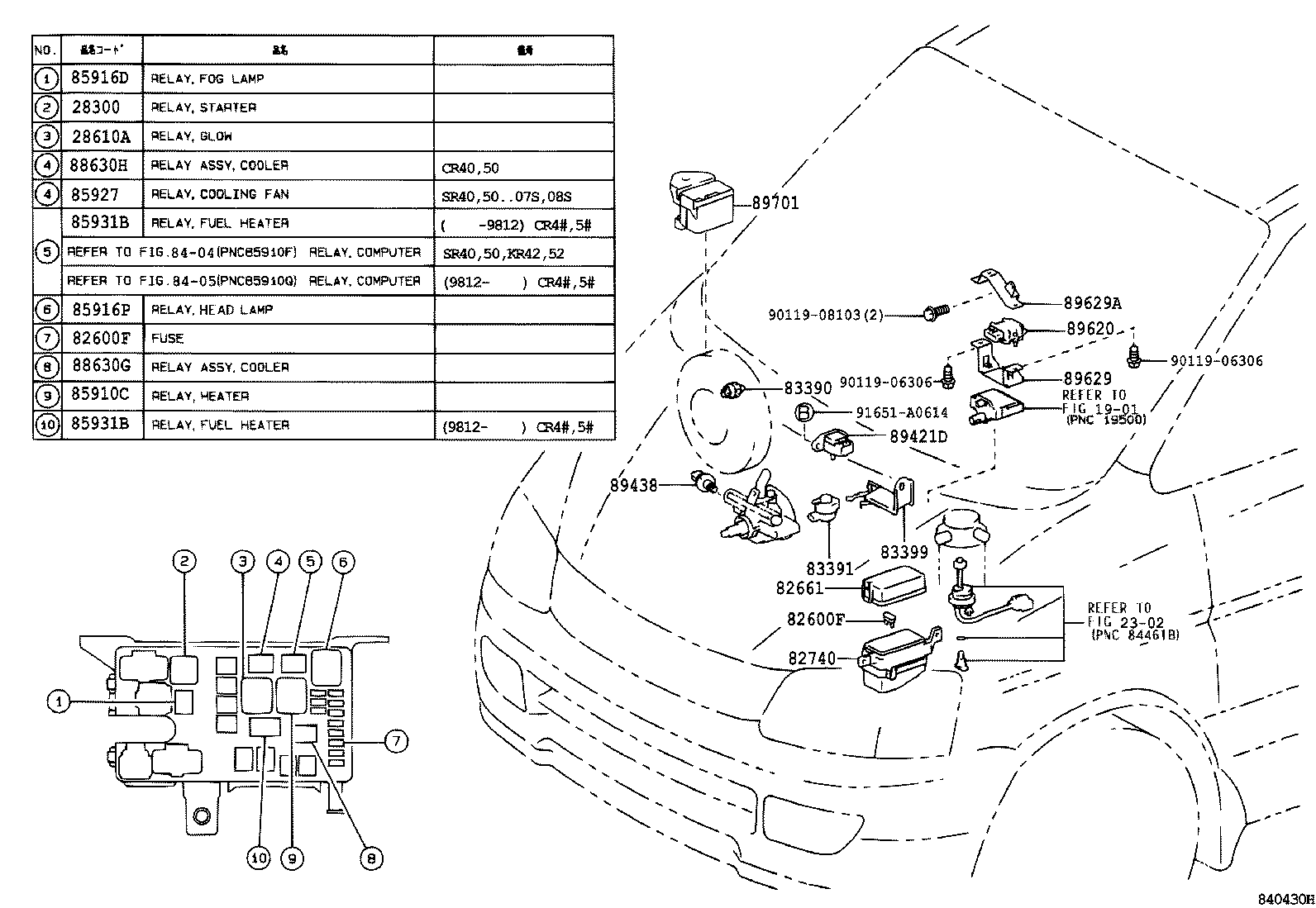

ILLUST NO. 2 OF 7(9610- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3CTE,3SFE..CR40,50,SR40,50 |
1 | ||
| 28300-10020 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CR40,50,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CR40,50,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
CR40,50,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
CR4#,5#,KR4#,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
CR40,50,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
CR4#,5#,KR4#,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CR4#,5#,KR4#,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CR4#,5#,KR4#,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CR40,50,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CR40,50,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
CR40,50,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
CR4#,5#,KR4#,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
CR40,50,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
CR4#,5#,KR4#,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CR4#,5#,KR4#,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CR4#,5#,KR4#,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-28130 |
SR40,50 |
1 | ||
| 82661-28140 |
CR40,50 |
1 | ||
| 82661-28250 |
SR40,50 |
1 | ||
| 82661-28260 |
CR40,50 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82741-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 82741-28030 |
CR40,50,SR40,50 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
CR4#,5# |
1 | ||
| 83390-32100 |
CR40,50 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
CR40,50,SR40,50 |
1 | ||
| 90987-04002 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 90987-02012 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
CR40,50,SR40,50 |
1 | ||
| 90987-02006 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
SR40,50..07S,08S |
1 | ||
| 90987-02012 |
SR40,50..07S,08S |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02012 |
CR4#,5# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02012 |
CR4#,5# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 90987-02012 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02012 |
CR40,50 |
1 | ||
| 90987-02012 |
CR40,50 |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89421-60030 |
CR40,50;CR41..ATM |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
CR40,50 |
1 | ||
| 89701 - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-12010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 89701-12010 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-06306 | ||||
| 90119-08103 | ||||
| 91651-A0614 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 2302 | ||||
| 8404 | ||||
| 8405 | ||||
ILLUST NO. 3 OF 7(9610-9812)
ｶｳﾙ, ｲﾝﾊﾟﾈ ﾘﾚ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-28010 |
CR40,50,SR40,50 |
1 | ||
| 81980-50030 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 81980-12070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CR40,50,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CR40,50,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
CR40,50,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
CR4#,5#,KR4#,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
CR40,50,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
CR4#,5#,KR4#,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CR4#,5#,KR4#,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CR4#,5#,KR4#,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CR40,50,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CR40,50,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
CR40,50,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
CR4#,5#,KR4#,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
CR40,50,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
CR4#,5#,KR4#,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CR4#,5#,KR4#,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CR4#,5#,KR4#,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-28420 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 82683-28430 |
CR4#,5#,SR40,50..B,D,N |
1 | ||
| 82683-28420 |
CR50..Q,V;CR40,SR40,50..E,Q,V |
1 | ||
| 82683-28270 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 82683-28430 |
CR4#,51,SR40,50..B,D,N |
1 | ||
| 82683-28280 |
CR40,50,SR40,50..B,D |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-28170 |
CR4#,5#,SR40,50 |
1 | ||
| 82661-28170 |
CR50..Q,V;CR4#,51,SR40,50 |
1 | ||
| 82661-28290 |
CR40,50,SR40,50 |
1 | ||

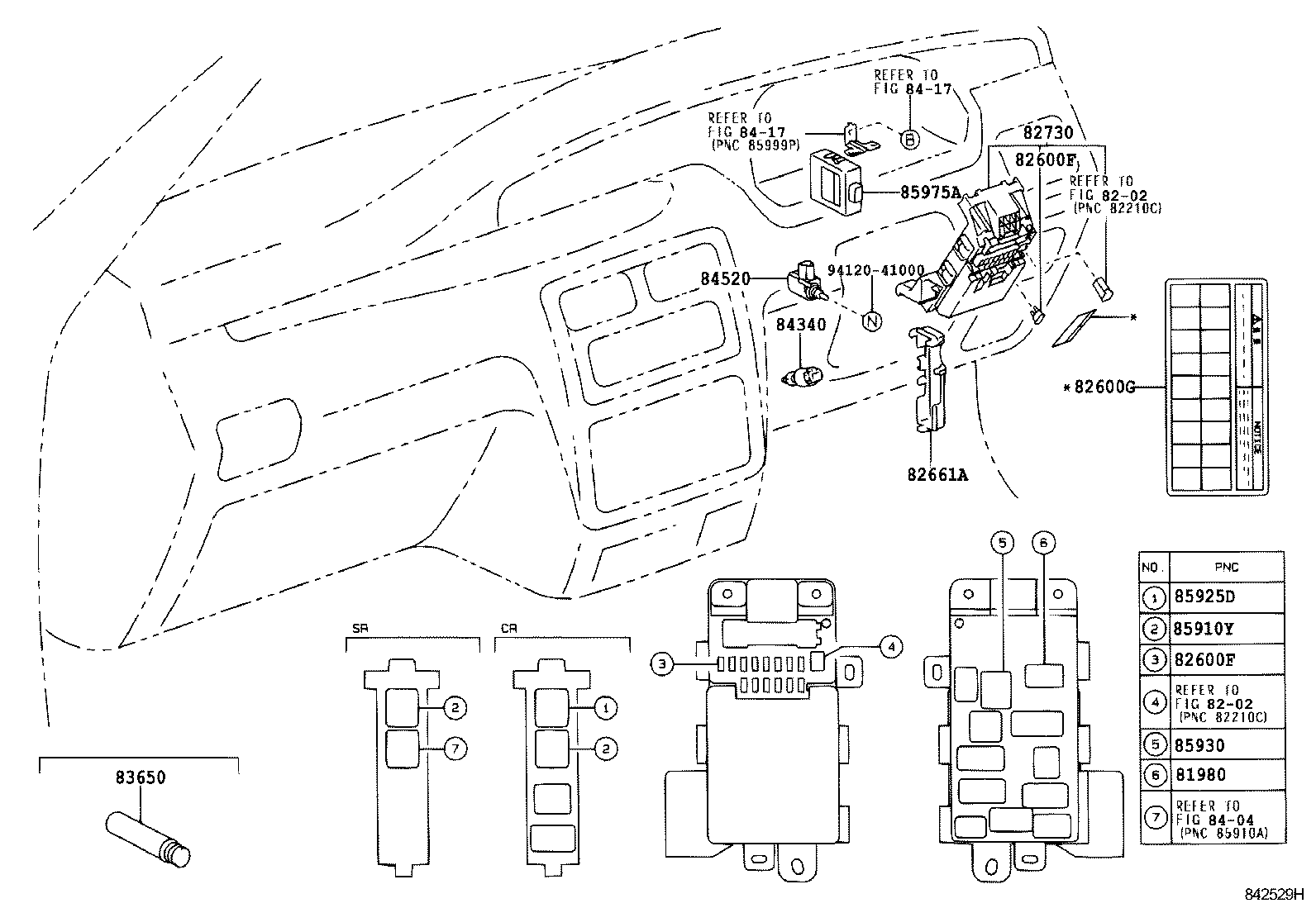

| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-28080 |
SR40,50..E,S,V ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82730-28030 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 82730-28080 |
SR40,50..Q;CR40,50..E,Q,S,V |
1 | ||
| 82730-28090 |
SR40,50..E,S,V ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82730-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 82730-28030 |
CR4#,51,KR4#,SR40,50..B,D,N |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
CR40,50,SR40,50 |
1 | ||
| 90986-01005 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84340-32050 |
CR40,50,SR40,50 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02012 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 85925-17010 |
CR4#,5# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 85930E - RELAY, SUN ROOF | ||||
| 90987-02012 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 85975A - RELAY, SLIDE DOOR CLOSER | ||||
| 85975-28040 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85975-28050 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85975A - RELAY, SLIDE DOOR CLOSER | ||||
| 85975-28040 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85975-28050 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-28040 |
CR40,50 |
1 | ||
| 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-28040 |
CR40,50;CR41..ATM |
1 | ||
| 89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-28050 |
CR40,50;CR41..ATM |
1 | ||
| 89669A - BRACKET, ENGINE CONTROL COMPUTER, NO.4 | ||||
| 89669-28060 |
CR40,50;CR41..ATM |
1 | ||
| Common parts | ||||
| 90179-06036 | ||||
| 91635-60616 | ||||
| 91651-40616 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8417 | ||||
ILLUST NO. 6 OF 7(9610-0207)
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
CR4#,5#,KR4#,SR40,50 左側 |
1 | ||
| 84231-28090 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 84231-32050 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 84231-33071 |
CR40,50,SR40,50 左側 |
1 | ||
| 84231-28090 |
CR40,50,SR40,50 右側 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-33071 |
CR4#,5#,KR4#,SR40,50 左側 |
1 | ||
| 84231-28090 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 84231-32050 |
CR4#,5#,KR4#,SR40,50 右側 |
1 | ||
| 84231-33071 |
CR40,50,SR40,50 左側 |
1 | ||
| 84231-28090 |
CR40,50,SR40,50 右側 |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-28070 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 84231-28080 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 84231-28080 |
CR40,50,SR40,50..4D |
1 | ||
| 84231-28071 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 84234E - SWITCH, COURTESY LAMP (FOR SLIDE DOOR) | ||||
| 84231-28070 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 84231-28080 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 84231-28080 |
CR40,50,SR40,50..4D |
1 | ||
| 84231-28071 |
CR4#,5#,KR4#,SR40,50..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84261-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84261-28150 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84261-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84261-28150 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84261C - JUNCTION, SLIDE DOOR CONTROL,MALE NO.1 | ||||
| 84261-28070 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84261-28120 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84261-28140 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84261-28120 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84262-28100 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84262-28031 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84262-28180 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84262-28170 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84262-28100 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84262-28031 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84262-28180 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84262-28170 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84262C - JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1 | ||||
| 84262-28110 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84262-28110 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84262-28160 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84262-28050 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 84810-12080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84810F - SWITCH ASSY, SLIDE DOOR POWER WINDOW REGULATOR | ||||
| 84810-32060B1 |
CR40,50,SR40,50..D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 84810-32060G1 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 84810-32060G1 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 84810-32060B1 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-28070 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84820-28090 |
CR40,50,SR40,50..D |
1 | ||
| 84820-28140 |
CR40,50,SR40,50..D |
1 | ||
| 84820-28140 |
CR40,50,SR40,50..D |
1 | ||
| 84820-28130 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84820-28130 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84820-28110 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 85975 - RELAY, SLIDE DOOR CLOSER | ||||
| 85975-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85975-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85986 - BRACKET, RELAY, NO.2 | ||||
| 85986-28010 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 85986-28010 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90119-06709 | ||||
| 90153-60012 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90189-06034 | ||||

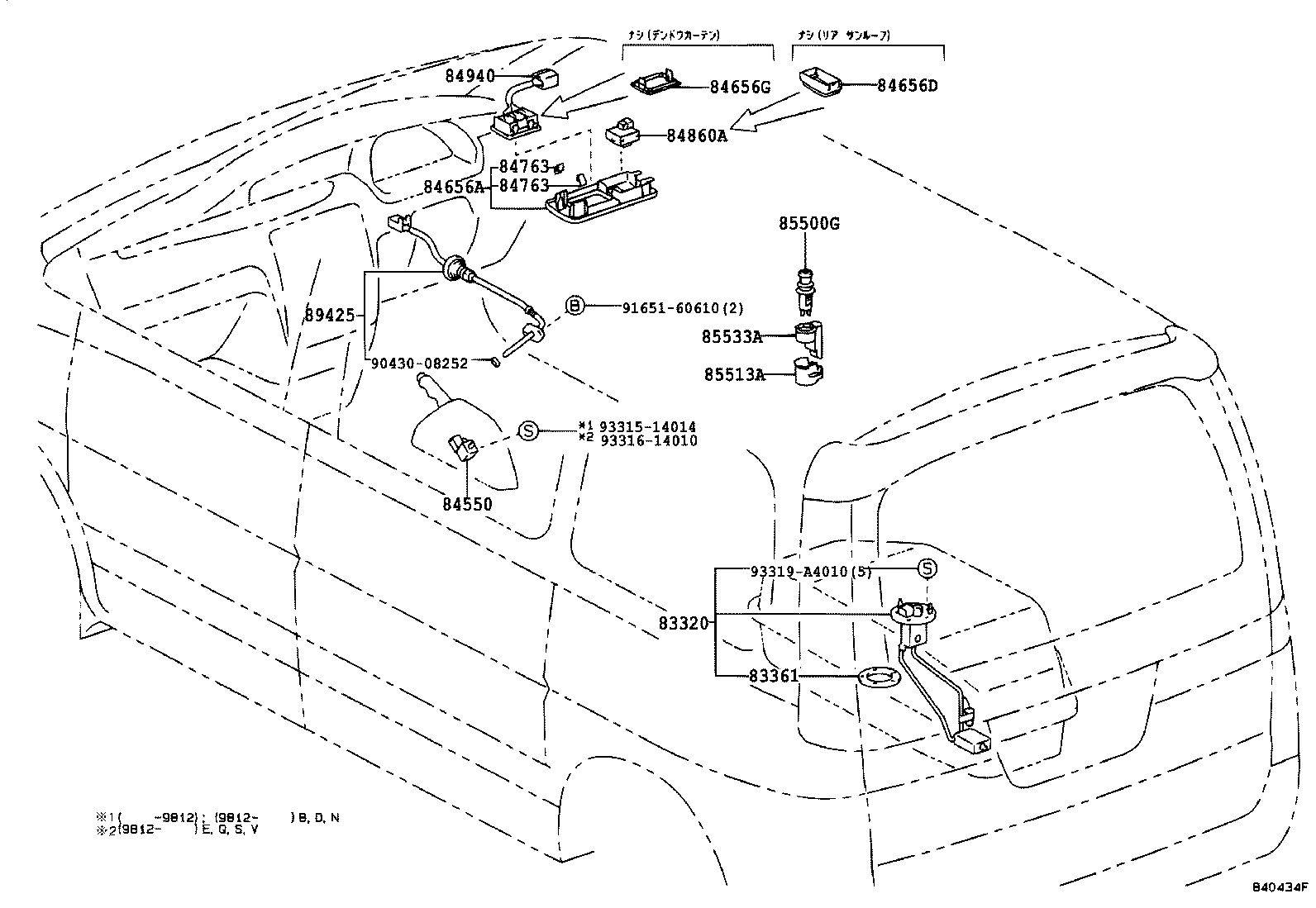

ILLUST NO. 7 OF 7(9610- )
ﾙ-ﾌ,ﾌﾛｱ,ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80346 |
CR4#,5# |
1 | ||
| 83320-80347 |
KR4#,SR40,50 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 77169-14020 |
CR40,50,SR40,50 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84550-33010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84550-16060 |
CR40,50,SR40,50..B,D |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-28030B1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 84656-28030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 84656-28030B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 84656-28030G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 84656D - COVER, BEZEL SWITCH HOLE | ||||
| 55539-28100G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 55539-28100B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 55539-28100B1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 55539-28100G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 84656G - COVER, BEZEL SWITCH HOLE | ||||
| 55539-28080G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 55539-28080B1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 55539-28080B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 55539-28080G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-28020 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-28020 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-28041B1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 84860-28041G0 |
CR40,50,SR40,50..HRF..(E,Q) SAGE,TRIM6# |
1 | ||
| 84860-28040G0 |
CR40,50,SR40,50..HRF..(E,Q) SAGE,TRIM6# |
1 | ||
| 84860-28041B0 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) MOON MIST,TRIM1# |
1 | ||
| 84860-28041G0 |
CR40,50,SR40,50..HRF..(E,Q) SAGE,TRIM6# |
1 | ||
| 84860-28040B0 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q) MOON MIST,TRIM1# |
1 | ||
| 84940 - SWITCH ASSY, CURTAIN | ||||
| 84904-28020B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 84904-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 84904-28020B1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 84904-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-28050 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85500-28050 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-12020 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85513-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85533A - LENS, CIGARETTE LIGHTER INDICATOR, REAR | ||||
| 85533-26010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85533-26010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-80039 |
SR40,50 |
1 | ||
| Common parts | ||||
| 90430-08252 | ||||
| 91651-60610 | ||||
| 93315-14014 | ||||
| 93316-14010 | ||||
| 93319-A4010 | ||||
ILLUST NO. 5 OF 7(9610-9812)
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
CR40,50,SR40,50 |
1 | ||
| 84052-12070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
CR40,50,KR41,SR40,50;CR41,51,KR42..D..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84140-32230 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84140-12380 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-44030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84310-28850 |
CR40,50,SR40,50..B,D |
1 | ||
| 84310-28860 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84310-1G060 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84310-1E480 |
CR40,50,SR40,50..B,D |
1 | ||
| 84310-1E490 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CR40,50,SR40,50 |
1 | ||
| 84450-12200 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84652-28620 |
CR40,50,SR40,50..B,D |
1 | ||
| 84652-28560 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84652-1A560 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84652-28580 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 5 OF 7(9610-9812)
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ---ｴｱﾊﾞﾂｸ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
CR40,50,SR40,50 |
1 | ||
| 84052-12070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
CR40,50,KR41,SR40,50;CR41,51,KR42..D..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84140-32230 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84140-12380 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12080 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84306-35010 |
CR40,50,KR41,SR40,50;CR41,51,KR42..D..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84306-20080 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84306-35011 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ),ﾀｲﾌﾟ A |
1 | ||
| 84306-52010 |
CR40,50,SR40,50 |
1 | ||
| 84306-12070 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ),ﾀｲﾌﾟ B |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-44030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84310-28850 |
CR40,50,SR40,50..B,D |
1 | ||
| 84310-28860 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84310-1G060 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84310-1E480 |
CR40,50,SR40,50..B,D |
1 | ||
| 84310-1E490 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CR40,50,SR40,50 |
1 | ||
| 84450-12200 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84652-28620 |
CR40,50,SR40,50..B,D |
1 | ||
| 84652-28560 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84652-1A560 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84652-28580 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

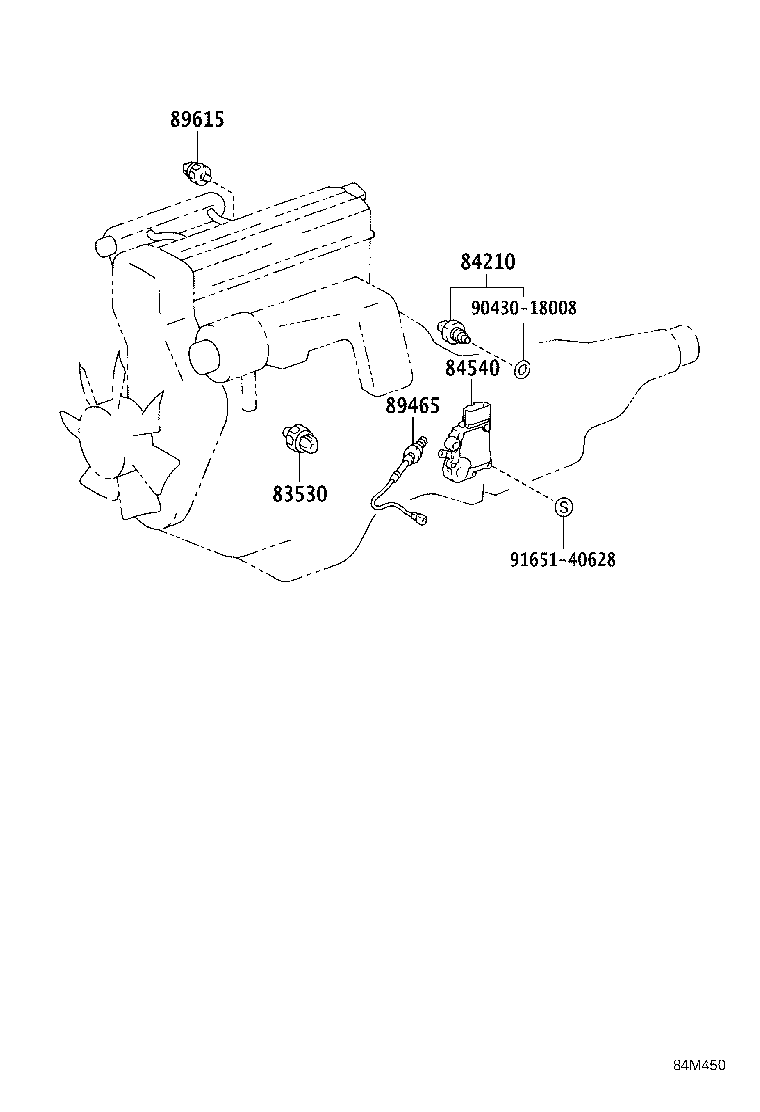

ILLUST NO. 1 OF 7(9610-9812)SR40,50
ｴﾝｼﾞﾝ ｽｲﾂﾁ, ﾐﾂｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28010 |
CR4#,5# DENSO |
1 | ||
| 83530-28020 |
SR40,50 DENSO |
1 | ||
| 83530-60010 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28020 |
KR4#,SR40,50 DENSO |
1 | ||
| 83530-30090 |
KR4#,SR40,50 |
1 | ||
| 83530-28010 |
CR40,50 DENSO |
1 | ||
| 83530-60010 |
CR40,50 YAZAKI |
1 | ||
| 83530-14070 |
CR4#,5# DENSO |
1 | ||
| 83530-60020 |
KR4#,SR40,50 YAZAKI |
1 | ||
| 83530-60020 |
SR40,50 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30290 |
CR4#,5#,KR4#,SR40,50..ATM 東海理化 |
1 | ||
| 84540-30300 |
CR4#,5#,KR4#,SR40,50..ATM MATSUSHITA |
1 | ||
| 84540-53010 |
CR40,50,SR40,50..ATM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-14120 |
SR40,50 |
1 | ||
| 89465-14120 |
SR40,50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
SR40,50 DENSO |
1 | ||
| 89615-20030 |
SR40,50 TOYOTA |
1 | ||
| 89615-32030 |
SR40,50 DENSO |
1 | ||
| 89615-33020 |
SR40,50 DENSO |
1 | ||
| 89615-32040 |
SR40,50 |
1 | ||
| 89615-20030 |
SR40,50 TOYOTA |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 93385-16025 | ||||
ILLUST NO. 4 OF 7(9610-9812)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙSW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28130 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84332-28150 |
CR40,50,SR40,50 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
CR4#,5#,KR4#,SR40,50 14V 0.84W |
1 | ||
| 84999-10860 |
CR40,50,SR40,50 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 84660-10110 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 0.08A |
1 | ||
| 88607-10020 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 0.08A |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-28040 |
CR40,50,SR40,50..08S |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 88607-28010 |
CR40,50,SR40,50..08S 14V 0.84W |
1 | ||
| 88607-16010 |
CR40,50,SR40,50..08S 14V 0.065A |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 88607-28010 |
CR40,50,SR40,50..08S 14V 0.84W |
1 | ||
| 88607-16010 |
CR40,50,SR40,50..08S 14V 0.065A |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-28050 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 14V 0.84W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
CR40,50,SR40,50..E,V |
1 | ||
| 84870-34010 |
CR40,50,SR40,50..E,S,V |
1 | ||
| 84870-16040 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84870-28020 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-87003 |
CR40,50,SR40,50..B,D |
1 | ||
| 84930-87003 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
CR40,50,SR40,50 |
1 | ||
| 85500-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
CR40,50,SR40,50 |
1 | ||
| 85500-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
CR40,50,SR40,50..E,Q,V 14V 1.4W |
1 | ||
| 84999-10250 |
CR40,50,SR40,50..E,Q,S,V 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85513-28010 |
CR40,50,SR40,50 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85513-28010 |
CR40,50,SR40,50 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85515-32010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 85533-26010 |
CR40,50,SR40,50..B,D |
1 | ||
ILLUST NO. 3 OF 7(9812- )
ｶｳﾙ,ｲﾝﾊﾟﾈ ﾘﾚ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-28010 |
CR40,50,SR40,50 |
1 | ||
| 81980-50030 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 81980-12070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CR40,50,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CR40,50,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
CR40,50,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
CR4#,5#,KR4#,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
CR40,50,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
CR4#,5#,KR4#,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CR4#,5#,KR4#,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CR4#,5#,KR4#,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CR40,50,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
CR40,50,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
CR40,50,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
CR4#,5#,KR4#,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
CR40,50,SR40,50 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
CR4#,5#,KR4#,SR40,50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
CR4#,5#,KR4#,SR40,50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
CR4#,5#,KR4#,SR40,50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-28420 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 82683-28430 |
CR4#,5#,SR40,50..B,D,N |
1 | ||
| 82683-28420 |
CR50..Q,V;CR40,SR40,50..E,Q,V |
1 | ||
| 82683-28270 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 82683-28430 |
CR4#,51,SR40,50..B,D,N |
1 | ||
| 82683-28280 |
CR40,50,SR40,50..B,D |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-28170 |
CR4#,5#,SR40,50 |
1 | ||
| 82661-28170 |
CR50..Q,V;CR4#,51,SR40,50 |
1 | ||
| 82661-28290 |
CR40,50,SR40,50 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-28080 |
SR40,50..E,S,V ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82730-28030 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 82730-28080 |
SR40,50..Q;CR40,50..E,Q,S,V |
1 | ||
| 82730-28090 |
SR40,50..E,S,V ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82730-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 82730-28030 |
CR4#,51,KR4#,SR40,50..B,D,N |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
CR40,50,SR40,50 |
1 | ||
| 90986-01005 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84340-32050 |
CR40,50,SR40,50 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02012 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 85925-17010 |
CR4#,5# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
CR4#,5#,KR42,SR40,50..05S,07S,08S |
1 | ||
| 85975A - RELAY, SLIDE DOOR CLOSER | ||||
| 85975-28040 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85975-28050 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8417 | ||||

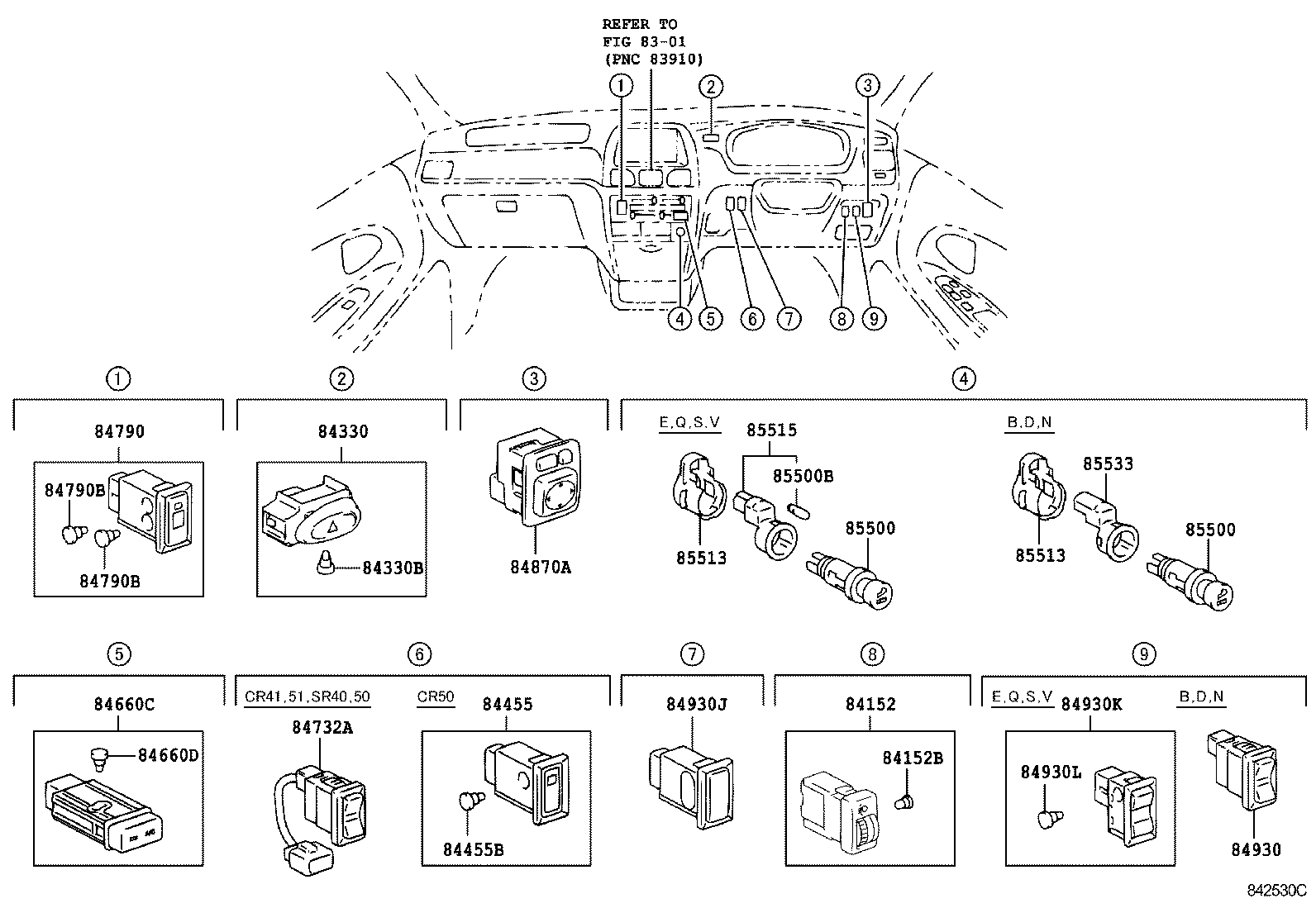

ILLUST NO. 4 OF 7(9812- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙSW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28130 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84332-28150 |
CR40,50,SR40,50 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
CR4#,5#,KR4#,SR40,50 14V 0.84W |
1 | ||
| 84999-10860 |
CR40,50,SR40,50 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 84660-10110 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 0.08A |
1 | ||
| 88607-10020 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S 14V 0.08A |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-28050 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 14V 0.84W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
CR40,50,SR40,50..E,V |
1 | ||
| 84870-34010 |
CR40,50,SR40,50..E,S,V |
1 | ||
| 84870-16040 |
CR40,50,SR40,50..E,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84870-28020 |
CR40,50,SR40,50..E,Q,S,V ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-87003 |
CR40,50,SR40,50..B,D |
1 | ||
| 84930-87003 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-26040 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-26030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01013 |
CR40,50,SR40,50..E,Q,S,V 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
CR40,50,SR40,50 |
1 | ||
| 85500-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
CR40,50,SR40,50 |
1 | ||
| 85500-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
CR40,50,SR40,50..E,Q,V 14V 1.4W |
1 | ||
| 84999-10250 |
CR40,50,SR40,50..E,Q,S,V 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85513-28010 |
CR40,50,SR40,50 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 85513-28010 |
CR40,50,SR40,50 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85515-32010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 85533-26010 |
CR40,50,SR40,50..B,D |
1 | ||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 5 OF 7(9812- )CR4#,5#,KR42,SR40,50
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
CR40,50,SR40,50 |
1 | ||
| 84052-12070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
CR40,50,KR41,SR40,50;CR41,51,KR42..D..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84140-32230 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84140-12380 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CR40,50,SR40,50 |
1 | ||
| 84450-12200 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84652-28620 |
CR40,50,SR40,50..B,D |
1 | ||
| 84652-28560 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84652-1A560 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84652-28580 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 7(9812- )
ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ---ｴｱﾊﾞﾂｸ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
CR40,50,SR40,50 |
1 | ||
| 84052-12070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20570 |
CR40,50,KR41,SR40,50;CR41,51,KR42..D..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84140-32230 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 84140-12380 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12080 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84306-35010 |
CR40,50,KR41,SR40,50;CR41,51,KR42..D..CBU ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| 84306-20080 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84306-35011 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ),ﾀｲﾌﾟ A |
1 | ||
| 84306-52010 |
CR40,50,SR40,50 |
1 | ||
| 84306-12070 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ),ﾀｲﾌﾟ B |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CR40,50,SR40,50 |
1 | ||
| 84450-12200 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-44030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84652-28620 |
CR40,50,SR40,50..B,D |
1 | ||
| 84652-28560 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 84652-1A560 |
CR4#,5#,KR4#,SR40,50..B,D |
1 | ||
| 84652-28580 |
CR40,50,SR40,50..B,D ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

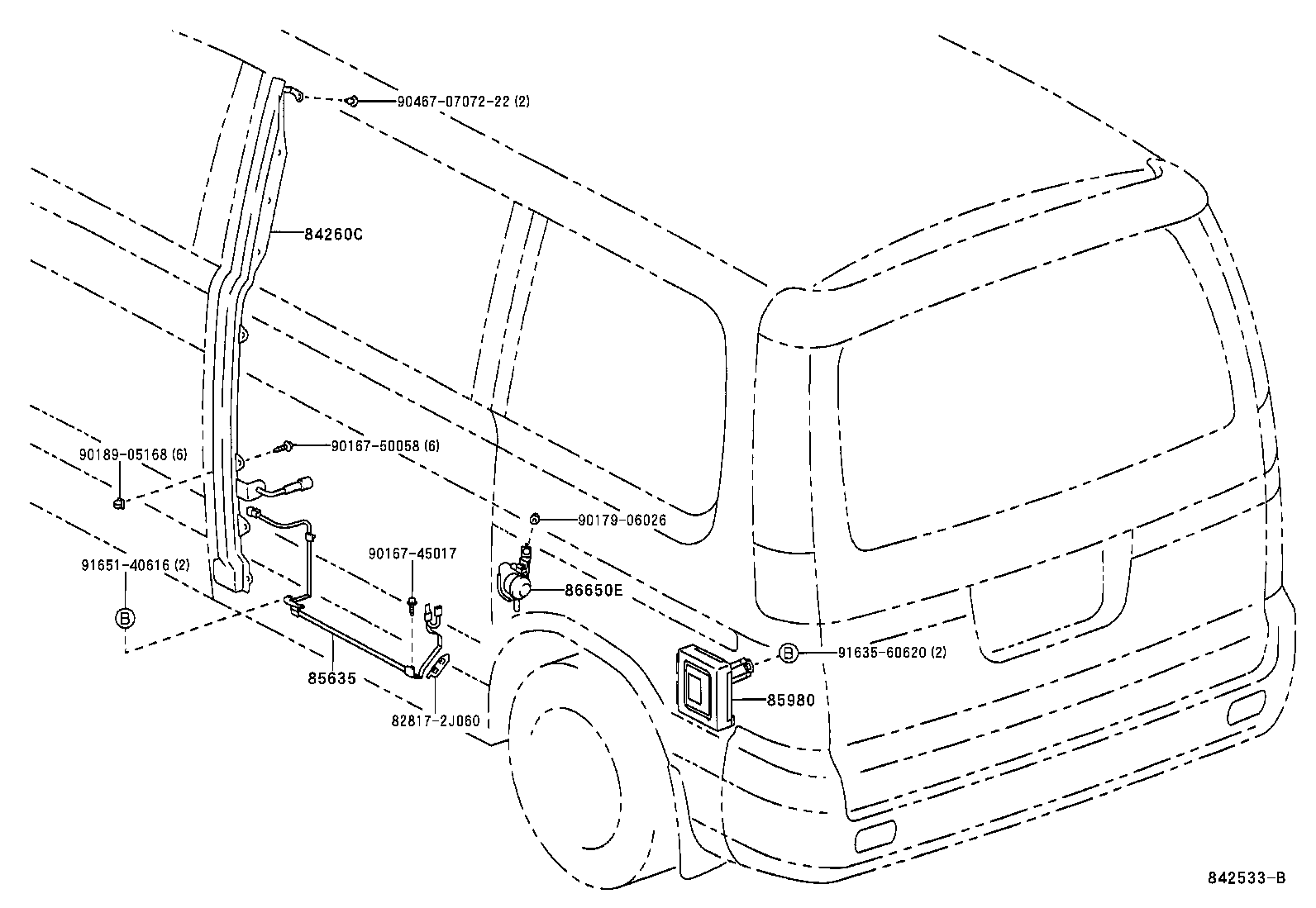

ILLUST NO. 6 OF 7(9812- )E,Q,S,V
ﾄﾞｱ---ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84260C - SENSOR ASSY, POWER SLIDE DOOR | ||||
| 84260-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85635 - CABLE, AUTO DOOR | ||||
| 85635-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-28080 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-28070 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 82817-2J060 | ||||
| 90167-45017 | ||||
| 90167-50058 | ||||
| 90179-06026 | ||||
| 90189-05168 | ||||
| 90467-0707222 | ||||
| 91635-60620 | ||||
| 91651-40616 | ||||
ILLUST NO. 1 OF 7(9812- )SR40,50
ｴﾝｼﾞﾝ ｽｲﾂﾁ, ﾐﾂｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28010 |
CR4#,5# DENSO |
1 | ||
| 83530-28020 |
SR40,50 DENSO |
1 | ||
| 83530-60010 |
CR4#,5# YAZAKI |
1 | ||
| 83530-28020 |
KR4#,SR40,50 DENSO |
1 | ||
| 83530-30090 |
KR4#,SR40,50 |
1 | ||
| 83530-28010 |
CR40,50 DENSO |
1 | ||
| 83530-60010 |
CR40,50 YAZAKI |
1 | ||
| 83530-14070 |
CR4#,5# DENSO |
1 | ||
| 83530-60020 |
KR4#,SR40,50 YAZAKI |
1 | ||
| 83530-60020 |
SR40,50 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30290 |
CR4#,5#,KR4#,SR40,50..ATM 東海理化 |
1 | ||
| 84540-30300 |
CR4#,5#,KR4#,SR40,50..ATM MATSUSHITA |
1 | ||
| 84540-53010 |
CR40,50,SR40,50..ATM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-14120 |
SR40,50 |
1 | ||
| 89465-14120 |
SR40,50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
SR40,50 DENSO |
1 | ||
| 89615-20030 |
SR40,50 TOYOTA |
1 | ||
| 89615-32030 |
SR40,50 DENSO |
1 | ||
| 89615-33020 |
SR40,50 DENSO |
1 | ||
| 89615-32040 |
SR40,50 |
1 | ||
| 89615-20030 |
SR40,50 TOYOTA |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40628 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
