SR50G-HRSEK (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

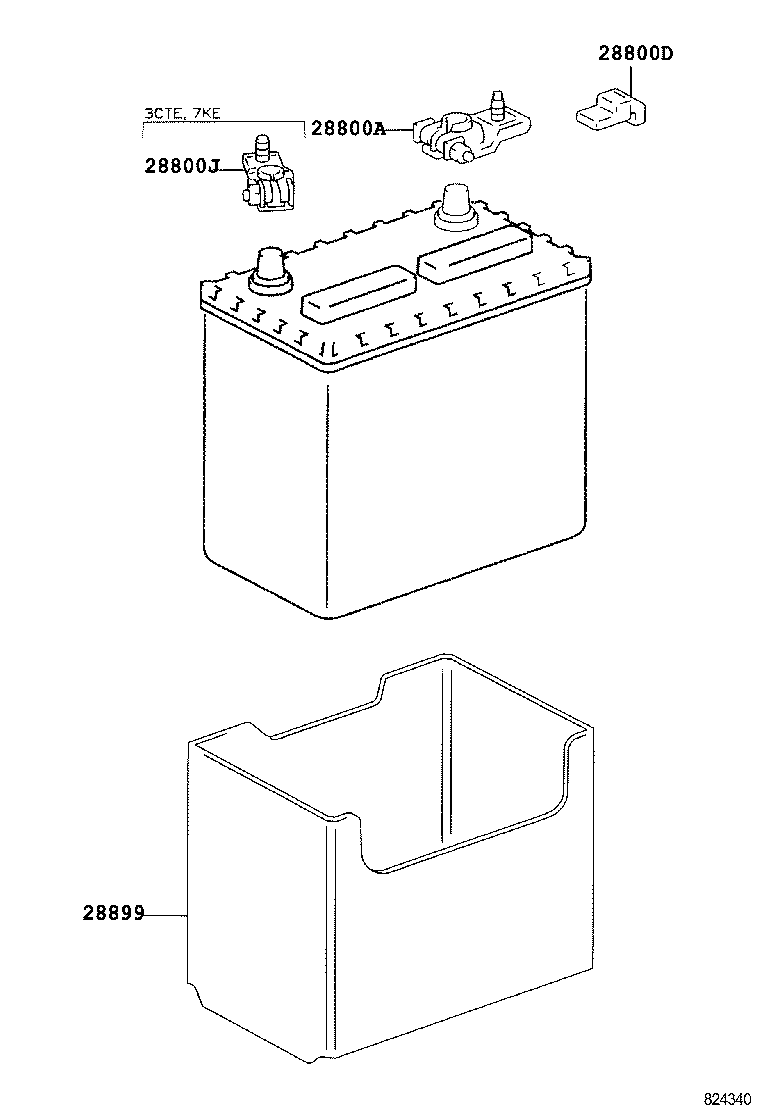

ILLUST NO. 1 OF 2(9610- )

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 28899
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

5K,7K,3SFE..KR4#,SR40,50

 1
90982-05052

3SFE..SR40,50

 1
90982-05057

7KE,3SFE..KR42,SR40,50

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

3CTE,3SFE..CR40,50,SR40,50

 1
82821-24010

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 1
28899 - INSULATOR, BATTERY
28899-46020

7K,3SFE..KR42,SR40,50..ATM

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24R)

 1
28899-74150

7K..KR42..ATM;3SFE..SR40,50..ATM..CBU

 1
28899-46020

3SFE..SR40,50..ATM

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24R)

 1
28899-74150

3SFE..SR40,50..ATM..CBU

 1

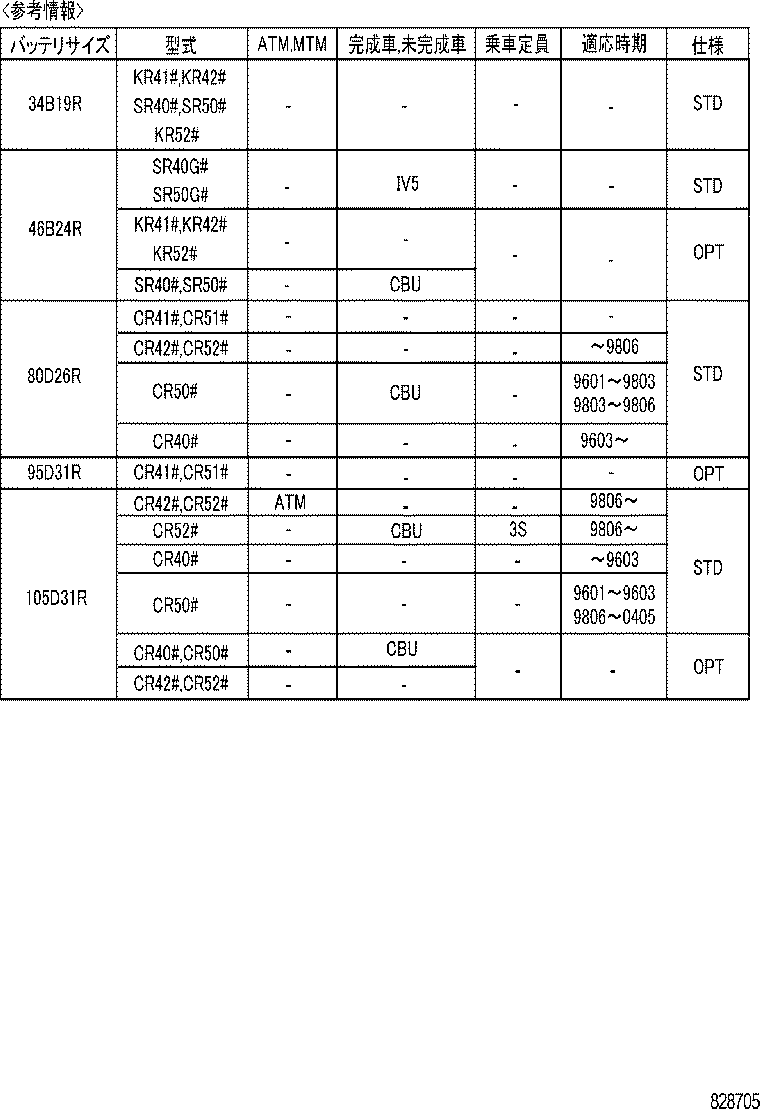

ILLUST NO. 2 OF 2(9610- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
