SR50G-GRSVK (1996)
Toyota Lite/Townace Noah,V

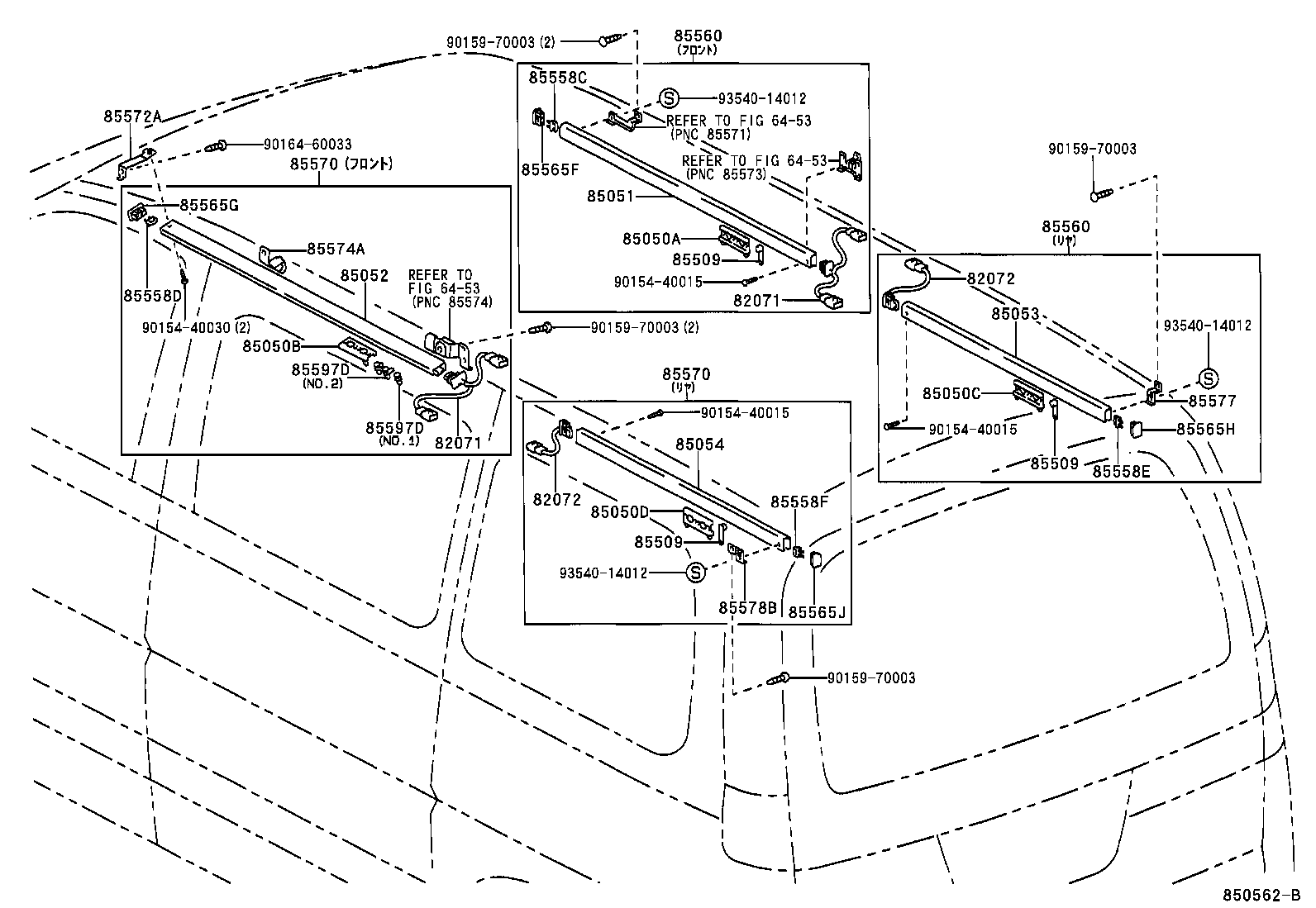

ILLUST NO. 1 OF 2(9610- )KR42..CBR ; (9610- )KR42..CBU..EFI; (9610- )CR4#,5#,KR41,SR40,50
ﾌﾛﾝﾄ,ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82071 - WIRE SUB-ASSY, AUTO CURTAIN, NO.1 | ||||
| 82071-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,右側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82071-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,左側 |
1 | ||
| 82071-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,右側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,左側 |
1 | ||
| 82071-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82071 - WIRE SUB-ASSY, AUTO CURTAIN, NO.1 | ||||
| 82071-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,右側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82071-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,左側 |
1 | ||
| 82071-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,右側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82071-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,左側 |
1 | ||
| 82071-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82072 - WIRE SUB-ASSY, AUTO CURTAIN, NO.2 | ||||
| 82072-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,右側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,左側 |
1 | ||
| 82072-28030B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82072-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,右側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,左側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82072-28030B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82072 - WIRE SUB-ASSY, AUTO CURTAIN, NO.2 | ||||
| 82072-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,右側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,左側 |
1 | ||
| 82072-28030B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,右側 |
1 | ||
| 82072-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,右側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,左側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82072-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,左側 |
1 | ||
| 82072-28030B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,右側 |
1 | ||
| 85050A - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.1 | ||||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
1 | ||
| 85050B - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.2 | ||||
| 85050-28040 |
CR40..E;CR50,SR40,50..E,V |
1 | ||
| 85050-28040A0 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
1 | ||
| 85050-28040A0 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
1 | ||
| 85050-28040A0 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
1 | ||
| 85050-28040A0 |
CR40,50,SR40,50..V IVORY,TRIM1# |
1 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
1 | ||
| 85050D - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.2 | ||||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
1 | ||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
1 | ||
| 85051 - RAIL SUB-ASSY, AUTO CURTAIN, FRONT RH | ||||
| 85051-28030B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85051-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85051-28030B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85051-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85052 - RAIL SUB-ASSY, AUTO CURTAIN, FRONT LH | ||||
| 85052-28040B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85052-28040B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85052-28040B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85052-28040B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85053 - RAIL SUB-ASSY, AUTO CURTAIN, REAR RH | ||||
| 85053-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85053-28030B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85053-28030B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85053-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85054 - RAIL SUB-ASSY, AUTO CURTAIN, REAR LH | ||||
| 85054-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85054-28030B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85054-28030B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85054-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85558C - STOPPER, AUTO CURTAIN COIL, FRONT NO.1 RH | ||||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85558D - STOPPER, AUTO CURTAIN COIL, FRONT NO.1 LH | ||||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85558E - STOPPER, AUTO CURTAIN COIL, FRONT NO.2 RH | ||||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85558F - STOPPER, AUTO CURTAIN COIL, FRONT NO.2 LH | ||||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85560 - MOTER AND RAIL ASSY, POWER CURTAIN, RH | ||||
| 85560-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85580-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85580-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85560-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85560-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85560-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85580-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85580-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85560 - MOTER AND RAIL ASSY, POWER CURTAIN, RH | ||||
| 85560-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85580-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85580-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85560-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85560-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85560-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85580-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85580-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85565F - END, AUTO CURTAIN RAIL, FRONT, NO.1 RH | ||||
| 85565-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85565-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1# |
1 | ||
| 85565-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 85565-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6# |
1 | ||
| 85565G - END, AUTO CURTAIN RAIL, FRONT, NO.1 LH | ||||
| 85567-28050B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1# |
1 | ||
| 85567-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6# |
1 | ||
| 85567-28050B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 85567-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85565H - END, AUTO CURTAIN RAIL, FRONT, NO.2 RH | ||||
| 85565-28030B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 85565-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6# |
1 | ||
| 85565-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85565-28030B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1# |
1 | ||
| 85565J - END, AUTO CURTAIN RAIL, FRONT, NO.2 LH | ||||
| 85565-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6# |
1 | ||
| 85565-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 85565-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85565-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1# |
1 | ||
| 85570 - MOTER AND RAIL ASSY, POWER CURTAIN, LH | ||||
| 85590-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85590-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85590-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85570-28060B3 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85570-28060B4 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85570-28060B4 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85570-28060B3 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85590-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85570 - MOTER AND RAIL ASSY, POWER CURTAIN, LH | ||||
| 85590-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85590-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾘﾔ |
1 | ||
| 85590-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85570-28060B3 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85570-28060B4 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85570-28060B4 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 85570-28060B3 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾌﾛﾝﾄ |
1 | ||
| 85590-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6#,ﾘﾔ |
1 | ||
| 85572A - BRACKET, AUTO CURTAIN RAIL, NO.1 LH | ||||
| 85572-28020 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85572-28020 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85574A - BRACKET,AUTO CURTAIN RAIL, NO.2 LH | ||||
| 85574-28050B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85574-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85574-28050B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85574-28050B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85577 - BRACKET, AUTO CURTAIN RAIL, NO.4 RH | ||||
| 85577-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85577-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85578B - BRACKET, AUTO CURTAIN RAIL, NO.4 LH | ||||
| 85578-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85578-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85597D - RUNNER, AUTO CURTAIN, FRONT NO.1 LH | ||||
| 85597-26040 |
CR40,50,SR40,50..E,Q,V NO.2 |
1 | ||
| 85597-26031 |
CR40,50,SR40,50..E,Q,S,V NO.1 |
9 | ||
| 85597-26040 |
CR40,50,SR40,50..E,Q,S,V NO.2 |
1 | ||
| 85597-26031 |
CR40,50,SR40,50..E,Q,V NO.1 |
9 | ||
| 85597D - RUNNER, AUTO CURTAIN, FRONT NO.1 LH | ||||
| 85597-26040 |
CR40,50,SR40,50..E,Q,V NO.2 |
1 | ||
| 85597-26031 |
CR40,50,SR40,50..E,Q,S,V NO.1 |
9 | ||
| 85597-26040 |
CR40,50,SR40,50..E,Q,S,V NO.2 |
1 | ||
| 85597-26031 |
CR40,50,SR40,50..E,Q,V NO.1 |
9 | ||
| Common parts | ||||
| 90154-40015 | ||||
| 90154-40030 | ||||
| 90159-70003 | ||||
| 90164-60033 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 6453 | ||||

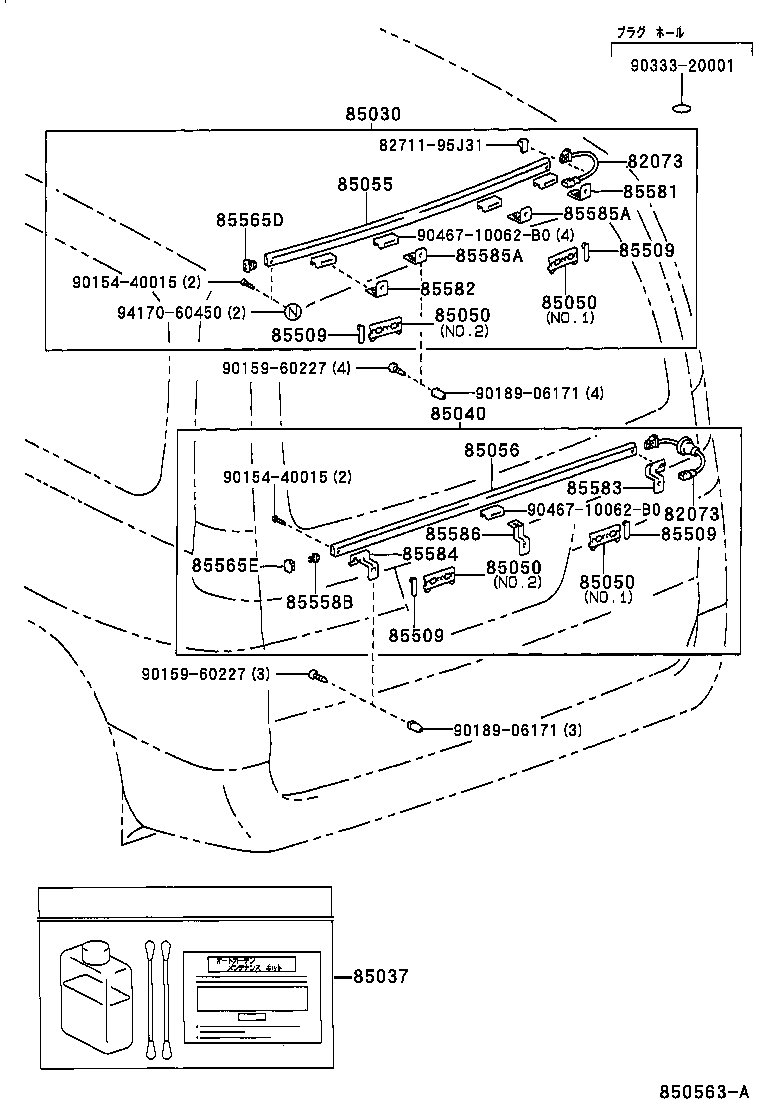

ILLUST NO. 2 OF 2(9610- )KR42..CBR ; (9610- )KR42..CBU..EFI; (9610- )CR4#,5#,KR41,SR40,50
ﾊﾞﾂｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82073 - WIRE SUB-ASSY, AUTO CURTAIN, NO.3 | ||||
| 82073-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,上側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,下側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,下側 |
1 | ||
| 82073-28030B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,上側 |
1 | ||
| 82073-28030B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,上側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,下側 |
1 | ||
| 82073-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,上側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,下側 |
1 | ||
| 82073 - WIRE SUB-ASSY, AUTO CURTAIN, NO.3 | ||||
| 82073-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,上側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,下側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,下側 |
1 | ||
| 82073-28030B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,上側 |
1 | ||
| 82073-28030B0 |
CR40,50,SR40,50..V LT.GRAY,TRIM1#,上側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1#,下側 |
1 | ||
| 82073-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6#,上側 |
1 | ||
| 82073-28040B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM1#,6#,下側 |
1 | ||
| 85030 - MOTOR & RAIL ASSY, AUTOMATIC CURTAIN, UPPER | ||||
| 85030-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85030-28060B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85030-28060B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85030-28060B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85037 - PARTS SET, AUTO CURTAIN | ||||
| 85037-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85037-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85040 - MOTOR & RAIL ASSY, AUTOMATIC CURTAIN, LOWER | ||||
| 85040-28050B3 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85040-28050B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85040-28050B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85040-28050B3 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85050 - COIL ASSY, AUTO CURTAIN MOTOR | ||||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J01 |
CR40..E;CR50,SR40,50..E,V NO.2 |
2 | ||
| 85050-95J0108 |
CR40..E,Q,V;CR50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.2 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050 - COIL ASSY, AUTO CURTAIN MOTOR | ||||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J01 |
CR40..E;CR50,SR40,50..E,V NO.2 |
2 | ||
| 85050-95J0108 |
CR40..E,Q,V;CR50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.2 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050 - COIL ASSY, AUTO CURTAIN MOTOR | ||||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J01 |
CR40..E;CR50,SR40,50..E,V NO.2 |
2 | ||
| 85050-95J0108 |
CR40..E,Q,V;CR50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.2 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050 - COIL ASSY, AUTO CURTAIN MOTOR | ||||
| 85050-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..V IVORY,TRIM1#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.1 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J01 |
CR40..E;CR50,SR40,50..E,V NO.2 |
2 | ||
| 85050-95J0108 |
CR40..E,Q,V;CR50,SR40,50..E,Q IVORY,TRIM1#,6#,NO.2 |
2 | ||
| 85050-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.1 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..E,Q IVORY,TRIM6#,NO.2 |
2 | ||
| 85050-95J0108 |
CR40,50,SR40,50..S,V IVORY,TRIM1#,NO.2 |
2 | ||
| 85055 - RAIL SUB-ASSY, AUTO CURTAIN BACK, UPPER | ||||
| 85055-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85055-28030B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85055-28030B0 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85055-28030B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 85056 - RAIL SUB-ASSY, AUTO CURTAIN BACK, LOWER | ||||
| 85056-28030B2 |
CR40,50,SR40,50..E,Q GRAY,TRIM6# |
1 | ||
| 85056-28030B0 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 85056-28030B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 85056-28030B0 |
CR40,50,SR40,50..E,Q LT.GRAY,TRIM6# |
1 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85509 - RUNNER SUB-ASSY, AUTO CURTAIN | ||||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..V IVORY,TRIM1# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..E,Q IVORY,TRIM1#,6# |
31 | ||
| 85509-95J0008 |
CR40,50,SR40,50..S,V IVORY,TRIM1# |
31 | ||
| 85558B - STOPPER, AUTO CURTAIN COIL, REAR LOWER | ||||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85558-95J00 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85565D - END, AUTO CURTAIN RAIL, BACK, UPPER | ||||
| 85565-26030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85565-26030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85565E - END, AUTO CURTAIN RAIL, BACK, LOWER | ||||
| 85565-26030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85565-26030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85581 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER RH | ||||
| 85581-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85581-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85582 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER LH | ||||
| 85582-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85582-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85583 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER RH | ||||
| 85583-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85583-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85584 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER LH | ||||
| 85584-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 85584-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85585A - BRACKET, AUTO CURTAIN RAIL, BACK, UPPER CENTER | ||||
| 85585-28030 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 85585-28030 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 85585A - BRACKET, AUTO CURTAIN RAIL, BACK, UPPER CENTER | ||||
| 85585-28030 |
CR40,50,SR40,50..E,Q,S,V |
2 | ||
| 85585-28030 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 85586 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER | ||||
| 85586-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 85586-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 82711-95J31 | ||||
| 90154-40015 | ||||
| 90159-60227 | ||||
| 90189-06171 | ||||
| 90333-20001 | ||||
| 90467-10062B0 | ||||
| 94170-60450 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
