SR50G-GRSVK (1996)
Toyota Lite/Townace Noah,V

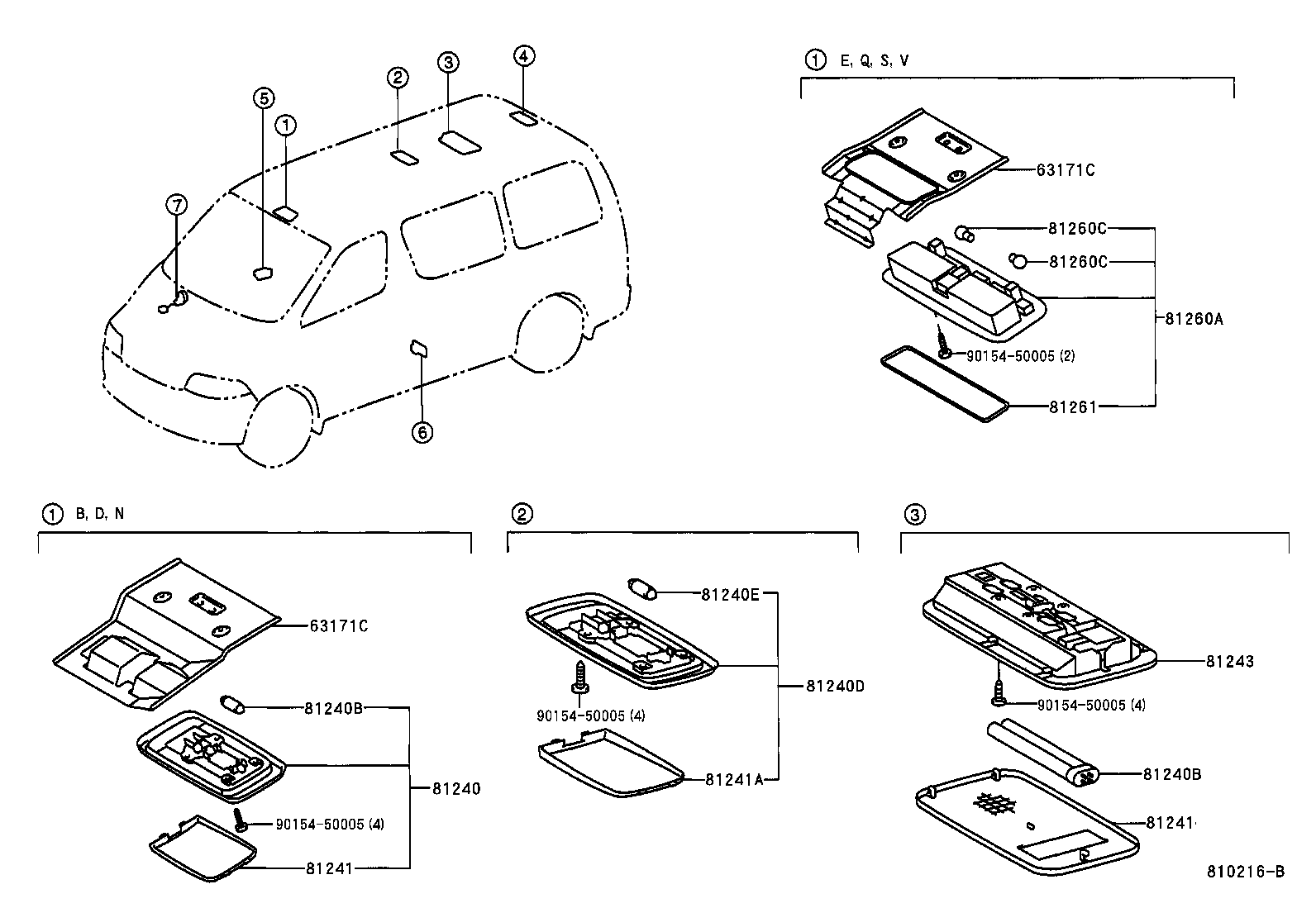

ILLUST NO. 1 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63171C - BRACKET, ROOM LAMP | ||||
| 63171-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 63171-28040 |
CR40,50,SR40,50..B,D |
1 | ||
| 63171-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 63171-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 63171C - BRACKET, ROOM LAMP | ||||
| 63171-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 63171-28040 |
CR40,50,SR40,50..B,D |
1 | ||
| 63171-28040 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 63171-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-12060P1 |
CR40,50,SR40,50..B,D LT.GRAY,TRIM1# |
1 | ||
| 81240-12060B2 |
CR4#,5#,KR4#,SR40,50..B,D,N MOON MIST,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 8W |
1 | ||
| 90981-14011 |
CR40,50,SR40,50..B,D 12V 8W |
1 | ||
| 90981-11052 |
CR40,50,SR40,50..E,Q,S,V 100V 13W |
1 | ||
| 90981-11052 |
CR40,50,SR40,50..E,Q,V 100V 13W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 8W |
1 | ||
| 90981-14011 |
CR40,50,SR40,50..B,D 12V 8W |
1 | ||
| 90981-11052 |
CR40,50,SR40,50..E,Q,S,V 100V 13W |
1 | ||
| 90981-11052 |
CR40,50,SR40,50..E,Q,V 100V 13W |
1 | ||
| 81240D - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-12060B2 |
CR4#,5#,KR4#,SR40,50..B,D,N MOON MIST,TRIM1# |
1 | ||
| 81240-12060P1 |
CR40,50,SR40,50..B,D LT.GRAY,TRIM1# |
1 | ||
| 81240E - BULB, ROOM LAMP, NO.2 | ||||
| 90981-14011 |
CR40,50,SR40,50..B,D 12V 8W |
1 | ||
| 90981-14011 |
CR4#,5#,KR4#,SR40,50..B,D,N 12V 8W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
CR40,50,SR40,50..B,D |
1 | ||
| 81241-12020 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81241-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 81241-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
CR40,50,SR40,50..B,D |
1 | ||
| 81241-12020 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81241-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 81241-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81241A - LENS, ROOM LAMP, NO.2 | ||||
| 81241-12020 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81241-12020 |
CR40,50,SR40,50..B,D |
1 | ||
| 81243 - BODY, ROOM LAMP, NO.1 | ||||
| 81243-28040B1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 81243-28040B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 81243-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 81243-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-14080B4 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 81260-14080G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 81260-14080G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 81260-14080B5 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CR40,50,SR40,50..E,Q,S,V 12V 8W |
2 | ||
| 90981-12005 |
CR40,50,SR40,50..E,Q,V 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CR40,50,SR40,50..E,Q,S,V 12V 8W |
2 | ||
| 90981-12005 |
CR40,50,SR40,50..E,Q,V 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-14080 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81261-14080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| Common parts | ||||
| 90154-50005 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45263A - RING, STEERING COLUMN, NO.1 | ||||
| 45263-28010 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-28030 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 81230-28030 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 81230-28030 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H) |
2 | ||
| 81230-28030 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
SR40,50..ATM..D 12V 3.8W,ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H) |
2 | ||
| 90981-11020 |
CR40,50,SR40,50..07S,08S 12V 3.8W |
2 | ||
| 90981-11020 |
CR40,50,SR40,50..07S,08S 12V 3.8W |
2 | ||
| 90981-11020 |
CR40,50,SR40,50..E,Q,V 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 81231-50010 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 81231-50010 |
SR40,50..ATM..D ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H) |
2 | ||
| 81231-50010 |
CR40,50,SR40,50..07S,08S |
2 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-12060G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 81240-12060B2 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 81240-12060P1 |
CR40,50,SR40,50..S,V LT.GRAY,TRIM1# |
1 | ||
| 81240-12060G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 90981-14011 |
CR40,50,SR40,50..E,Q,S,V 12V 8W |
1 | ||
| 90981-14011 |
CR40,50,SR40,50..E,Q,V 12V 8W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-12020 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 81241-12020 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81380D - LAMP ASSY, STEP | ||||
| 81250-14030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 81250-14030B1 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 81250-14030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 81250-14030B1 |
CR40,50,SR40,50..E,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 81380E - BULB (FOR STEP LAMP) | ||||
| 99132-13050 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 99132-13050 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81381 - LENS, STEP LAMP | ||||
| 81251-14030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81251-14030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-32051 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 81870-28030 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
CR40,50,SR40,50..E,Q,S,V 14V 1.4W |
1 | ||
| 90981-11018 |
CR40,50,SR40,50..E,Q,V 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81870F - CAP, KEY CYLINDER LAMP BULB | ||||
| 84998-10070 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 84998-10070 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| Common parts | ||||
| 90154-50005 | ||||
| 90463-12014 | ||||
| 90467-06132 | ||||
| 93510-44016 | ||||
