SR50G-GRSEK (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Nov 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

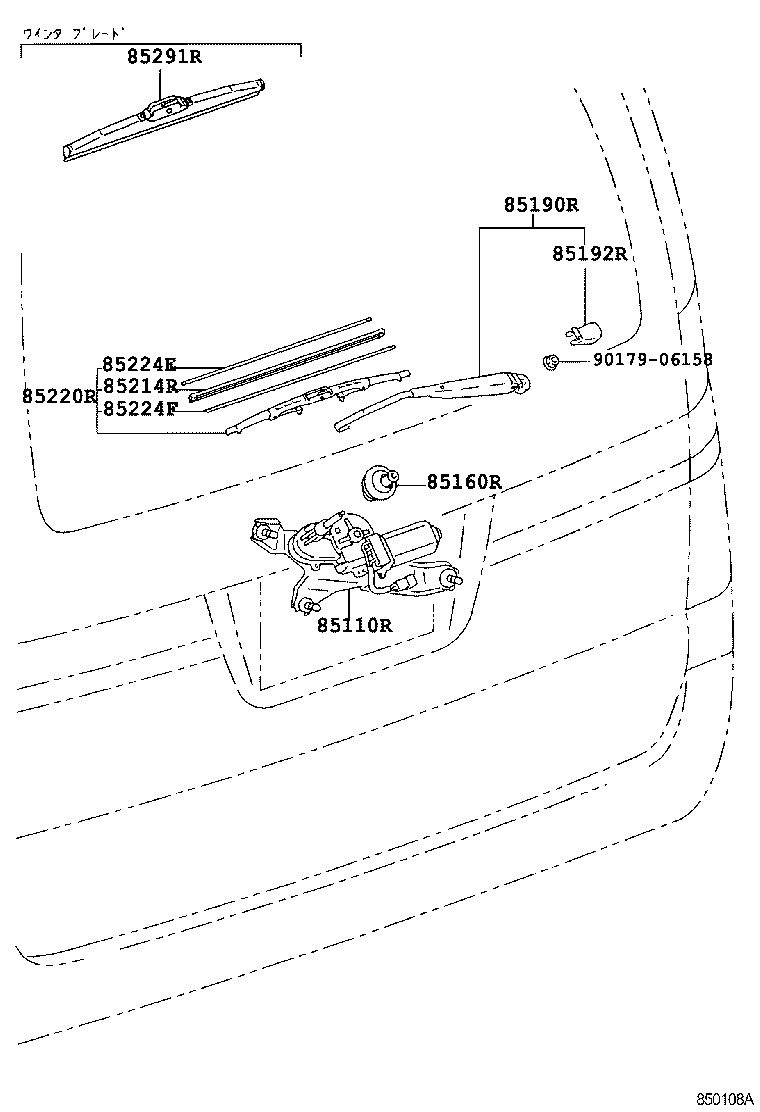

Click highlighted areas on diagram

diagram 85110R 85160R 85190R 85192R 85214R 85220R 85224E 85224F 85291R 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-28060

CR4#,5#,KR4#,SR40,50..(B,D,N)..CBU

 1
85130-28050

CR40,50,SR40,50..E,Q,S,V

 1
85130-28050

CR40,50,SR40,50..E,Q,V

 1
85130-28060

CR40,50,SR40,50..B,D

 1
85160R - LINK ASSY, REAR WIPER
85134-28060

CR4#,5#,KR4#,SR40,50..(B,D,N)..CBU

 1
85134-28050

CR40,50,SR40,50..E,Q,V

 1
85134-28060

CR40,50,SR40,50..B,D

 1
85134-28050

CR40,50,SR40,50..E,Q,S,V

 1
85190R - ARM ASSY, REAR WIPER
85241-28060

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
85241-28060

CR40,50,SR40,50

 1
85192R - COVER, REAR WIPER ARM
85192-13060

CR40,50,SR40,50

 1
85192-13060

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
85214R - RUBBER, REAR WIPER
85214-10100

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
85214-10100

CR40,50,SR40,50

 1
85220R - BLADE ASSY, REAR WIPER
85242-60050

CR40,50,SR40,50

 1
85242-60050

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-10200

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
85224-10200

CR40,50,SR40,50

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-10200

CR40,50,SR40,50

 1
85224-10200

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
85291R - BLADE,REAR WIPER, WINTER
85291-44080

CR40,50,SR40,50

 1
85291-60060

CR41,51,KR42..CBU;CR40,50,KR41,SR40,50

 1
Common parts
90179-06158
