SR50G-GRSDK (1996)
Toyota Lite/Townace Noah,V
ILLUST NO. 1 OF 2(9611-9812)CR40,50,KR4#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| Common parts | ||||
| 90467-22011 | ||||
| 90959-01540 | ||||
| 91651-F0616 | ||||
| 96134-42100 | ||||

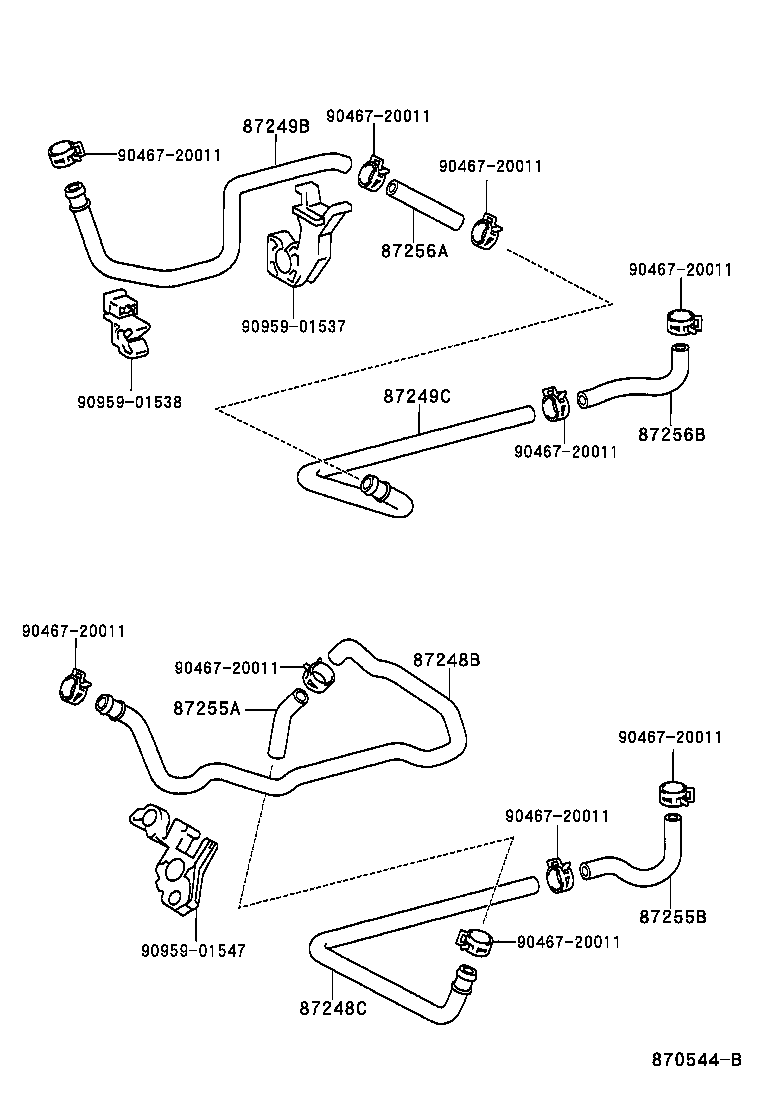

ILLUST NO. 2 OF 2(9610-9812)CR40,50,SR40,50
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28100 |
SR40,50..B |
1 | ||
| 87248-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28110 |
SR40,50..B |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-28770 |
SR40,50..B |
1 | ||
| 87245-28730 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28730 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-28740 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28740 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-28710 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28760 |
SR40,50..B |
1 | ||
| 87245-28710 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-28720 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28720 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 90467-20011 | ||||
| 90959-01537 | ||||
| 90959-01538 | ||||
| 90959-01547 | ||||

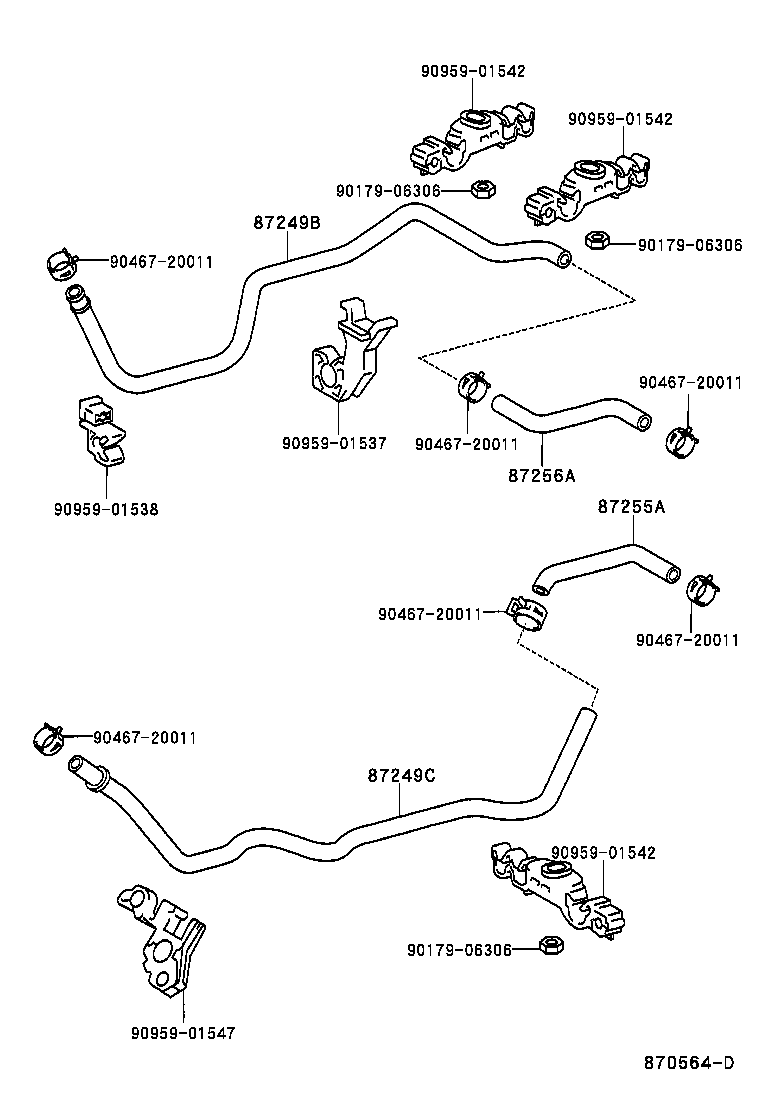

ILLUST NO. 2 OF 2(9611-9812)CR4#,5#,SR40,50
ﾘﾔ(ﾘﾔﾋｰﾀﾕﾆｯﾄ:ﾕｶｵｷｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28100 |
SR40,50..B |
1 | ||
| 87248-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28110 |
SR40,50..B |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-28770 |
SR40,50..B |
1 | ||
| 87245-28730 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28730 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-28710 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28760 |
SR40,50..B |
1 | ||
| 87245-28710 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 90179-06306 | ||||
| 90467-20011 | ||||
| 90959-01537 | ||||
| 90959-01538 | ||||
| 90959-01542 | ||||
| 90959-01547 | ||||

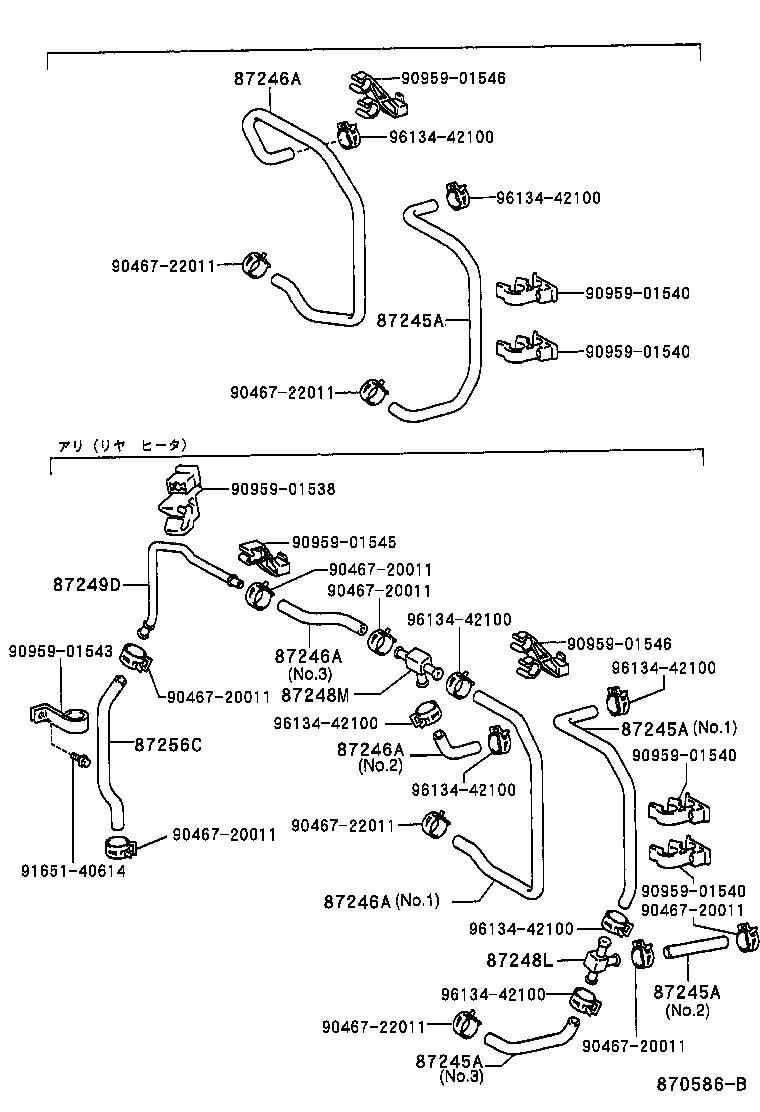

ILLUST NO. 1 OF 2(9610-9812)CR4#,5#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87248L - PIPE, HEATER WATER, L | ||||
| 87248-60460 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87248-60460 |
CR40,50,SR40,50 |
1 | ||
| 87248M - PIPE, HEATER WATER, M | ||||
| 87248-28040 |
CR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-28040 |
CR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-28090 |
CR40,50,SR40,50 |
1 | ||
| 87248-28090 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-28750 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87245-28750 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90467-20011 | ||||
| 90467-22011 | ||||
| 90959-01538 | ||||
| 90959-01540 | ||||
| 90959-01543 | ||||
| 90959-01545 | ||||
| 90959-01546 | ||||
| 91651-40614 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 2(9610-9812)SR40,50
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-28590 |
SR40,50 |
1 | ||
| 87245-28591 |
SR40,50 |
1 | ||
| 87245-28591 |
SR40,50 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87248L - PIPE, HEATER WATER, L | ||||
| 87248-60460 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87248-60460 |
CR40,50,SR40,50 |
1 | ||
| 87248M - PIPE, HEATER WATER, M | ||||
| 87248-28040 |
CR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-28040 |
CR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-28090 |
CR40,50,SR40,50 |
1 | ||
| 87248-28090 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-28750 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87245-28750 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90467-20011 | ||||
| 90467-22011 | ||||
| 90959-01538 | ||||
| 90959-01541 | ||||
| 90959-01543 | ||||
| 90959-01545 | ||||
| 91651-40614 | ||||
| 96134-42100 | ||||

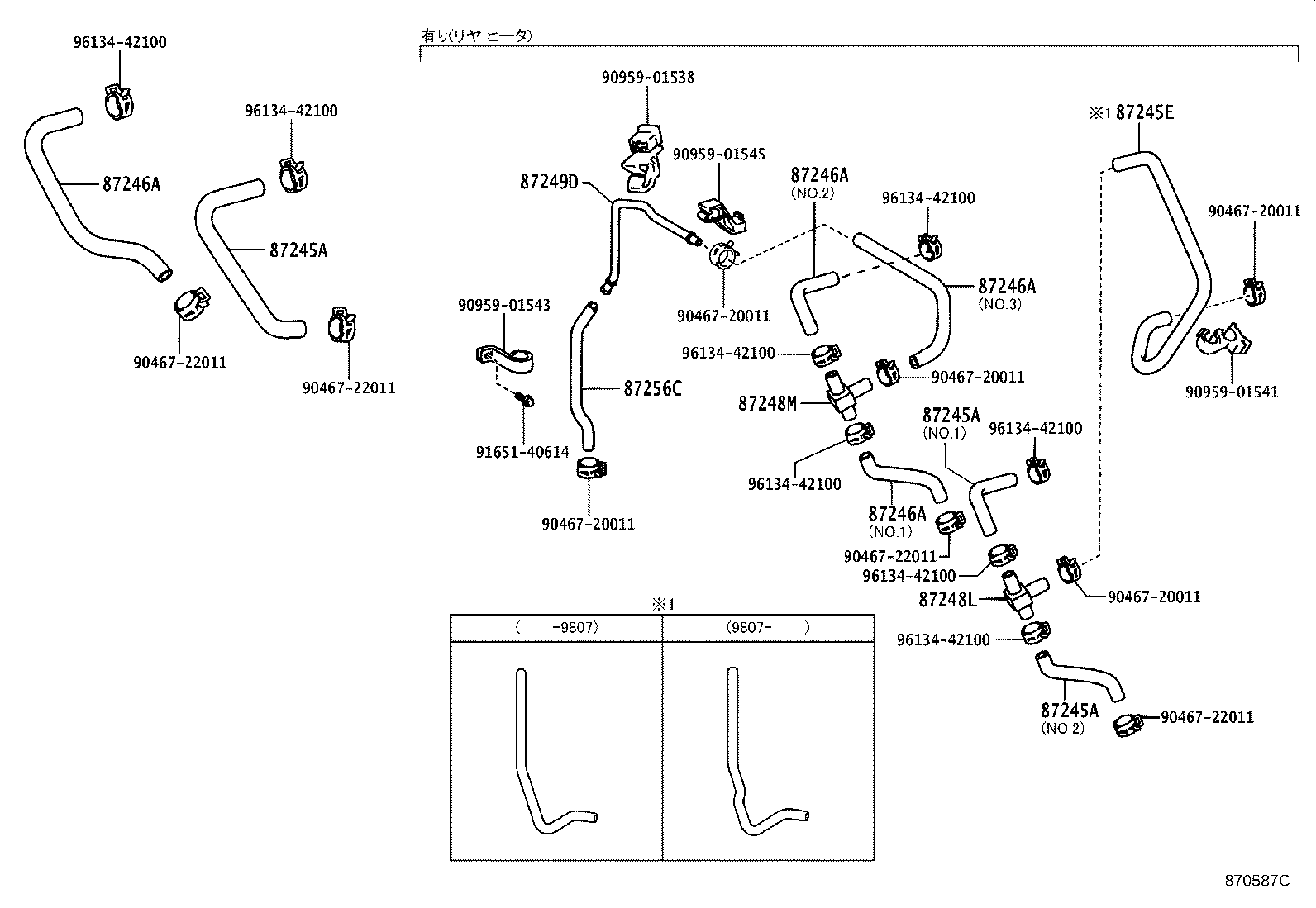

ILLUST NO. 1 OF 2(9812- )CR4#,5#
ﾌﾛﾝﾄ---ｱﾘ(ﾘﾔ ﾋ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87248L - PIPE, HEATER WATER, L | ||||
| 87248-60460 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87248-60460 |
CR40,50,SR40,50 |
1 | ||
| 87248M - PIPE, HEATER WATER, M | ||||
| 87248-28040 |
CR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-28040 |
CR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-08030 |
CR40,50 |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-28090 |
CR40,50,SR40,50 |
1 | ||
| 87248-28090 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-28750 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87245-28750 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 89639-28070 | ||||
| 89639-28080 | ||||
| 89639-28130 | ||||
| 89639-28140 | ||||
| 90467-19022 | ||||
| 90467-22011 | ||||
| 90959-01543 | ||||
| 91651-40614 | ||||
| 96134-42100 | ||||
ILLUST NO. 1 OF 2(9812- )SR40,50
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-28650 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28630 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28640 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28670 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28560 |
SR40,50..B |
1 | ||
| 87245-28700 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-28590 |
SR40,50 |
1 | ||
| 87245-28591 |
SR40,50 |
1 | ||
| 87245-28591 |
SR40,50 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-28600 |
CR40,50;CR41,51..(05S,06S)..CBU NO.1 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28840 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.3 |
1 | ||
| 87245-28620 |
CR40,50;CR41,51..(05S,06S)..CBU NO.3 |
1 | ||
| 87245-28820 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.1 |
1 | ||
| 87245-28830 |
SR40,50 ｱﾘ(ﾘﾔ ﾋ-ﾀ),NO.2 |
1 | ||
| 87245-28550 |
SR40,50..B |
1 | ||
| 87245-28610 |
CR40,50;CR41,51..(05S,06S)..CBU NO.2 |
1 | ||
| 87248L - PIPE, HEATER WATER, L | ||||
| 87248-60460 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87248-60460 |
CR40,50,SR40,50 |
1 | ||
| 87248M - PIPE, HEATER WATER, M | ||||
| 87248-28040 |
CR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-60460 |
SR40,50 |
1 | ||
| 87248-28040 |
CR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-28090 |
CR40,50,SR40,50 |
1 | ||
| 87248-28090 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-28750 |
CR40,50,SR40,50;CR41,51..(05S,06S)..CBU |
1 | ||
| 87245-28750 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 89639-28090 | ||||
| 89639-28130 | ||||
| 89639-28140 | ||||
| 90467-19022 | ||||
| 90467-22011 | ||||
| 90959-01543 | ||||
| 91651-40614 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||

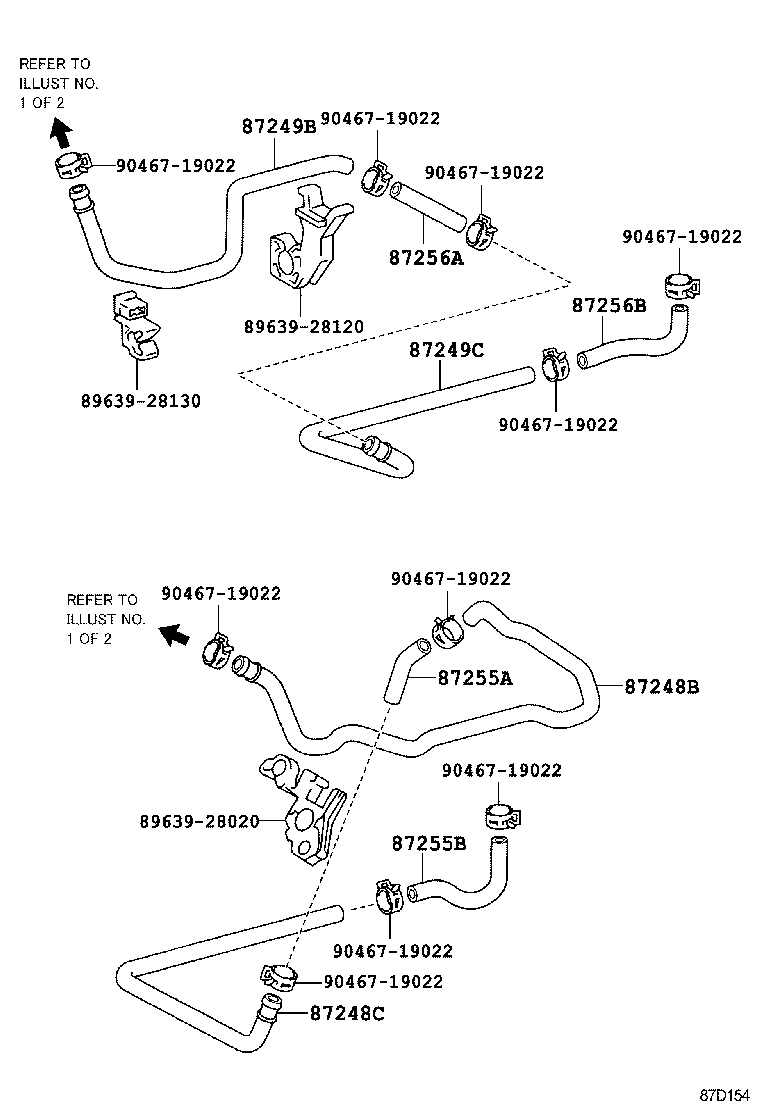

ILLUST NO. 2 OF 2(9812- )07S,08S
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28100 |
SR40,50..B |
1 | ||
| 87248-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87248-28110 |
SR40,50..B |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-28770 |
SR40,50..B |
1 | ||
| 87245-28730 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28730 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-28740 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28740 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-28710 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28760 |
SR40,50..B |
1 | ||
| 87245-28710 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-28720 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87245-28720 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 89639-28020 | ||||
| 89639-28120 | ||||
| 89639-28130 | ||||
| 90467-19022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
